UBS | 20 BBL Standard Jacketed Unitank Conical Fermenter

Please contact us for shipping rates and lead times

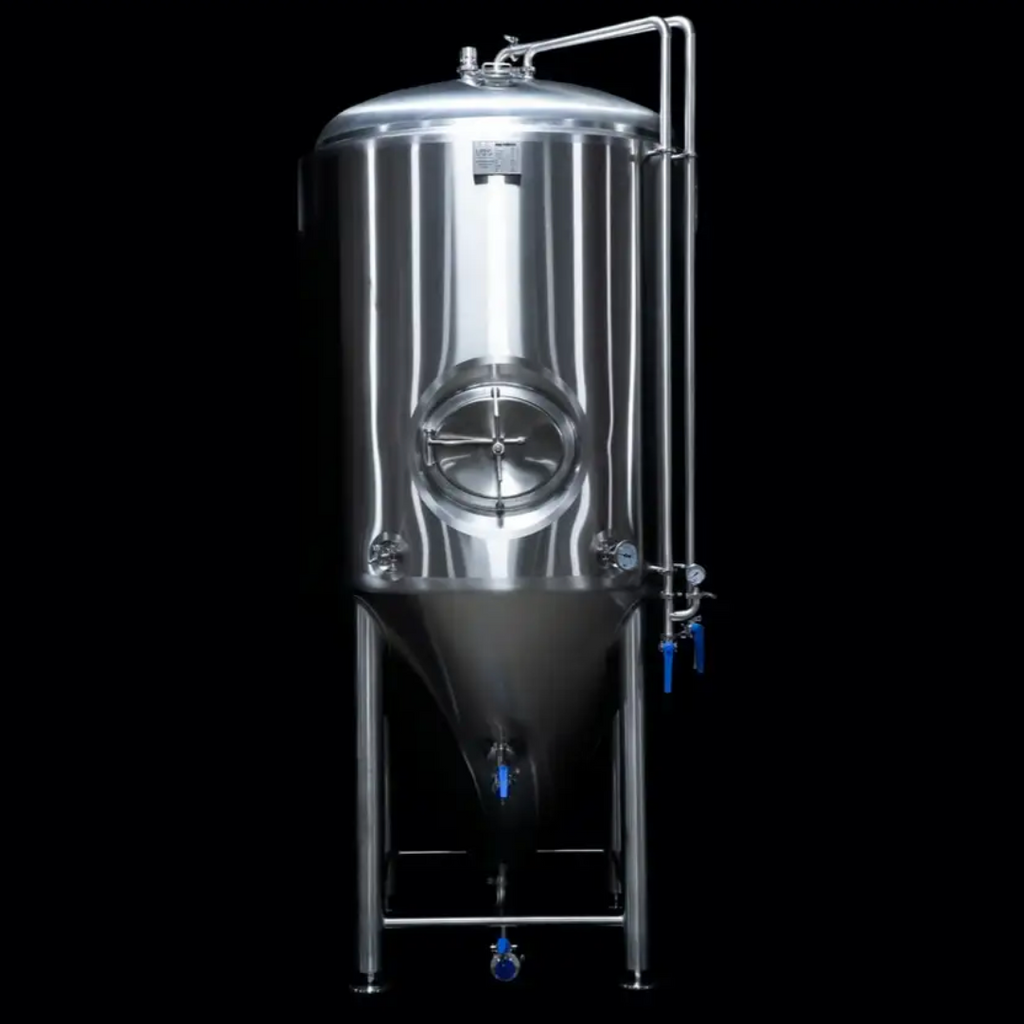

These 20bbl conical fermenter allows you to ferment and carbonate all within the same stainless vessel. It is insulated and dual-glycol jacketed for maximum control over your fermentation. Having two glycol inlets/outlets allows you to cool 20bbl, 15bbl, or even 10bbl batches without freezing the top jacket. All unitanks come with a 4" dry-hop port, a carb stone port on the cone, a liquid-level sight glass, and a horizontal racking arm to avoid pooling during CIP.
Designed with quality and precision in mind, these tanks are crafted to elevate your brewing experience. Whether you're a professional brewer or a passionate homebrewer, these tanks offer durability, reliability, and optimal functionality.
Constructed with premium materials, these tanks boast superior insulation to maintain ideal temperature control for fermentation and storage. With various sizes and configurations to choose from, you can find the perfect tank to suit your specific brewing needs.
Equipped with advanced features such as temperature gauges, pressure relief valves, and easy-to-use fittings, our tanks offer convenience and efficiency throughout the brewing process. From fermentation to maturation, these tanks ensure the preservation of flavour and quality, allowing you to produce exceptional brews every time.


































Height

 11' ⅝""


Inside Polish

2B




Diameter


411"


Dimple Jacket Thickness

1.5 mm


Weight
1,400 lbs

Outside Shell Thickness

2 mm


Conical Angle

60°


Outside Polish

#4


Maximum Capacity
23.2 bbl
Insulation Thickness
75 mm


Inside Shell Thickness
3 mm
Insulation Material
Polyurethane
































Specs


1.5" CIP Arm
1.5" Blow-Off Arm
(2) 1.5" Front Ports
1.5" Carb Stone Port
3" DIN x 1.5" TC Racking arm
4" Dry-Hop Port
1.5" Discharge Port
2" PRV Port
Dual Glycol Jacketed


Includes:

(4) 1.5" Butterfly Valves
(1) Knob-Style Sample Valve
(1) Temperature Gauge
(1) 2" 15psi PRV

(1) 4" Cap with Handle
(1) 0-30psi Pressure Gauge
All of the Necessary Heavy Duty Tri-Clamps and EPDM Gaskets
