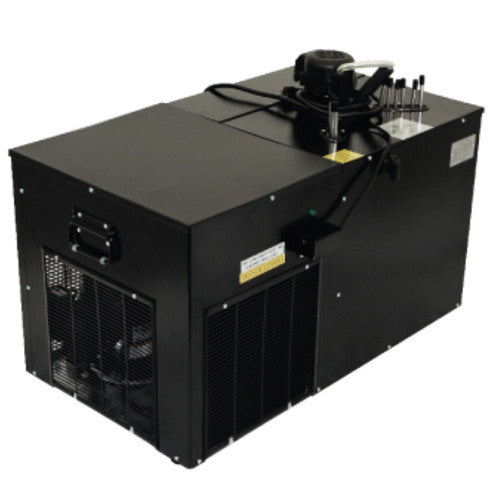

UBC Tayfun | Flash Beer Chiller, 6 Lines with Manual Thermostat (T160F-1/2T6)

Flat rate shipping click HERE
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 6 different beverages at once.
DESCRIPTION

Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model T160F-1/2T6 has 6 product lines, which means you can cool up to 6 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 6 x 58' stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES













Capacity: from 1 to 6 product lines
Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
Cooling is achieved via running the product lines through 58’ stainless steel coils covered with ice-cold water
Icebank capacity: 53 lbs
Great for commercial use at bars, restaurants, and sports venues



SPECIFICATIONS










Part Number
T160F-1/2T6


Maximum Distance, Ft
25'


Capacity-Compressor (evap 20F), BTU/hr
3100


Capacity-Ice Bank, BTU/hr
7500


Ice Bank, Lbs
53


Dedicated Circuit, Amp
15


Voltage, Volt/Hz
115/60


Power Consumption, Watt
800


Compressor Power, HP
1/2hp


Thermostat, Type
Manual


Number of Product Lines, Coils
6


Coil Diameter, ID-OD, In
1/4" - 5/16"


Coil Length (total), Ft
350


Pump Type, Part Number
FloJet SPC42


Pump Flow Rate, Gal/Hr (water)
240


Refrigerant, Type
R134a


Dimensions - WxDxH, In
32x19x23


Weight Net/Gross lbs
125/136
