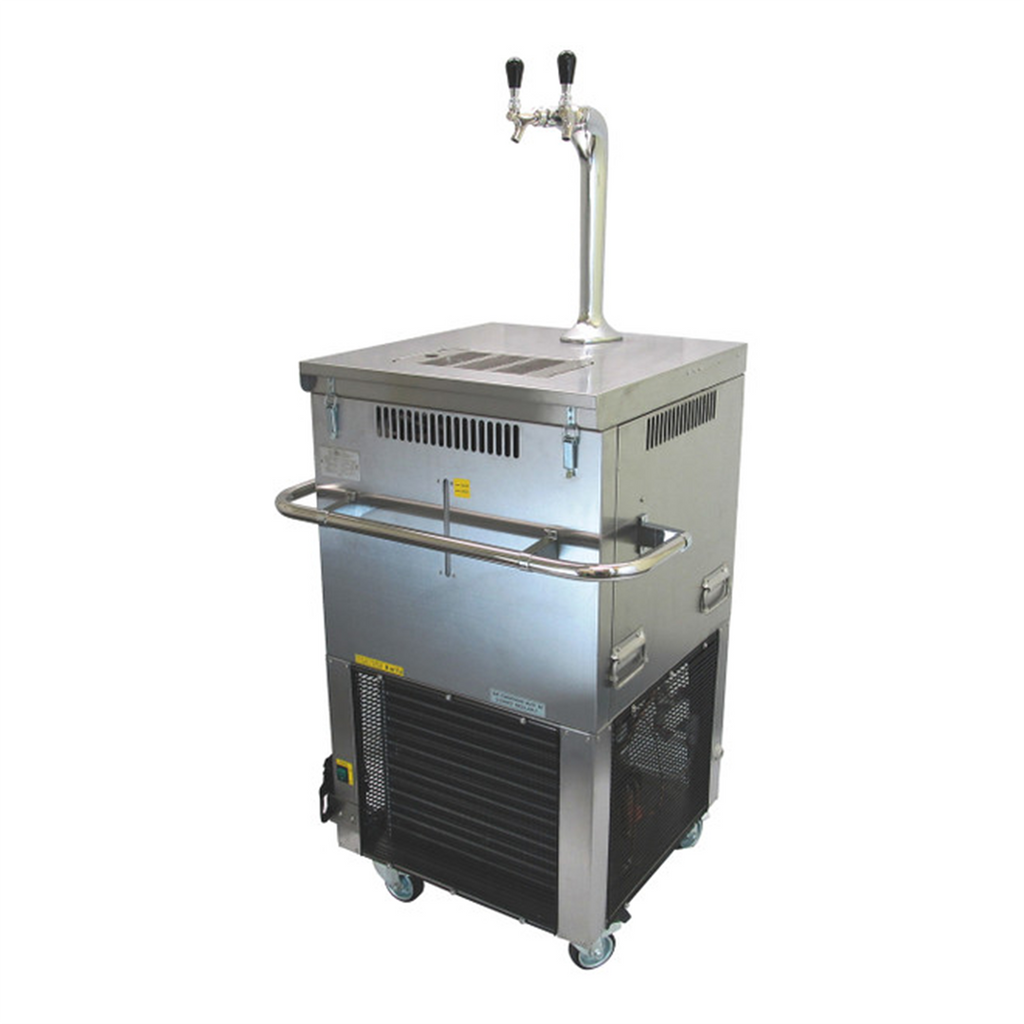

UBC Tayfun | Flash Beer Chiller, 4 Lines with Manual Thermostat (V-200EX2)

Flat rate shipping click HERE
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 4 different beverages at once.
DESCRIPTION

Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model V-200EX2 has 4 product lines, which means you can cool up to 4 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES














Capacity: from 1 to 4 product lines
Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
Cooling is achieved via running the product lines through stainless steel coils covered with ice-cold water
Great for commercial use at bars, restaurants, and sports venues




SPECIFICATIONS










Part Number

V200EX-3/4T2


Operating amperage (A)
11.2


Outlet temperature (°F)
32-46


Operating Ambient Temperature (ºF)
60-90


Plug Type
NEMA 5-15P


Dedicated Circuit (A)
15



Voltage/Hz (V/Hz)
115/60


Compressor Power (hp)
1/2 +


Capacity (BTU/h), Evaporator @ 20ºF
5700


Capacity (BTU/h)
10500


Number of Product Lines, Coils
4


Coil Diameter (in)
5/16


Refrigerant
R134A


Dimensions WxDxH (in)
27.55 x 24.5 x 40.8


Weight Gross/Net (lbs)
150/140


Power Cord Length (ft)
6
