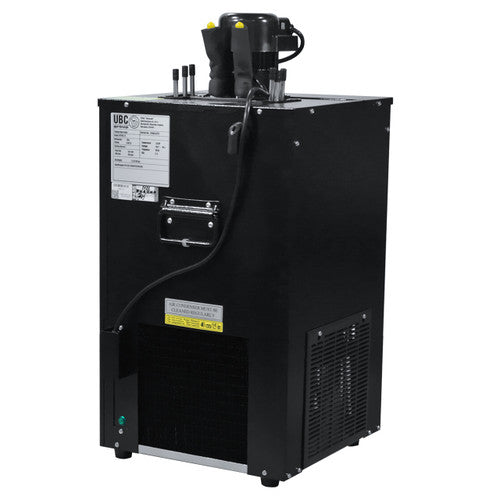

UBC Tayfun | Flash Beer Chiller, 3 Lines with Manual Thermostat (T75F-1/4T3)

Flat rate shipping click HERE
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 3 different beverages at once.
DESCRIPTION

Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model T75F-1/4T3 has 3 product lines, which means you can cool up to 3 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 3 x 40' stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES













Capacity: from 1 to 3 product lines
Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
Cooling is achieved via running the product lines through 75’ stainless steel coils covered with ice-cold water
Icebank capacity: 22 lbs
Great for commercial use at bars, restaurants, and sports venues



SPECIFICATIONS










Part Number
T75F-1/4T3


Maximum Distance, ft
25'


Capacity (evap 20F), BTU/hr
1900


Ice Bank, lbs
22


Ice forming time (Tamb=75°F)
h 4.2


Dedicated Circuit, amp
15


Voltage/Hz
115/60


Compressor Power, hp
1/4hp


Thermostat Type
Manual


Number of Product Lines, Coils
3


Coil Diameter, ID-OD
1/4"-5/16"


Coil Length (total), ft.
120


Pump Type
FloJet SPC42


Refrigerant Type
R134a


Dimensions WxDxH, in
14x15x29


Weight Net/Gross Lbs.
75/84
