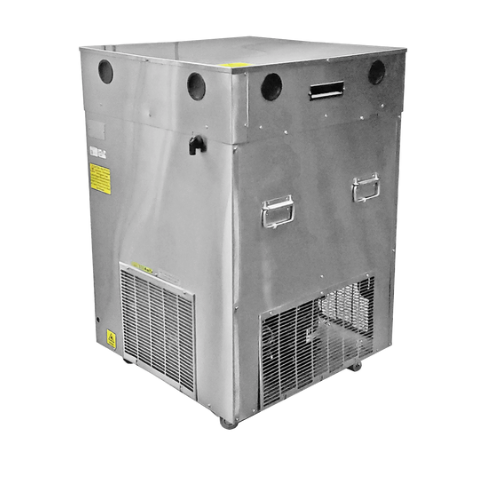

UBC Tayfun | Flash Beer Chiller, 3 Line Vertical with Manual Thermostat (V-400T3)

Flat rate shipping click HERE
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 3 different beverages at once.
DESCRIPTION

Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model V-400T3 has 3 product lines, which means you can cool up to 3 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 3 x 75’ stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES













Capacity: from 1 to 3 product lines
Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
Cooling is achieved via running the product lines through 75’ stainless steel coils covered with ice-cold water
Icebank capacity: 115 lbs
Great for commercial use at bars, restaurants, and sports venues



SPECIFICATIONS










Part Number
V-400T3


Operating amperage, A
16.7


Water Tank volume, Gal
31


Outlet temperature, °F
38÷46


Water Pump capacity,GPH/PSIG
250/10


Ice Bank, lbs
115.6


Ice forming time (Tamb=75°F)
5.5 h


Dedicated Circuit, amp
30


Voltage/Hz
115/60


Compressor Power, hp
2 x 1/3hp


Number of Product Lines, Coils
3


Coil's Diameter
Ø 8,0


Refrigerant
R290


Dimensions WxDxH, in
26.1x26.5x38.8
