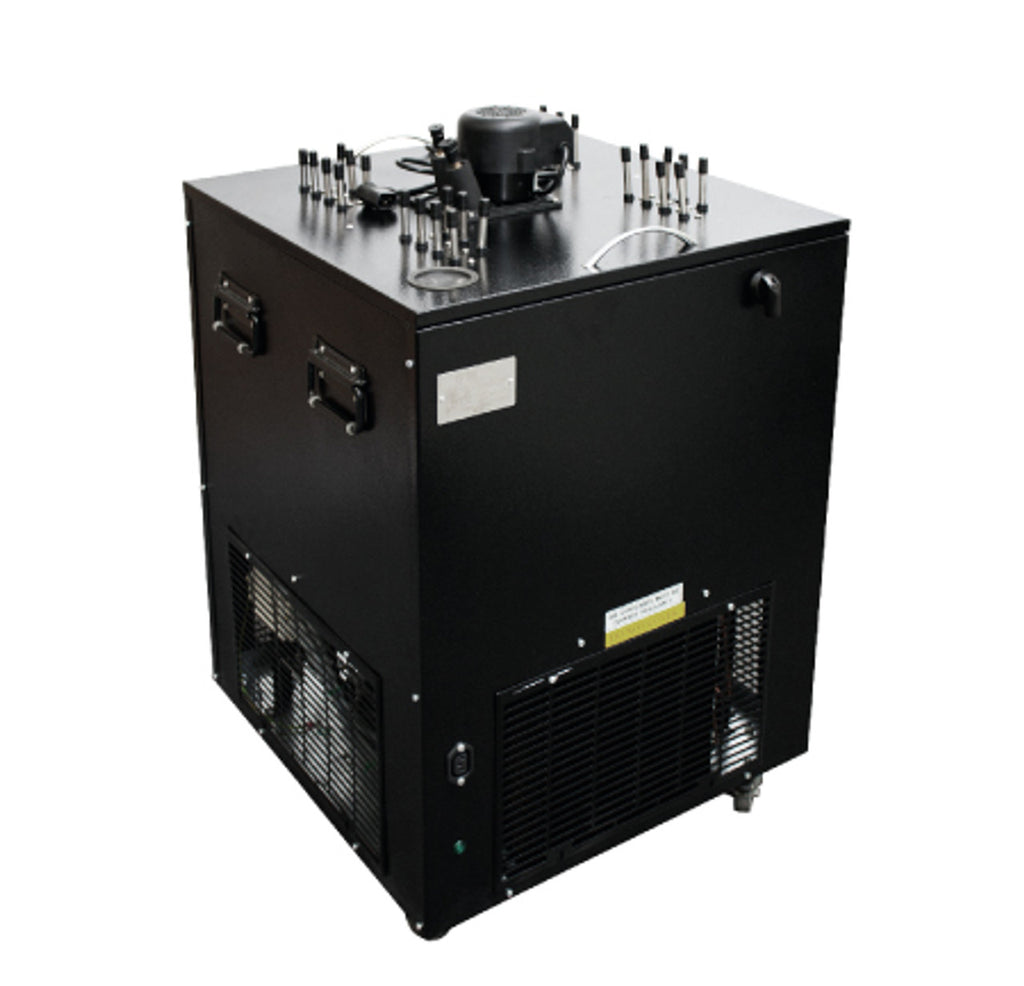

UBC Tayfun | Flash Beer Chiller, 14 Product Lines with Manual Thermostat (T220F)

Flat rate shipping click HERE
An ideal choice for cooling beer, wine, or other beverages in settings with low capacity for conventional refrigeration. Similar in concept to a jockey box, this unit will cool up to 14 different beverages at once.
DESCRIPTION

Flash chiller is an ideal choice for cooling draft beer, wine on tap, and other carbonated or non-carbonated beverages in places with limited possibilities for other types of refrigeration.
This particular model T220F has 14 product lines, which means you can cool up to 14 different beverages at once, which is quite handy for small bars and restaurants. Quick cooling is achieved thanks to the 14 x 30' stainless steel coils covered with ice-cold water.
Construction-wise, draft beer & wine keg cooling stations share some similarities with jockey boxes since they have an icebank with a stainless steel coil, which has to be covered with ice-cold water. The submerged agitator pump ensures quick and efficient cooling in any circumstances.
FEATURES













Capacity: from 1 to 14 product lines
Works with most beverages - alcoholic (beer or wine) and soft drinks (juice, seltzer, or water)
Cooling is achieved via running the product lines through 30' stainless steel coils covered with ice-cold water
Icebank capacity: 64 lbs
Great for commercial use at bars, restaurants, and sports venues



SPECIFICATIONS










Part Number
T220F-1/2T14


Capacity-Compressor (evap 20F), BTU/hr
4500


Capacity-Ice Bank, BTU/hr
9000



Ice Bank, Lbs
64


Dedicated Circuit, Amp
15


Voltage, Volt/Hz
115/60


Operating Amperage, A

11.5



Compressor Power, HP
1/2


Thermostat, Type
Manual


Number of Product Lines, Coils
14


Coil Diameter, ID-OD, In
1/4-5/16


Coil Length (total), Ft
420


Pump Type, Part Number
"Totton" SPC42


Refrigerant, Type
R134a


Dimensions - WxDxH, In
22.2x24.1x35


Weight Net/Gross lbs
154/141
