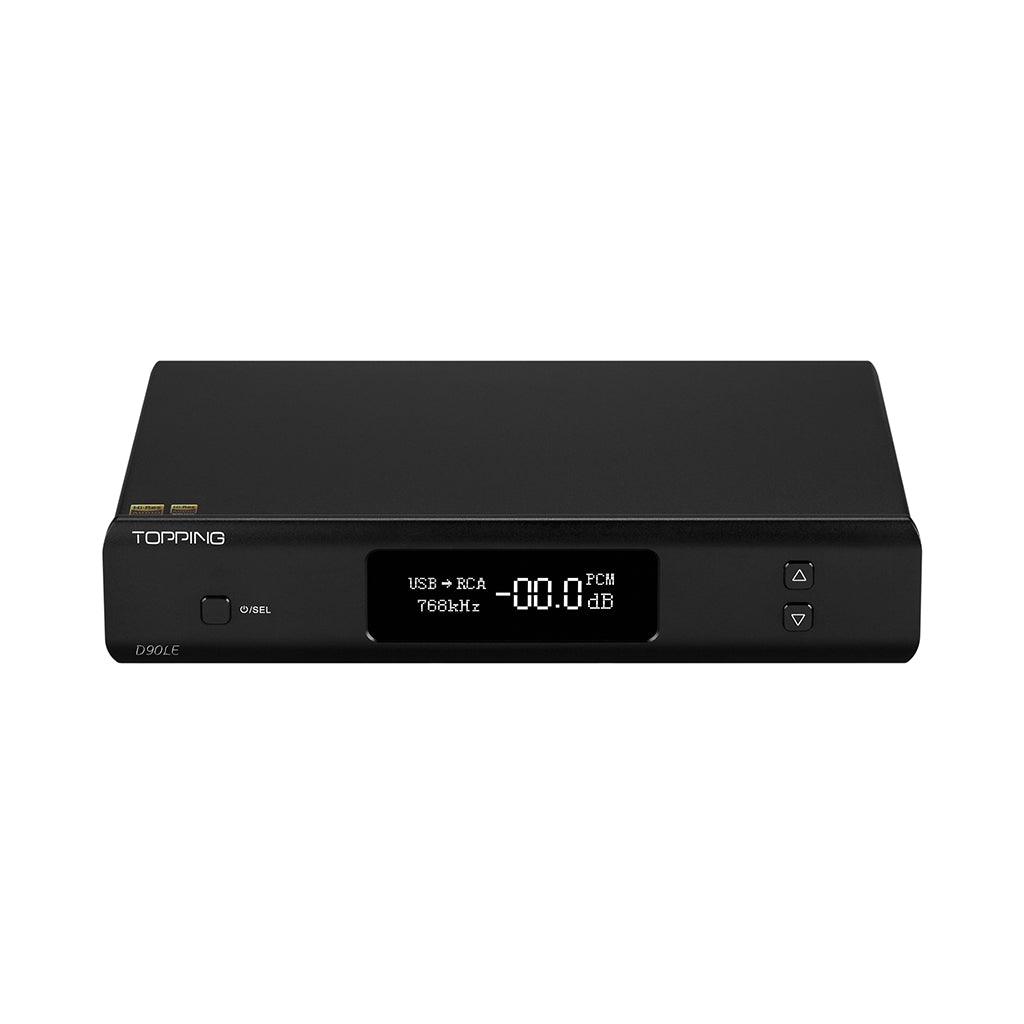

Topping D90LE Desktop Digital to Analog Convertor (DAC) - Open Box

The Topping D90LE is a high-end DAC, benefiting from an intelligent and careful design for high performance. It features an ESS ES9038Pro conversion chip, an XMOS interface and an Altera Max II CPLD. The D90LE is also versatile, with a complete connectivity and an integrated Bluetooth receiver.



Differences between the D90LE and D90SE



D90LE


D90SE


MQA Decoding


No


Yes


MQA Logo


No


Yes





ES9038Pro DAC
The D90LE features an ESS Sabre ES9038Pro DAC chip, using the 32-bit HyperStream architecture to achieve an extremely high level of performance for incredibly accurate and transparent sound reproduction.
The D90LE performs independent I/V (current/voltage) conversion for the 8 channels of the ES9038Pro and then connects them in parallel. This technique allows for an ever increasing level of performance.






Bluetooth 5.0
Equipped with a Qualcomm CSR8675 chip, the D90LE offers Bluetooth 5.0 reception, convenient for remote music streaming directly from your smartphone. In addition, this chip supports the codecs aptX, aptX HD, aptX LL and LDAC, allowing to achieve a high quality sound in wireless.






XMOS XU216
The USB input of the D90LE uses a 2nd generation XMOS XU2013 16-core chip. This chip supports high sampling rates, up to 32bit 768kHz PCM and DSD512, as well as MQA. This chip is associated with a custom Thesycon driver.



Full connectivity
The D90LE benefits from a complete range of connectivity to adapt to all systems. We can find AES, USB-B, Optical, Coaxial, I2S LVDS via HDMI as well as Bluetooth 5.0 connectivity. For its outputs, the D90LE offers single-ended RCA and balanced XLR.



Switchable output
The D90LE offers a selectable output system. The audio stream can be routed to the XLR output, the RCA output or both. Moreover, it also allows to choose an output level. Thus, the XLR output can work in 4V or 5V and the RCA output in 2V or 2.5V.


Preamplifier function
In addition to the DAC mode with a fixed output level, the D90LE offers a DAC + preamplifier mode. In this mode, you can control the volume level. Thus, the D90LE can be directly associated with a power amplifier or active speakers.




CPLD Alter Max II
The Topping D90LE uses an Altera Max II CPLD to process the clock signal and thus optimize the quality of digital signals, significantly reducing jitter.



Topping D90LE review by Audio Science Review (Amir)
"  It is not every day that every barrier we have seen in DACs gets shattered to new levels. We are seeing extreme attention to every aspect of this design to squeeze this much performance out of this ESS DAC. Just when we though the race was over, here comes one more over achiever! "


Technical characteristics



SPECIFICATIONS


Product type
Balanced DAC


Inputs
1x USB-B1x AES1x Coaxial1x Optical Toslink1x I2S LVDS via HDMIBluetooth 5.0


Outputs
1x Stereo RCA1x Stereo XLR


DAC Chip
ESS ES9038Pro


USB interface
XMOS XU216


Supported Bluetooth codecs
SBC, AAC, aptX, aptX LL, aptX HD, LDAC


Supported sampling rates
PCM up to 32bit 768kHzDSD up to DSD512






RCA LINE OUT MEASUREMENTS @ USB, 96KHZ


THD+N @ A-Weighting
< 0.00007% @ 1kHz


THD @ No-Weighting, 90kBw
< 0.0008% @ 20Hz-20kHz


SNR @ A-Weighting
127dB @ 1kHz


Dynamic range @ A-Weighting
127dB @ 1kHz


Frequency response
20Hz-20kHz (±0.1dB)20Hz-40kHz (±0.3dB)


Output level
2.1Vrms @ 0dBFS (Mode 4V)2.6Vrms @ 0dBFS (Mode 5V)


Noise @ A-Weighting
< 1.3µVrms


Crosstalk
-124dB @ 1kHz


Channel balance
0.3dB


Output impedance
100Ω






XLR LINE OUT MEASUREMENTS  @ USB, 96KHZ


THD+N @ A-Weighting
< 0.00005% @ 1kHz


THD @ No-Weighting, 90kBw
< 0.0003% @ 20Hz-20kHz


SNR @ A-Weighting
134dB @ 1kHz


Dynamic range @ A-Weighting
134dB @ 1kHz


Frequency response
20Hz-20kHz (±0.1dB)20Hz-40kHz (±0.3dB)


Output level
4.2Vrms @ 0dBFS (Mode 4V)5.2Vrms @ 0dBFS (Mode 5V)


Noise @ A-Weighting
< 1.1µVrms


Crosstalk
-139dB @ 1kHz


Channel balance
0.3dB


Output impedance
100Ω






GENERAL


Dimensions
222 x 160 x 45mm


Package
1x Topping D90LE Black1x IR Remote control1x USB cable1x Bluetooth antenna1x Power cable
