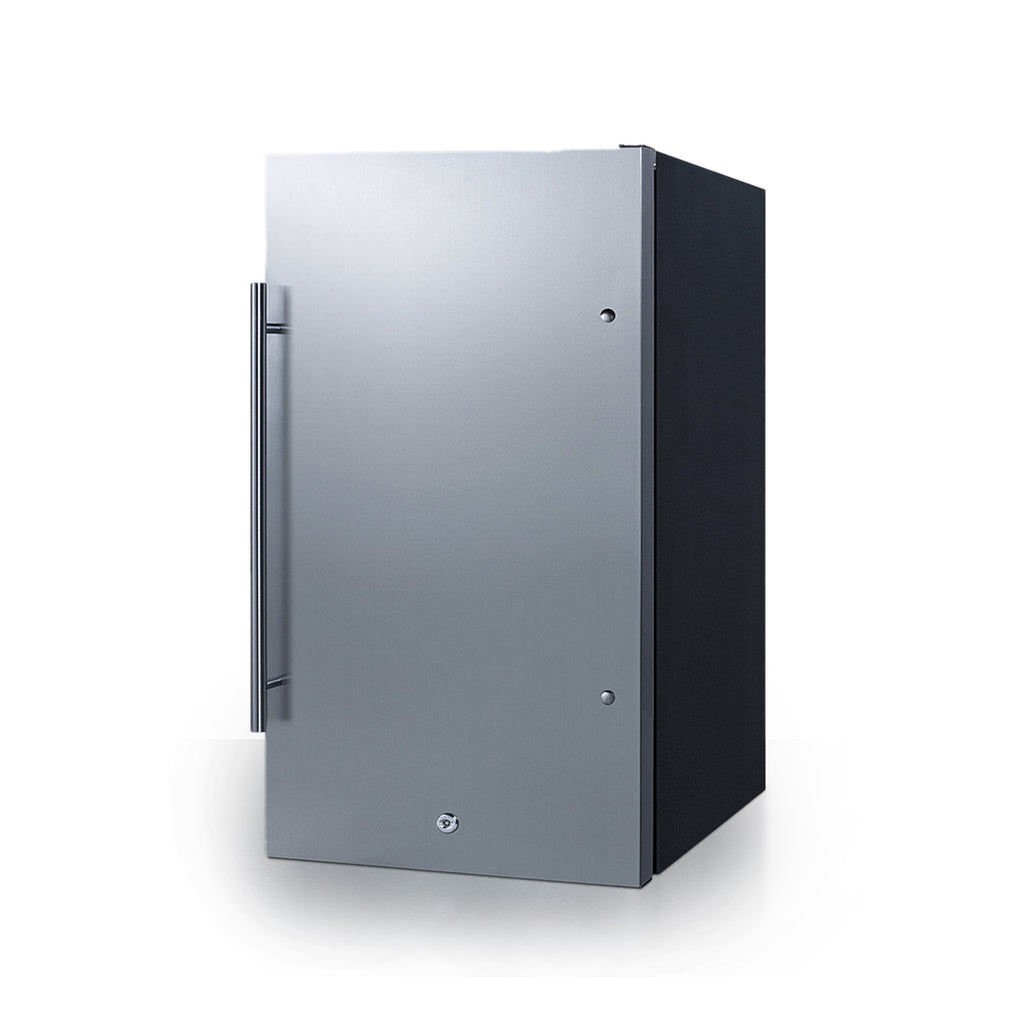

Summit | Shallow Depth Outdoor Built-In All-Refrigerator (SPR196OS)

Flat rate shipping click HERE
Weatherproof design for reliable refrigeration in outdoor commercial or residential settings



33.0" H x 19.0" W x 17.25" D(84cm H x 48cm W x 44cm D)





DESCRIPTION






Summit brings energy efficiency to the outdoors with the SPR196OS, an ENERGY STAR certified all-refrigerator approved for outdoor use.
The SPR196OS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a jet black cabinet with a sealed back for safe installation outdoors and protection from the elements. The user-reversible stainless steel door adds durability and elegance to any outdoor setting and the stainless steel pro-style handle completes the look. A factory-installed lock keeps contents secure, while a right-angle plug and integrated hinge provide added flexibility in placing the unit. Two leveling legs keep the unit level on uneven surfaces.
Inside, the SPR196OS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
The SPR196OS is ENERGY STAR certified and designed for built-in or freestanding outdoor use. For a similar unit with a glass door, see the SPR489OS.



FEATURES


















































Weatherproof design
Approved for use in the outdoors with a stainless steel door for added durability


17.25" shallow depth
Ideal for home wet bars, island kitchens, and other applications with limited footprint space


ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs


Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings


Stainless steel door
Stainless steel door affords added durability


Automatic defrost
Reduced user maintenance with auto defrost system


Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed


Factory installed lock
Keyed lock offers added security, with two keys included


Professional handle
Stainless steel handle adds an attractive touch


Adjustable shelves
Three glass shelves with brake system ensures safe, optimal storage






Door racks
Two chrome racks accommodate a variety of sizes for optimal interior storage


LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view


Black interior finish
Allows for easy cleaning and organization within the interior of the unit


Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management


Versatile construction
Versatile design allows for residential use


Sealed back
Space saving design with easier cleanability and added protection from the elements


Fully finished black cabinet
Allows the unit to be used freestanding


Right-angle plug
Provides flexibility in unit placement without needing added depth


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations









SPECIFICATIONS

































































Overview



Height of Cabinet
33.0" (84 cm)


Width
19.0" (48 cm)


Depth
17.25" (44 cm)


Depth with Handle
19.0" (48 cm)


Depth with door at 90°
35.0" (89 cm)


Capacity
3.13 cu.ft. (89 L)


Defrost Type
Automatic


Door
Stainless Steel


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Energy Usage/Year
259.0kWh/year


Amps
1.3


Voltage/Frequency
115 V AC/60 Hz


Weight
70.0 lbs. (32 kg)


Shipping Weight
75.0 lbs. (34 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101065441



Refrigerator Features



Door Swing
RHD


Reversible
Yes


Shelf Type
Glass


Shelf Qty
3


Adjustable Shelves
Yes


Thermostat Type
Dial


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.88oz.


High Side PSI
320.0


Low Side PSI
120.0


Level Legs Qty
2


Interior Light
Yes


Temperature Range
34 to 50ºF


Sound Level
33.4 dB



Dimensions



Interior Height
29.0" (74 cm)


Interior Width
16.0" (41 cm)


Interior Depth
12.75" (32 cm)


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
16.0" (41 cm)


Compressor Step Depth
6.25" (16 cm)



























DOWNLOADS











BROCHURE w/ DRAWINGS
SPR196OS.pdf



TECHNICAL DRAWING (.dwg)
FF195_REFRIGERATOR__A-C_2018_.dwg



USE & CARE
SPR489OS_manual_07.16.20.pdf
