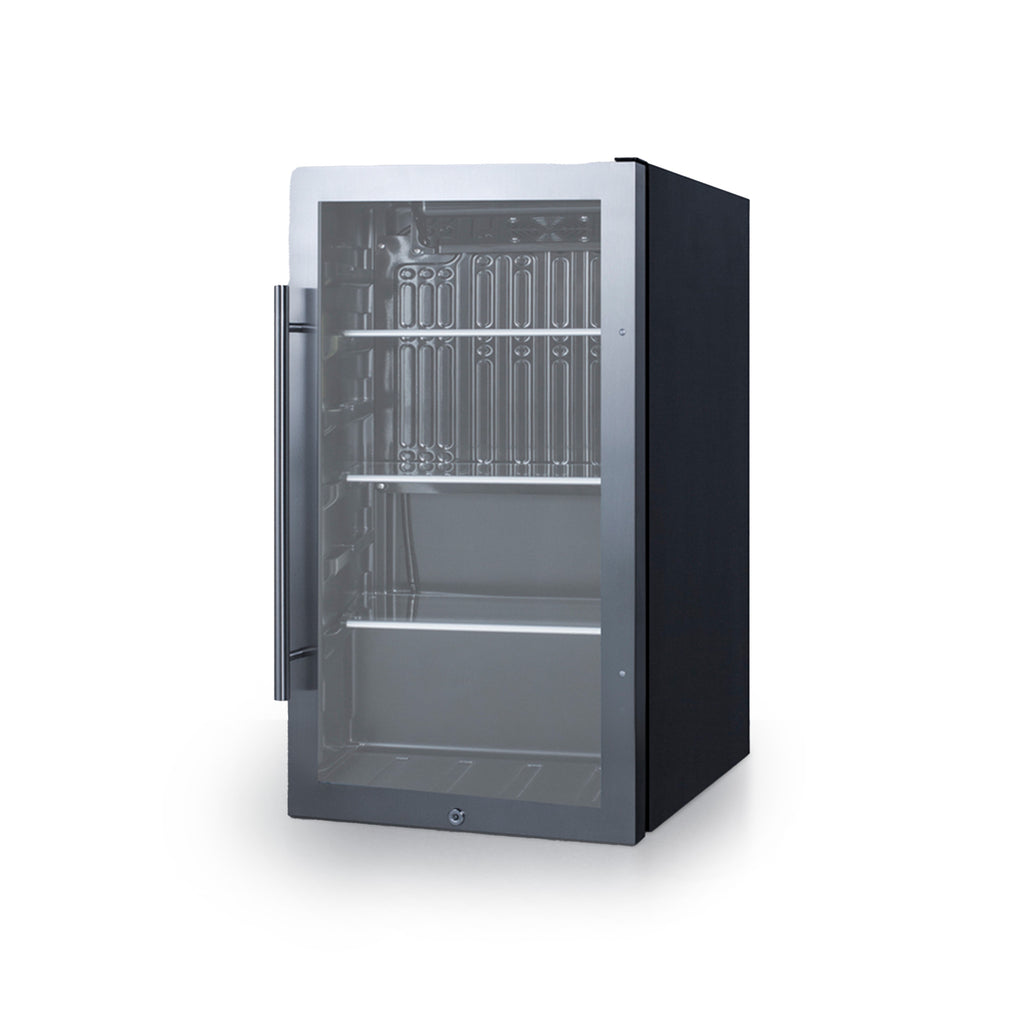

Summit | Shallow Depth Indoor/Outdoor Beverage Cooler (SPR488BOS)

Flat rate shipping click HERE
Weatherproof design for reliable beverage storage in outdoor commercial settings, with a uniquely shallow depth for a better fit



32.5" H x 19.0" W x 17.0" D(83cm H x 48cm W x 43cm D)



DESCRIPTION





Summit's line of outdoor appliances includes slim-fitting display beverage centers designed for optimum storage and product presentation.The SPR488BOS features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized at just 19 inches wide and 17 inches deep, it features a jet black cabinet with a sealed back for safe installation in the outdoors. The user-reversible double pane tempered glass door includes a seamless stainless steel trim and a pro style handle. A factory installed lock offers added security, while the space-saving right angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces. Inside, the SPR488BOS utilizes an internal fan to ensure the interior is evenly cooled from top to bottom, while the automatic defrost system allows for minimal user maintenance. LED lighting allows full visibility of stored items in the jet black interior. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management. The SPR488BOS can be installed indoors or outdoors and is designed for built-in or freestanding use. For this unit in a lower ADA compliant height, see the SPR488BOSADA.


FEATURES


















































Built-in capable
Make the best use of space by installing your refrigerator under the counter


Weatherproof design
Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door


Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings


Double pane tempered glass door
Heat resistant design provides clear view of stored products, with an elegant trim in seamless stainless steel


Automatic defrost
Reduced user maintenance with auto defrost system


17" shallow depth
Ideal for home wet bars, island kitchens, and other applications with limited footprint space


Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed


Factory installed lock
Keyed lock offers added security, with two keys included


Professional handle
Stainless steel handle adds an attractive touch


Adjustable shelves
Three glass shelves with six positions for optimal storage and easy cleaning






LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view


Black interior finish
Allows for easy cleaning and organization within the interior of the unit


Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management


Versatile construction
Versatile design allows for residential use


Sealed back
Space saving design with easier cleanability and added protection from the elements


Fully finished black cabinet
Allows the unit to be used freestanding


Right-angle plug
Provides flexibility in unit placement without needing added depth


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations









SPECIFICATIONS





























































Overview



Height of Cabinet
33.0" (84 cm)


Width
19.0" (48 cm)


Depth
17.0" (43 cm)


Depth with Handle
18.63" (47 cm)


Depth with door at 90°
34.75" (88 cm)


Capacity
3.13 cu.ft. (89 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Energy Usage/Year
285.0kWh/year


Amps
1.3


Voltage/Frequency
115 V AC/60 Hz


Weight
70.0 lbs. (32 kg)


Shipping Weight
100.0 lbs. (45 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101075877








Refrigerator Features



Door Swing
RHD


Reversible
Yes


Shelf Type
Glass


Shelf Qty
3


Adjustable Shelves
Yes


Can Storage
Yes


Thermostat Type
Dial


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.88oz.


High Side PSI
320.0


Low Side PSI
120.0


Level Legs Qty
2


Interior Light
Yes


Temperature Range
34 to 50ºF


Sound Level
32.6 dB











Dimensions



Interior Height
29.0" (74 cm)


Interior Width
16.0" (41 cm)


Interior Depth
12.75" (32 cm)


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
16.0" (41 cm)


Compressor Step Depth
6.25" (16 cm)






DOWNLOADS



























BROCHURE w/ DRAWINGS SPR488BOS.pdf





TECHNICAL DRAWING (.dwg)




SPR489OS_REFRIGERATOR__A-C_2018_.dwg






USE & CARE





SPR489OS_manual_07.16.20.pdf
