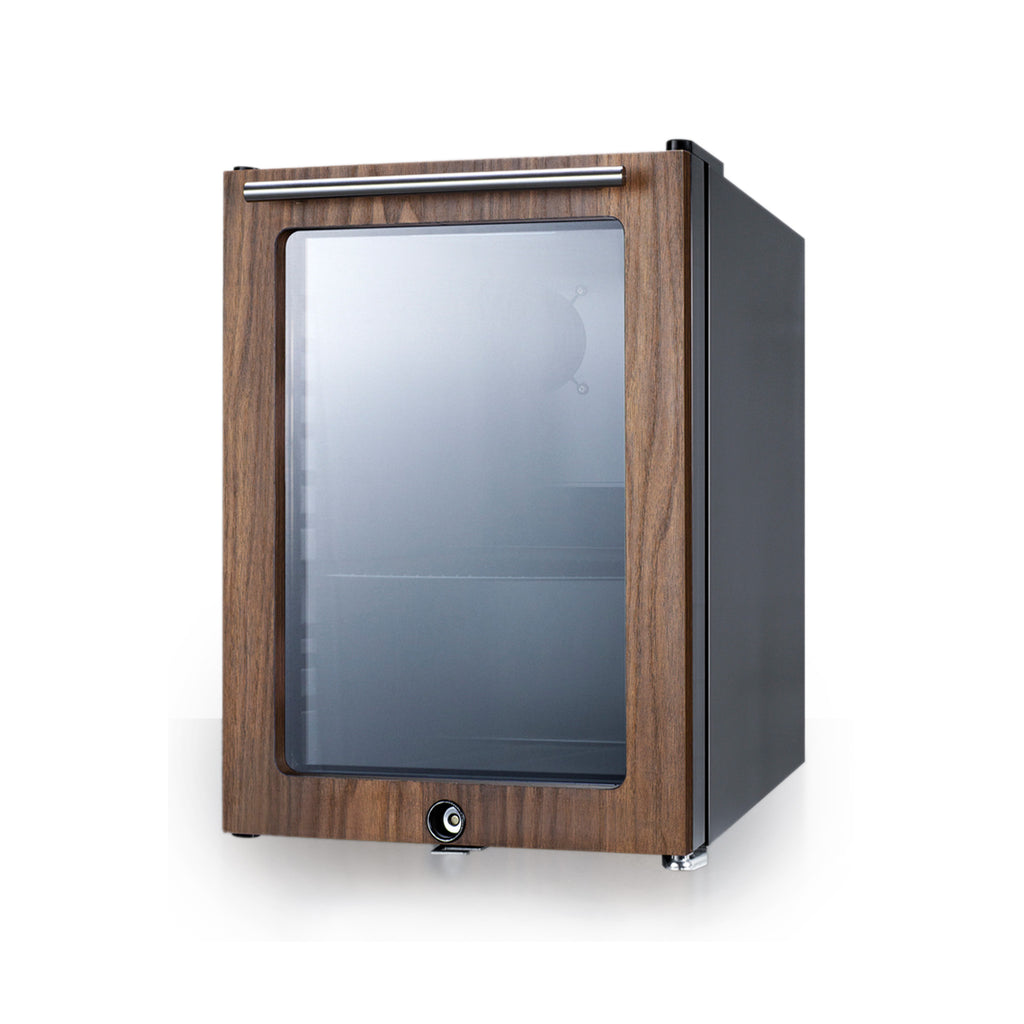

Summit | Compact Glass Door Beverage Centre With Wood Trim (SCR114LWP1)

Flat rate shipping click HERE


Glass door features a walnut finish trim in engineered wood for an added touch of elegance







19.26" H x 13.75" W x 18.0" D
DESCRIPTION

Summit's line of wood-accented refrigeration solutions brings quality and style to any residential or commercial space.The SCR114LWP1 is a compact display refrigerator that is ETL-S listed to NSF-7 commercial standards and meets UL-471. It comes in a jet black finish with a double pane tempered glass door with a pre-installed engineered wood trim in a walnut finish for added elegance and durability. A stainless steel handle mounted horizontally affords easy opening, while a factory-installed lock offers added security. This unit has a sealed back for easier cleaning.Inside, the SCR114LWP1 utilizes automatic defrost operation for low maintenance use, with fan-forced cooling to ensure even temperature distribution. The commercial grade compressor helps to ensure more rapid temperature recovery. LED lighting provides an attractive and efficient view of the jet black interior. An adjustable wire shelf in black allows you to accommodate items of all sizes. The dial thermostat and on/off light switch is located inside the unit in order to prevent customers from making any adjustments. With its deluxe style, commercial design, and user-friendly features, the SCR114LWP1 offers added convenience to commercial beverage storage and display.
FEATURES















Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments


Compact dimensions
Less than 14" wide to take up minimum counter space


Pre-installed wood door trim
Door features engineered wood with a laminate finish in a walnut hue


Double pane tempered glass door
Heat resistant design provides clear view of stored products


Automatic defrost
No-frost convenience for reduced user maintenance


Factory installed lock
Keyed lock for a secure interior, with 2 keys included


LED lighting
Interior LED lighting offers an attractive and energy efficient view


Black interior finish
Modern look that pairs well with LED lighting, ensuring stored items are illuminated in attractive style to maximize impulse sales


Dial thermostat
Adjustable thermostat located inside to prevent unsupervised temperature changes






Professional horizontal handle
Thin 14mm diameter on stainless steel handle set horizontally across the door


Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Adjustable wire shelf
Multiple positions allow you to adjust your storage to accommodate a range of sizes


Compressor-based cooling system
Commercial design with a quality compressor to ensure powerful cooling and fast temperature recovery in busy commercial settings


Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability


Fully finished cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



SPECIFICATIONS

































































Overview



Height of Cabinet
18.88" (48 cm)


Height to Hinge Cap
19.26" (49 cm)


Width
13.75" (35 cm)


Width with Door Open
14.5" (37 cm)


Depth
18.0" (46 cm)


Depth with Handle
19.5" (50 cm)


Depth with door at 90°
30.0" (76 cm)


Capacity
0.85 cu.ft. (24 L)


Defrost Type
Automatic


Door
Glass with Walnut Panel Trim


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.3


Voltage/Frequency
115 V AC/60 Hz


Weight
52.0 lbs. (24 kg)


Shipping Weight
65.0 lbs. (29 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101078465











Refrigerator Features



Door Swing
RHD


Reversible
Factory Reversible


Shelf Type
Wire


Shelf Qty
1


Adjustable Shelves
Yes


Thermostat Type
Dial


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.6oz.


High Side PSI
220.0


Low Side PSI
43.0


Level Legs Qty
2


Interior Light
Yes


Temperature Range
34°F to 43°F


Sound Level
34.5 dB














Dimensions



Interior Height
15.0" (38 cm)


Interior Width
10.63" (27 cm)


Interior Depth
11.0" (28 cm)


Compressor Step Height
8.0" (20 cm)


Compressor Step Width
10.63" (27 cm)


Compressor Step Depth
4.0" (10 cm)












































DOWNLOADS




















BROCHURE w/ DRAWINGS
















SCR114LWP1.pdf

TECHNICAL DRAWING (.dwg)

SCR114LWP1_BEVE._CENTER__A-C_2018_.dwg







USE & CARE

SCR114L_Manual_4-2-2019.pdf






MSDS INFORMATION MSDS_R600a_C.pdf
