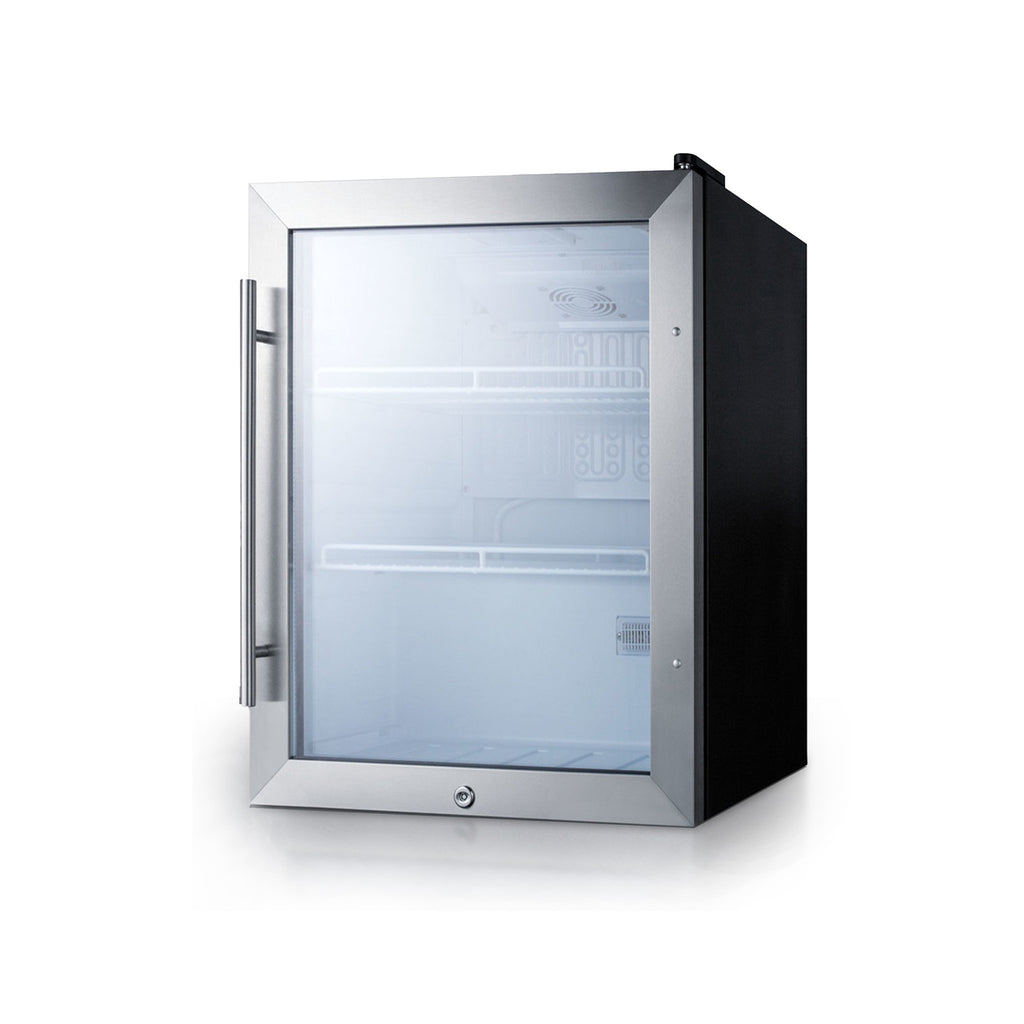

Summit | Compact Beverage Center (SCR314L)

Flat rate shipping click HERE
Compact beverage centre perfect for countertop use.

KEY FEATURES



Auto Defrost
Freestanding Use With Fully Finished Cabinet
Dial Thermostat
Interior LED Lighting

CARB Compliant

Compact Size
24.75" H x 18.88" W x 17.0" D


DESCRIPTION

SUMMIT COMMERCIAL offers a quality selection of beverage centres perfectly designed to maximize impulse sales. The SCR314L is a compact beverage merchandiser sized for use on top of counters. It is ETL-S listed to NSF-7 standards for commercial applications and meets UL-471. The stainless steel trimmed glass door includes a pro style handle and front lock for added security, while the jet black cabinet suits any setting. The door is user-reversible to accommodate any setup.Inside, the SCR314L features LED lighting to provide an attractive display when the door is opened. Two adjustable wire shelves offer plenty of storage options, and the white interior finish helps to provide better visibility for stored products. This unit utilizes automatic defrost to reduce user maintenance. The sealed back offers added space savings and easier cleanup. Perfectly sized and competitively priced, the SCR314L is a great choice for any commercial application in need of a quality beverage centre.
FEATURES







































Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471


Double pane tempered glass door
Heat-safe view for full visibility, with stainless steel trim for an attractive look


User-reversible door swing
Door can be reversed to accommodate any setup


Professional handle
Brushed stainless steel finish suits any setting


Factory installed lock
Keyed lock offers added security (2 keys included)


Automatic defrost
No-frost convenience for reduced user maintenance


Interior LED light
Automatically illuminates when the door is open to provide an attractive and efficient view of stored contents






Adjustable shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup


Adjustable thermostat
Dial thermostat located inside for easy use


Sealed back
Closed rear offers easier cleanup


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals


CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

















SPECIFICATIONS






















Overview



Height of Cabinet
24.25" (62 cm)


Height to Hinge Cap
24.75" (63 cm)


Width
18.88" (48 cm)


Depth
17.0" (43 cm)


Depth with Handle
18.38" (47 cm)


Depth with door at 90°
35.0" (89 cm)


Capacity
2.1 cu.ft. (59 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.3


Voltage/Frequency
115 V AC/60 Hz


Weight
53.0 lbs. (24 kg)


Shipping Weight
80.0 lbs. (36 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101056647








Refrigerator Features



Door Swing
RHD


Reversible
Yes


Shelf Type
Wire


Shelf Qty
2


Adjustable Shelves
Yes


Thermostat Type
Dial


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.71oz.


High Side PSI
320.0


Low Side PSI
120.0


Interior Light
Yes


Temperature Range
34°F to 46°F/1 to 8ºC


Sound Level
33.5 dB














Dimensions



Interior Height
20.75" (53 cm)


Interior Width
15.75" (40 cm)


Interior Depth
12.75" (32 cm)


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
15.75" (40 cm)


Compressor Step Depth
6.0" (15 cm)










DOWNLOADS











BROCHURE w/ DRAWINGS

SCR314L.pdf




TECHNICAL DRAWING (.dwg)




SCR314L_BEVERAGE_CENTER__A-C_2010_.dwg











USE & CARE


SCR489OS_Manual_4-2-2019.pdf



MSDS INFORMATION R600a_K.pdf
