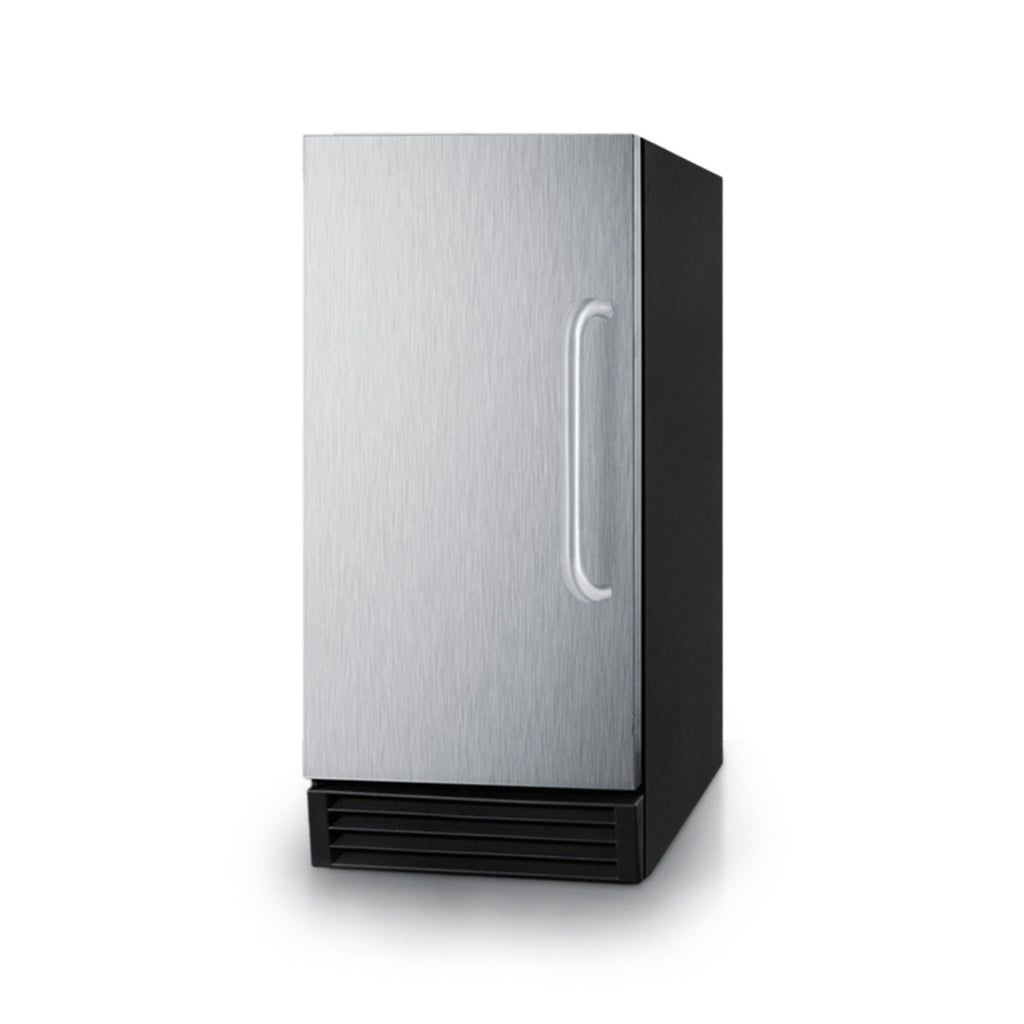

Summit | Built-In 50 lb. Clear Icemaker, ADA Compliant (BIM44GADA)

Flat rate shipping click HERE
Includes an internal pump for more flexibility



32.56" H x 14.5" W x 23.5" D(83cm H x 37cm W x 60cm D)




DESCRIPTION

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters.
Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts. This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. Note: the hinge cover reaches 32 9/16", so if installing under a counter, we recommend notching out added space.
The BIM44GADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop.
The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.
This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.
FEATURES






















ADA compliant
32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")


ENERGY STAR certified commercial performance
Efficient performance for commercial use


Commercially approved
NSF listed for use in commercial establishments


Built-in pump
Internal pump allows more flexibility in placing the unit


Automatic defrost
Simplify appliance care by letting your icemaker defrost itself


Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user


Built-in capable
Make the best use of space by installing your icemaker under the counter






Stainless steel door
Professional styling with lasting durability


Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip


Fully finished black cabinet
Allows the icemaker to be used as a freestanding model


Insulated storage bin
Ice stays solid longer in this cold-protected bin


Clear ice cube production
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop


Ice scoop
Included for your convenience


100% CFC free
Environmentally friendly design without ozone-damaging chemicals






















SPECIFICATIONS





































































Overview



Height of Cabinet
32.38" (82 cm)


Height to Hinge Cap
32.56" (83 cm)


Width
14.5" (37 cm)


Depth
23.5" (60 cm)


Depth with Handle
25.0" (64 cm)


Depth with door at 90°
36.75" (93 cm)


Defrost Type
Automatic


Door
Stainless Steel


Cabinet
Black


US Electrical Safety
UL


Canadian Electrical Safety
ULC


Sanitation
NSF


Amps
4.8


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
109.0 lbs. (49 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101021959



Icemaker



Door Swing
LHD


Reversible
Yes


Drain Required
Yes


Daily Ice Production
50.0 lbs. (23 kg)


Ice Storage Capacity
25.0 lbs. (11 kg)


Ice Shape
Cube


Size of Cube
7/8" x 7/8" x 7/8"


Number of Ice Cube Sizes
1


Fan Type
Exterior


Refrigerant Type
R134a


Refrigerant Amount
3.88 oz.


High Side PSI
350.0


Low Side PSI
130.0


Interior Height
18.5" (47 cm)


Interior Width
12.0" (30 cm)


Interior Depth
16.0" (41 cm)
