Summit Accucold | 24" Wide Built-In Refrigerator-Freezer, ADA Compliant (AL650LWBI)

Flat rate shipping click HERE

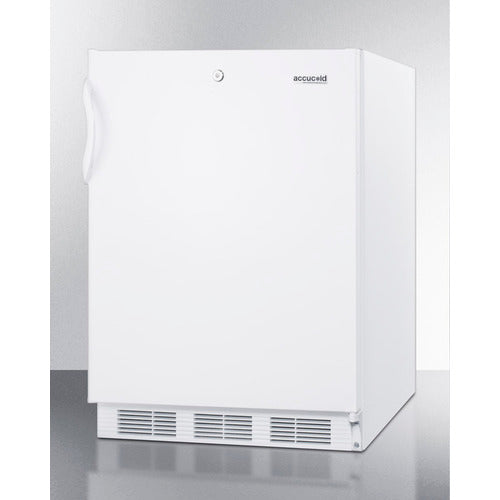

24" wide, ADA compliant refrigerator-freezer with white cabinet and front.
32.25" H x 23.63" W x 23.5" D



DESCRIPTION



Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The AL650BI Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.At 32" high, the AL650LWBI can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white exterior finish and a user-reversible door swing. A factory installed lock offers convenient security.Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.The AL650LWBI has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650BI Series.NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
FEATURES

























ADA compliant
32 inch height fits under standard ADA counters


Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets


Fully finished white cabinet
Allows the unit to be used freestanding


Factory installed lock
Keyed lock offers added security


Reversible door
User-reversible door swing for added flexibility


Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment






Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators


Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up


Door shelves
Store tall bottles and condiments right on the door for convenient access


Clear crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer


Adjustable thermostat
Dial thermostat located inside for easy temperature management


100% CFC free
Environmentally friendly design without ozone-damaging chemicals




















SPECIFICATIONS


































































Overview



Height of Cabinet
32.0" (81 cm)


Height to Hinge Cap
32.25" (82 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
24.75" (63 cm)


Depth with door at 90°
45.63" (116 cm)


Capacity
5.1 cu.ft. (144 L)


Defrost Type
Cycle


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.4


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
105.0 lbs. (48 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101068237











Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Interior Light
Yes


Refrigerator - Interior Height
19.5" (50 cm)


Refrigerator - Interior Width
20.5" (52 cm)


Refrigerator - Interior Depth
17.0" (43 cm)


Refrigerator - Shelf Type
Wire


Refrigerator - Shelf Qty
2


Refrigerator - Full Door Shelves
3


Freezer - Interior Height
5.0" (13 cm)


Freezer - Interior Width
19.0" (48 cm)


Freezer - Interior Depth
11.5" (29 cm)


Thermostat Type
Dial


Fan Type
Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.92 oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs
4


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
20.5" (52 cm)


Compressor Step Depth
5.0" (13 cm)










DOWNLOADS

























































BROCHURE w/ DRAWINGS






























AL650LWBI.pdf




TECHNICAL DRAWING (.dwg)


AL650LREFRIGERATOR-FREEZERA-C2000.dwg




USE & CARE








CT66WBI_CT66BKBI_User_Manual_51220.pdf
