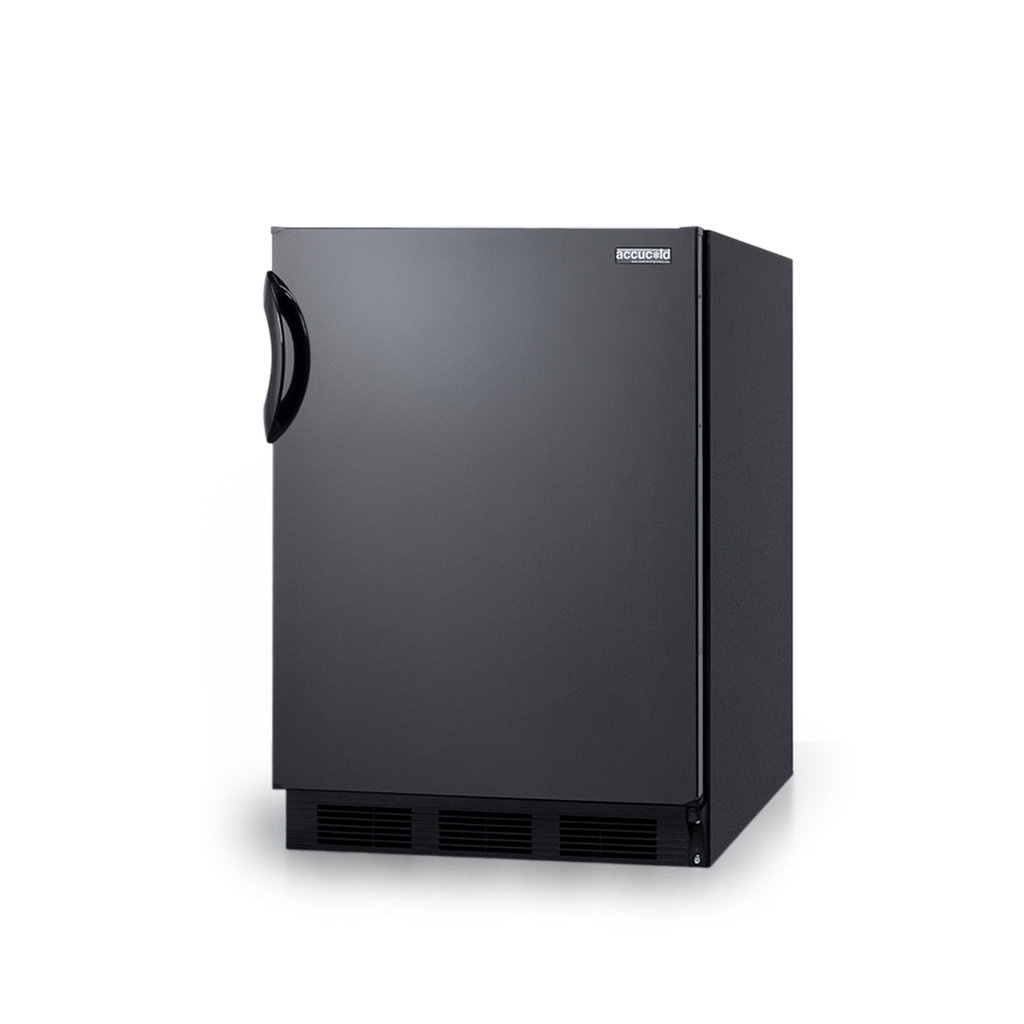

Summit Accucold | 24" Wide All-Refrigerator, ADA Compliant (AL752BK)

Flat rate shipping click HERE

General purpose commercial, ADA compliant refrigerator in 24" width.
32.25" H x 23.63" W x 23.5" D
DESCRIPTION
































































Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750 Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.The AL752BK is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black exterior and user-reversible door swing.Inside, the AL752K utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.For a built-in version of this unit, see the AL752BKBI. For more finish options, browse the entire AL750 Series.NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.




















































FEATURES











































































ADA Compliant
32" height for use in settings complying with ADA guidelines for lower counter height

Slim counter height dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Fully finished cabinet
Allows this unit to be used freestanding

Automatic defrost
Reduced user maintenance with automatic defrost operation

Hidden evaporator
Cold wall design with hidden evaporator and seamless interior

Adjustable thermostat
Dial thermostat located inside for easy temperature management





Reversible door
User-reversible door swing for added flexibility

Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat

Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"

100% CFC free
Environmentally friendly design without ozone-damaging chemicals


SPECIFICATIONS
















































































































Overview



Height of Cabinet
32.0" (81 cm)


Height to Hinge Cap
32.25" (82 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
24.0" (61 cm)


Depth with door at 90°
45.13" (115 cm)


Capacity
5.3 cu.ft. (150 L)


Defrost Type
Automatic


Door
Black


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Energy Usage/Year
276.0kWh/year


Amps
0.9


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
115.0 lbs. (52 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101071688
























Refrigerator Features



Door Swing
RHD


Reversible
Yes


Shelf Type
Glass


Shelf Qty
3


Adjustable Shelves
Yes


Thermostat Type
Dial


Refrigerant Type
R600a


Refrigerant Amount
0.64oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs Qty
4


Interior Light
Yes











Dimensions



Interior Height
26.25" (67 cm)


Interior Width
21.0" (53 cm)


Interior Depth
17.75" (45 cm)


Compressor Step Height
5.5" (14 cm)


Compressor Step Width
21.0" (53 cm)


Compressor Step Depth
5.5" (14 cm)






























DOWNLOADS






































BROCHURE w/ DRAWINGS
AL752BK.pdf



TECHNICAL DRAWING (.dwg)
AL752BMODIFYFEFRIGERATORA-C2000.dwg



USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf
