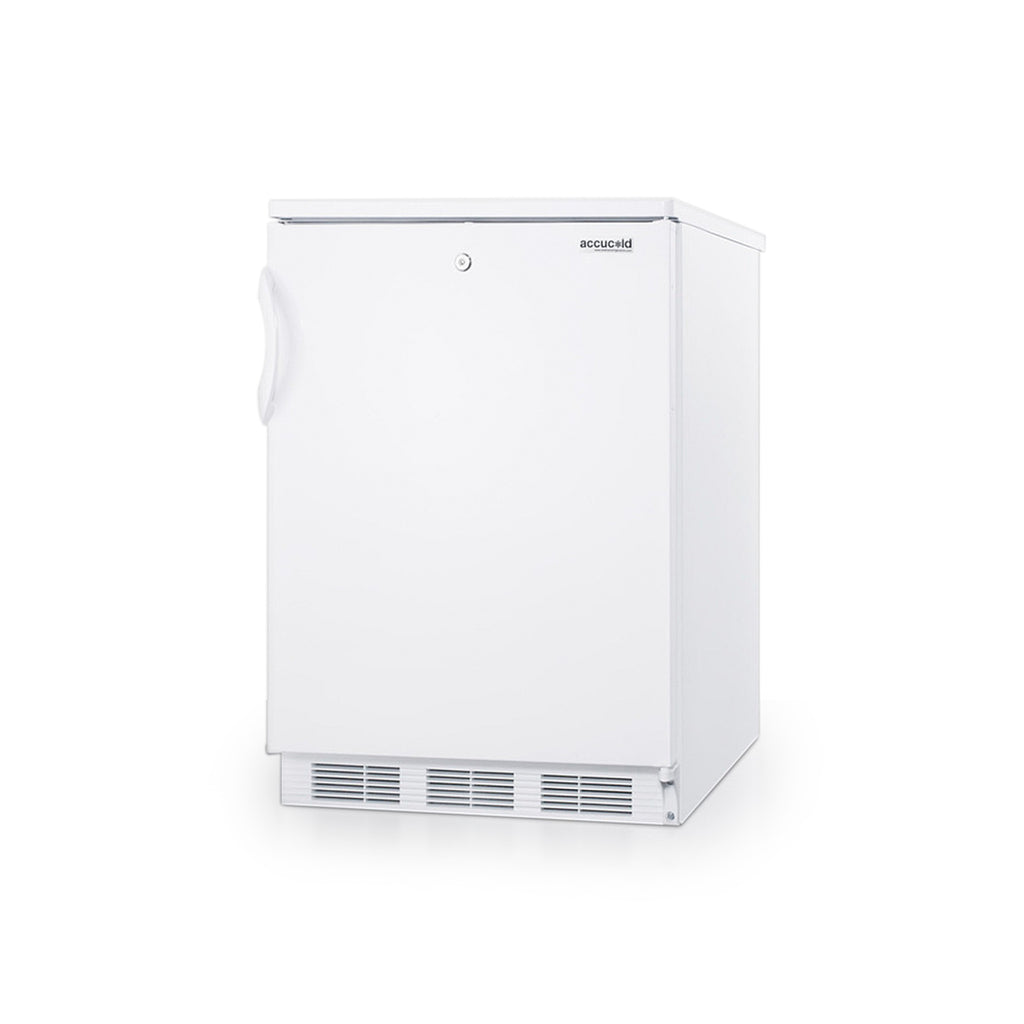

Summit Accucold | 24" Wide Accucold General Purpose Refrigerator-Freezer, Built-In (CT66LWBI)

Flat rate shipping click HERE

5.1 cu ft refrigerator-freezer made in Europe with a unique dual evaporator system to ensure better cooling in each section.
33.5" H x 23.63" W x 23.5" D





DESCRIPTION






Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.Sized with a 24" footprint, the CT66LWBI can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white exterior finish and a user-reversible door swing. A factory installed front lock offers convenient security.Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.The CT66LWBI has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBI Series.NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.



FEATURES


















































































Built-in capability
Make the best use of space by installing your refrigerator under the counter and flush with other cabinets


Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment


Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators


Front-mounted lock
Keyed lock offers added security


Thin-line design
Our unique 24" wide models offer full capacity in a slim fit


Adjustable thermostat
Dial thermostat located inside for easy temperature management


Interior light
Automatically illuminates when you open the door


Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up






Crisper
Get the longest life and best taste out of produce by storing it in a convenient slide drawer


Door storage
Store large bottles right on the door for easy access


Reversible door
User-reversible door swing for added flexibility


Hidden evaporator
Cold wall design with hidden evaporator and seamless interior


Height Adjustable
Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
















































SPECIFICATIONS




































Overview



Height of Cabinet
33.5" (85 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
25.13" (64 cm)


Depth with door at 90°
46.25" (117 cm)


Capacity
5.1 cu.ft. (144 L)


Defrost Type
Cycle


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.4


Weight
100.0 lbs. (45 kg)


Shipping Weight
130.0 lbs. (59 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101068800

















































Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Interior Light
Yes


Refrigerator - Interior Height
19.5" (50 cm)


Refrigerator - Interior Width
20.5" (52 cm)


Refrigerator - Interior Depth
17.0" (43 cm)


Refrigerator - Shelf Type
Wire


Refrigerator - Shelf Qty
2


Refrigerator - Full Door Shelves
3


Freezer - Interior Height
5.0" (13 cm)


Freezer - Interior Width
19.0" (48 cm)


Freezer - Interior Depth
11.5" (29 cm)


Thermostat Type
Dial


Fan Type
Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.92 oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs
4


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
20.5" (52 cm)


Compressor Step Depth
5.0" (13 cm)



































DOWNLOADS




















BROCHURE w/ DRAWINGS







CT66LWBI.pdf









TECHNICAL DRAWING (.dwg)


CT66LBIREFRIGERATOR-FREEZERA-C2004.dwg








USE & CARE
CT66WBI_CT66BKBI_User_Manual_51220.pdf
