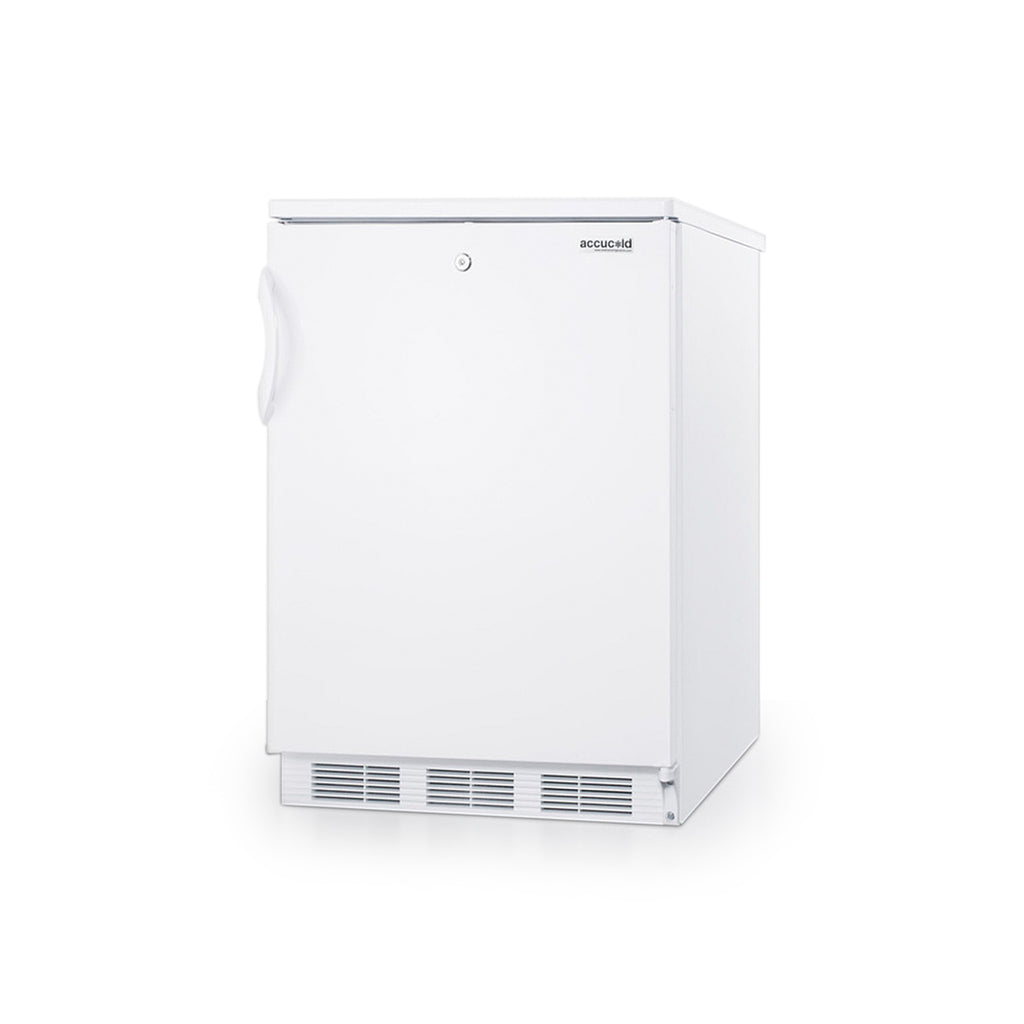

Summit Accucold | 24" Wide Accucold General Purpose Refrigerator-Freezer, ADA Compliant (CT66LWADA)

Flat rate shipping click HERE

5.1 cu ft, ADA compliant refrigerator-freezer made in Europe with a unique dual evaporator system to ensure better cooling in each section.
32.38" H x 23.63" W x 23.5" D




DESCRIPTION






Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66JADA Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.At 32" high, the CT66LWADA is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a white exterior finish and a user-reversible door swing. A factory installed front lock offers convenient safety.Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.The CT66LWADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WADA Series. For built-in undercounter applications, see the CT66LWBIADA.NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.



FEATURES









































































ADA Compliant








32" height for use in settings complying with ADA guidelines for lower counter height


Slim counter height dimensions
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit


Fully finished white cabinet
Allows the unit to be used freestanding


Factory installed lock
Keyed lock offers added security


Dual evaporator cooling
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators


Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment


Reversible door
User-reversible door swing for added flexibility


Adjustable shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup






Crisper drawer
Get the longest life and best taste out of produce by storing greens in lower slide drawer


Door shelves
Store tall bottles and condiments right on the door for convenient access


Interior light
Automatically illuminates when the door is opened


Hidden evaporator
Cold wall design with hidden evaporator and seamless interior


Adjustable thermostat
Dial thermostat located inside for easy temperature management


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals



SPECIFICATIONS











































































































Overview



Height of Cabinet
32.0" (81 cm)


Height to Hinge Cap
32.38" (82 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
24.13" (61 cm)


Depth with door at 90°
45.13" (115 cm)


Capacity
5.1 cu.ft. (144 L)


Defrost Type
Cycle


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.2


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
120.0 lbs. (54 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101068794











Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Interior Light
Yes


Refrigerator - Interior Height
19.5" (50 cm)


Refrigerator - Interior Width
20.5" (52 cm)


Refrigerator - Interior Depth
17.0" (43 cm)


Refrigerator - Shelf Type
Wire


Refrigerator - Shelf Qty
2


Refrigerator - Full Door Shelves
3


Freezer - Interior Height
5.0" (13 cm)


Freezer - Interior Width
19.0" (48 cm)


Freezer - Interior Depth
11.5" (29 cm)


Thermostat Type
Dial


Fan Type
Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.92 oz.


High Side PSI
180.0


Low Side PSI
80.0


Compressor Step Height
7.0" (18 cm)


Compressor Step Width
20.5" (52 cm)


Compressor Step Depth
5.0" (13 cm)






































DOWNLOADS




















BROCHURE w/ DRAWINGS







CT66LWADA.pdf


















USE & CARE

CT661W_CT663BK__User_Manual_51220.pdf
