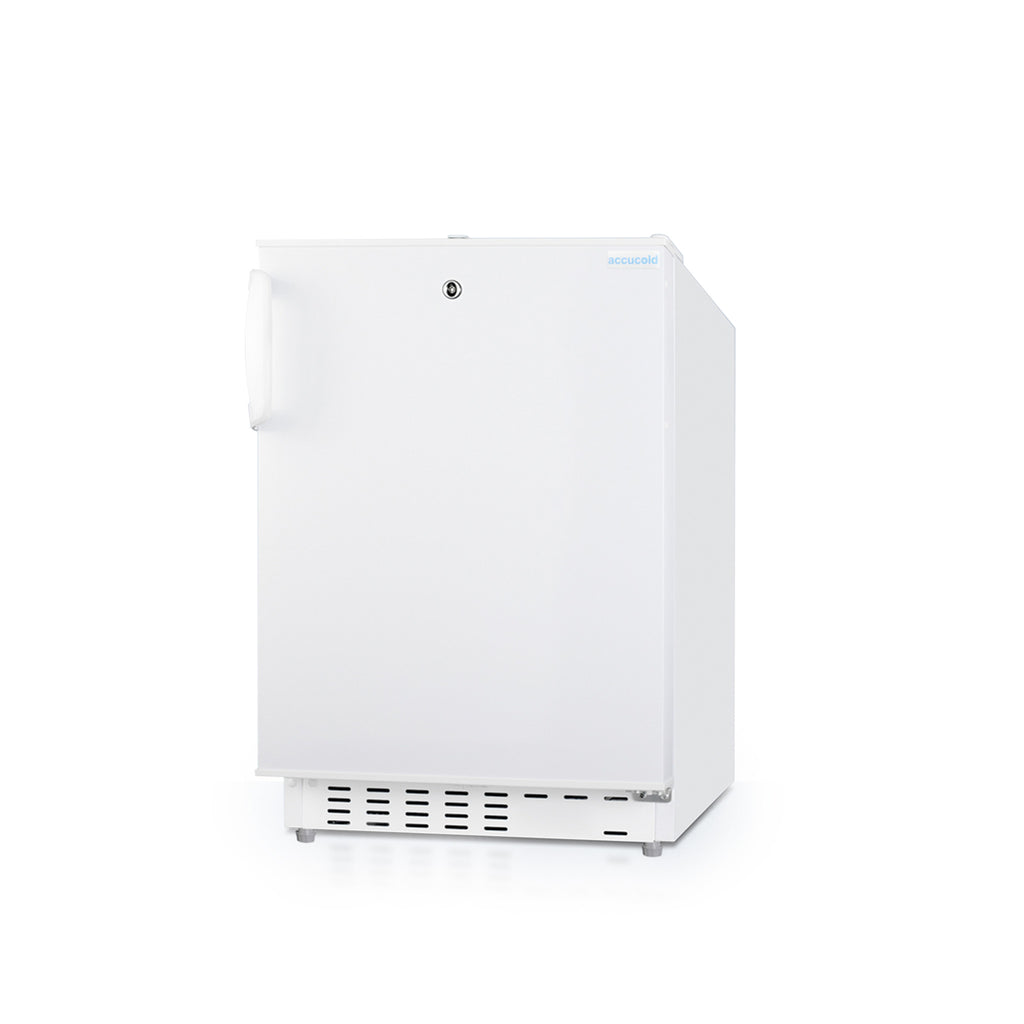

Summit Accucold | 20" Wide Built-In Refrigerator-Freezer, ADA Compliant (ADA302RFZ)

Flat rate shipping click HERE
20" wide built-in refrigerator-freezer designed to fit under lower ADA compliant counters.

DESCRIPTION

Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZ is a refrigerator-freezer designed for use in settings complying with ADA guidelines.The ADA302RFZ is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The user-reversible door is 3" thick to ensure proper insulation and unit efficiency, with a handle included for added convenience. This unit comes with a right angle cord to allow for added placement options without added depth. Inside, the ADA302RFZ features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing. With its compact size and convenient features, the ADA302RFZ is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer.Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
FEATURES












































ADA compliant design
32" height allows easy installation under lower ADA compliant counters


Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter


Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)


3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space


Door shelves
Three removable door racks for additional storage of bottles and other taller items


Adjustable glass shelves
Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior


Freezer compartment
Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies


Manual defrost
Static cooling system for added efficiency


Adjustable thermostat
Dial thermostat located inside for easy temperature management






Slide-out drawer
Removable clear crisper drawer


Reversible door
User-reversible door swing for added flexibility to best accommodate your setting


Sealed back
Space-saving design that offers easier cleanability


Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth


Interior light
Front-located LED light ensures entire interior is lit when door opens


Fully finished white cabinet
Allows the unit to be used freestanding


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations









































































































SPECIFICATIONS













Overview



Height of Cabinet
31.75" (81 cm)


Height to Hinge Cap
32.0" (81 cm)


Width
19.75" (50 cm)


Width with Door Open
20.25" (51 cm)


Depth
22.5" (57 cm)


Depth with Handle
24.38" (62 cm)


Depth with door at 90°
40.25" (102 cm)


Capacity
2.68 cu.ft. (76 L)


Defrost Type
Manual


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Energy Usage/Year
259.0kWh/year


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
65.0 lbs. (29 kg)


Shipping Weight
70.0 lbs. (32 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101067957











Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Interior Light
Yes


Refrigerator - Interior Height
17.5" (44 cm)


Refrigerator - Interior Width
16.25" (41 cm)


Refrigerator - Interior Depth
17.0" (43 cm)


Refrigerator - Shelf Type
Glass


Refrigerator - Shelf Qty
3


Refrigerator - Full Door Shelves
3


Refrigerator - Temperature Range
35-46º F


Refrigerator - Refrigerant Type
R600a


Refrigerator - Refrigerant Amount
0.92 oz.


Freezer - Interior Height
5.75" (15 cm)


Freezer - Interior Width
16.25" (41 cm)


Freezer - Interior Depth
11.25" (29 cm)


Thermostat Type
Dial


Refrigerant Type
R600a


Refrigerant Amount
0.92 oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs
2


Compressor Step Height
6.25" (16 cm)


Compressor Step Width
16.25" (41 cm)


Compressor Step Depth
6.0" (15 cm)
