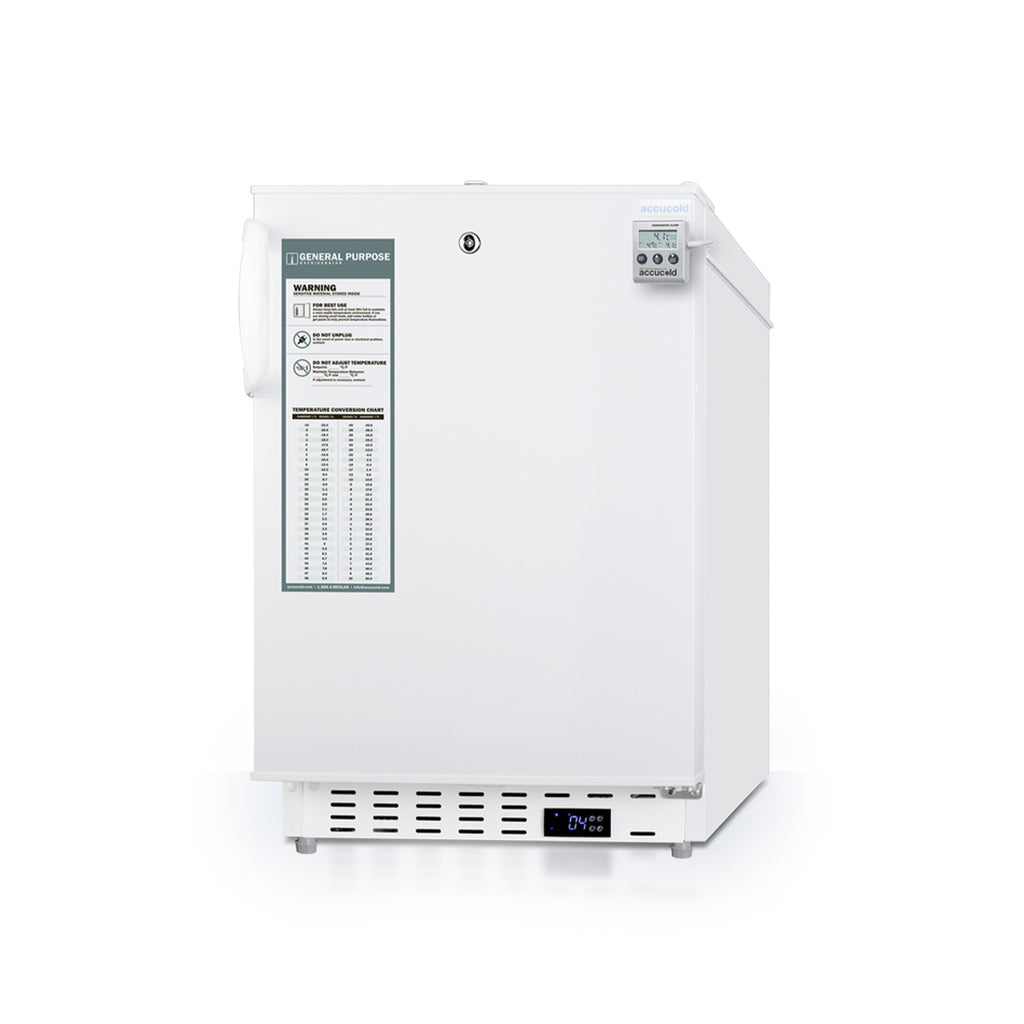

Summit Accucold | 20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant (ADA404REFAL)

Flat rate shipping click HERE


Slim-fitting ADA compliant undercounter refrigerator, with an external high/low temperature readout and 2°C to 8ºC operation as recommended by the CDC & VFC.







KEY FEATURES


Frost-Free Operation
Fully Finished White Cabinet for Freestanding Use
Keyed Lock

Self-Closing Glass Doors


12.6 Cu Ft Capacity

CARB Compliant

69.75" H x 23.63" W x 23.75" D

DESCRIPTION

Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters and for the storage of vaccines and medical supplies.The ADA404REFAL is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal. This model comes with a right-hand door swing. (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)The ADA404REFAL is designed to operate between +2°C and +8°C as recommended for the storage of vaccines, select pharmaceuticals, and other medical supplies. For optimum temperature management, a pre-installed thermometer is included that provides an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC and VFC). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filed bottle and secured on the left wall of the interior cabinet to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. (Note: for this unit with a NIST calibrated thermometer, see the ADA404REFCAL.) Inside, an LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu. ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind but can be disabled depending on your needs. Sized at just under 20" wide, the ADA404REAL is the ideal storage solution for doctors' offices, clinics, and similar facilities.NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
FEATURES



















ADA compliant design
32" height allows easy installation under lower ADA compliant counters


Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter


+2°C to +8°C operation
Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements


External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button


Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines


3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space


Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials


High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range


Open door alarm
Audible alarm will sound if the door is left ajar for over a minute


Right-hand door swing
Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)


Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)






Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius


Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety


Automatic defrost
Reduced user maintenance with an auto defrost system


Adjustable wire shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior


Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Sealed back
Space-saving design that offers easier cleanability


Interior light
Front-located LED light ensures entire interior is lit when door opens


Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance


Fully finished white cabinet
Allows the unit to be freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations












SPECIFICATIONS



















Overview



Height of Cabinet
31.75" (81 cm)


Height to Hinge Cap
32.0" (81 cm)


Width
19.75" (50 cm)


Width with Door Open
20.25" (51 cm)


Depth
22.5" (57 cm)


Depth with Handle
24.38" (62 cm)


Depth with door at 90°
40.25" (102 cm)


Capacity
3.32 cu.ft. (94 L)


Defrost Type
Automatic


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
59.0 lbs. (27 kg)


Shipping Weight
90.0 lbs. (41 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101079042











Refrigerator Features



Door Swing
RHD


Reversible
Factory Reversible


Shelf Type
Wire


Shelf Qty
4


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.99oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs Qty
2


Interior Light
Yes


Sound Level
2°C to 8°C











Dimensions



Interior Height
23.5" (60 cm)


Interior Width
16.25" (41 cm)


Interior Depth
17.0" (43 cm)


Compressor Step Height
6.25" (16 cm)


Compressor Step Width
16.25" (41 cm)


Compressor Step Depth
6.0" (15 cm)
































DOWNLOADS



BROCHURE w/ DRAWINGS

ADA404REFAL.pdf
