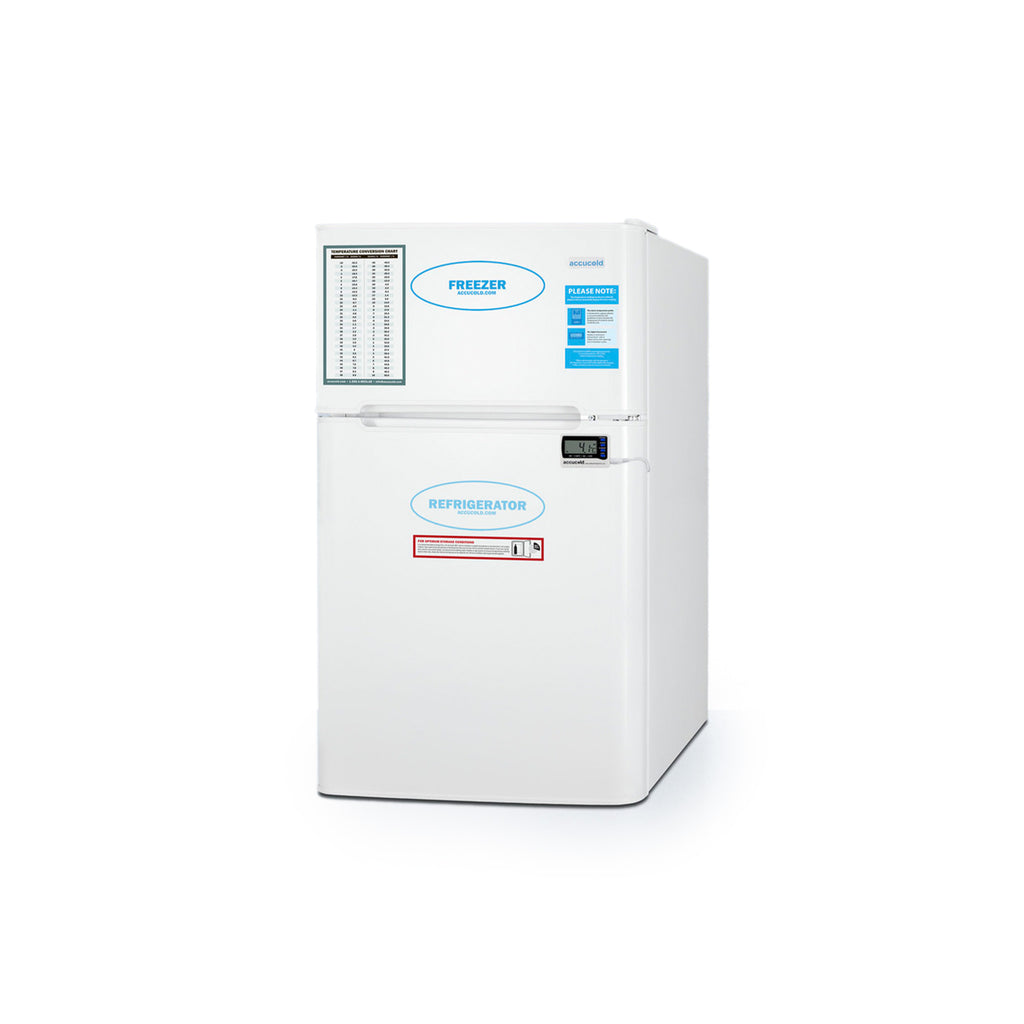

Summit Accucold | 19" Wide General Purpose Refrigerator-Freezer (AGP34RF)







Flat rate shipping click HERE

19" wide general purpose medical fridge-freezer.



KEY FEATURES





Refrigerator-Freezer Combo
Buffered temperature probe
Auto Defrost
19" Width for Small Spaces
CARB Compliant
Digital Thermostat with Temperature Monitoring Device
46.0" H x 18.75" W x 23.0" D




DESCRIPTION





Accucold's general purpose refrigeration series offers cold storage solutions to meet a variety of facility needs.The AGP34RF is a two-door counter height refrigerator-freezer in a slim 19 inch footprint, ideal for offices and institutions with limited floor space. The lower refrigerator compartment is designed to operate between 2 and 8ºC. The digital thermostat is located inside. We include an alarm/thermometer that users can easily install to monitor the refrigerator temperature. The thermometer displays the current and high/low temperatures to the nearest tenth of a degree in a readout switchable from Celsius to Fahrenheit. The temperature probe is encased in a glycol-filled bottle to help simulate the temperature of stored materials, rather than the refrigerator air temperature. An audible alarm warns if the unit has gone out of the recommended range.Inside the refrigerator section, the AGP34RF features fan-forced cooling to for even temperature distribution, with adjustable wire shelves to help promote proper circulation. Door racks are included to hold non-temperature sensitive items. The refrigerator utilizes automatic defrost to reduce user maintenance, while the upper freezer compartment comes with a static manual defrost system. The freezer also includes door storage. It is best suited for storing ice packs and other items without strict temperature requirements. (NOTE: the freezer temperature is based off the refrigerator setting and cannot be adjusted independently.) Additional features include a user-reversible door swing, sealed back for easier cleaning, and interior refrigerator light.With its slim fit and user-friendly design, the AGP34RF is a smart solution for facilities seeking an upgraded general purpose refrigerator-freezer. For this same unit with a lock and NIST calibrated temperature monitoring device, see the AGP34RFLCAL. For more advanced temperature uniformity, explore Accucold's purpose built series, including stacked refrigerator-freezer combinations with independent cooling systems. *NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order. NOTE: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
FEATURES






































































Refrigerator-freezer combination
2 to 8ºC refrigerator section for basic storage applications, with an upper freezer compartment ideal for ice packs


Digital thermostat (refrigerator)
Easy operation with a factory-installed digital thermostat that allows you to manage the refrigerator temperature between 2 and 8ºF (NOTE: the freezer temperature will self-adjust based on the refrigerator setting)


Alarm/thermometer included
Temperature monitoring device (TMD) displays the current and min/max temperature of the refrigerator interior, with an audible alarm to alert if the unit goes out of range


Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature


External temperature readout
Thermometer is designed to be placed on the door, allowing you to view the interior temperature without opening the door and exposing stored contents to warmer air


Fan-forced cooling
Refrigerator section includes a factory-installed fan to help ensure a more evenly cooled interior


Automatic defrost refrigerator
Lower refrigerated section does not require manual defrosting


Manual defrost freezer
Static cooling system in the upper freezer compartment


Thin-line design
Slim width and shallow depth offers an easy fit in facilities with space constraints






Adjustable wire shelves
Flexible design to make the most of your interior


Door storage
3 full racks ideal for water bottles or other non-sensitive items


Interior light
Automatically illuminates when you open the door


Sealed back
Space-saving design that offers easier cleanability


Reversible doors
User-reversible door swing for added flexibility to best accommodate your setting


White exterior finish
Cabinet and doors come in a clean white finish


Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations











SPECIFICATIONS

















































































Overview



Height of Cabinet
33.0" (84 cm)


Height to Hinge Cap
33.38" (85 cm)


Width
19.0" (48 cm)


Depth
19.75" (50 cm)


Depth with door at 90°
36.75" (93 cm)


Capacity
3.2 cu.ft. (91 L)


Defrost Type
Cycle


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
55.0 lbs. (25 kg)


Shipping Weight
77.0 lbs. (35 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101084541











Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Interior Light
Yes


Refrigerator - Interior Height
18.5" (47 cm)


Refrigerator - Interior Width
15.75" (40 cm)


Refrigerator - Interior Depth
15.0" (38 cm)


Refrigerator - Shelf Type
Wire


Refrigerator - Shelf Qty
2


Refrigerator - Full Door Shelves
2


Refrigerator - Temperature Range
2 to 8ºC


Freezer - Interior Height
7.5" (19 cm)


Freezer - Interior Width
14.0" (36 cm)


Freezer - Interior Depth
14.0" (36 cm)


Freezer - Full Door Shelves
1


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
1.16 oz.


High Side PSI
250.0


Low Side PSI
88.0


Level Legs
2


Compressor Step Height
9.0" (23 cm)


Compressor Step Width
15.75" (40 cm)


Compressor Step Depth
5.0" (13 cm)



































DOWNLOADS









BROCHUREAGP34RF.pdf


TECHNICAL DRAWING
AGP34RF_REF._FREEZER__A-C_.dwg








USE & CARE

GP-PLUS2-PRO-MED_Use___Care_01.2022.pdf





SUPPORT LLF2_Instructions.pdf







ASSEMBLY DRAWINGAGP34RF_ASS_Y.pdf



MSDS INFORMATIONR600a_AO.pdf
