Summit | 6.5 cu.ft. Single Tap Built-In Kegerator - Panel Ready Door (SBC635MBIIF)

Flat rate shipping click HERE
24" wide kegerator perfect for commercial and residential settings.  True frost-free forced air cooling for optimum performance.

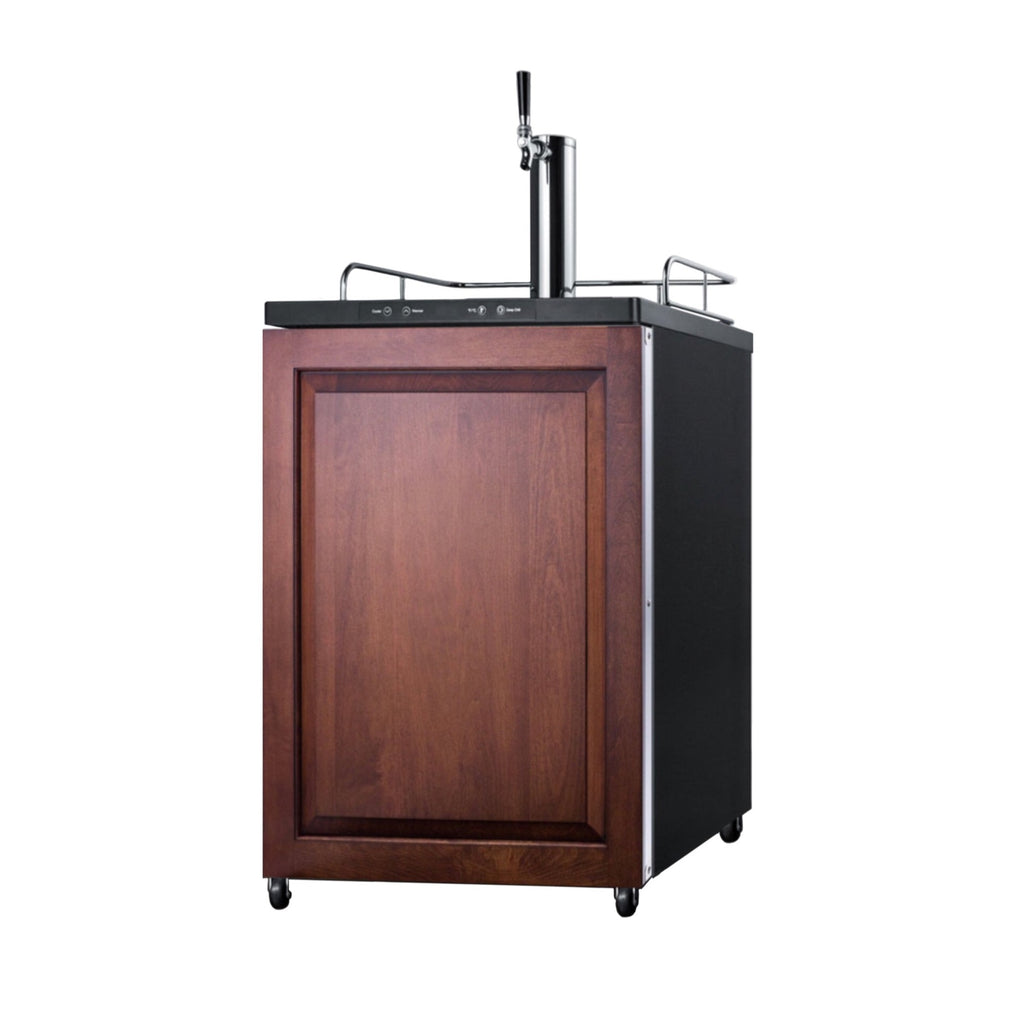

Kegerator is pictured with wooden cabinetry door as an example only. The stainless steel door is designed to easily accept the mounting of your own cabinetry.
KEY FEATURES


Frost Free

Digital Thermostat
Panel-Ready Door
Chilled Tap System

Black Cabinet
Fits Full 1/2 Barrel Keg
Stainless Steel Floor Cover
LED Lighting
Operates 32-50ºF

Tap Cool System
34.5"H x 23.63"W x 26.63"D

DESCRIPTION

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.
The SBC635MBIIF features a large interior that can hold a full half, quarter, 1/6 or mini keg. It features a front-breathing design for built-in installation under counters, with a panel-ready door to allow seamless integration into your own cabinet design. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. Users provide their own handles to complete the custom look.
This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning the cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation. Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.
FEATURES




Full-sized beer dispenser
Large interior can accept a full half barrel keg


Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter


Frost-free operation
No-frost operation for minimum user maintenance


Panel-ready door
Integrated stainless steel door frame allows you to mount a panel over the front for a custom look that blends into your own cabinetry design. Handle not included (panel size: 23 7/16" W x 30 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)


Digital thermostat
Electronic controls ensure easy temperature management for optimum beer storage


Complete tap kit
Includes a 5 lb. CO2 tank and regulator, draft arm, dual Sankey American tap, connection hardware, and cleaning kit


Chilled tap system
Unique "cold pipe" addition ensures beer stays cold inside the tap tower, reducing the amount of foam keeping every pour at its best


Stainless steel drip tray
Two-piece drip tray included to help catch spills


Convertible to a refrigerator
Includes two adjustable glass shelves for alternate storage


Stainless steel guard rail
Durable railing makes it easier to neaten service


Sealed back
Space saving design with easier cleanability


LED lighting
Interior LED lighting offers an efficient and attractive view


Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth


Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals





SPECIFICATIONS






Overview



Height of Cabinet
34.5" (88 cm)


Width
23.63" (60 cm)


Depth
26.63" (68 cm)


Depth with door at 90°
48.25" (123 cm)


Capacity
6.5 cu.ft. (184 L)


Defrost Type
Frost-Free


Door
Panel-Ready


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Energy Usage/Year
308.0kWh/year


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
106.0 lbs. (48 kg)


Shipping Weight
132.0 lbs. (60 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101050287











Kegerator



Door Swing
RHD


Reversible
Factory Reversible


Tap Kit
Yes


Height with Tap
50.0" (127 cm)


Number of Taps
1


Adjustable Shelves
Yes


Shelf Type
Glass


Shelf Qty
2


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant
R600a


Refrigerant Amount
1.2 oz.


High Side PSI
277.0


Low Side PSI
103.0


Inter Height
27.75" (70 cm)


Interior Width
19.25" (49 cm)


Interior Depth
24.25" (62 cm)


Compressor Step Height
6.25" (16 cm)


Compressor Step Width
19.25" (49 cm)


Compressor Step Depth
9.75" (25 cm)


Surface
Stainless Steel


Temperature Range
32º to 50ºF
