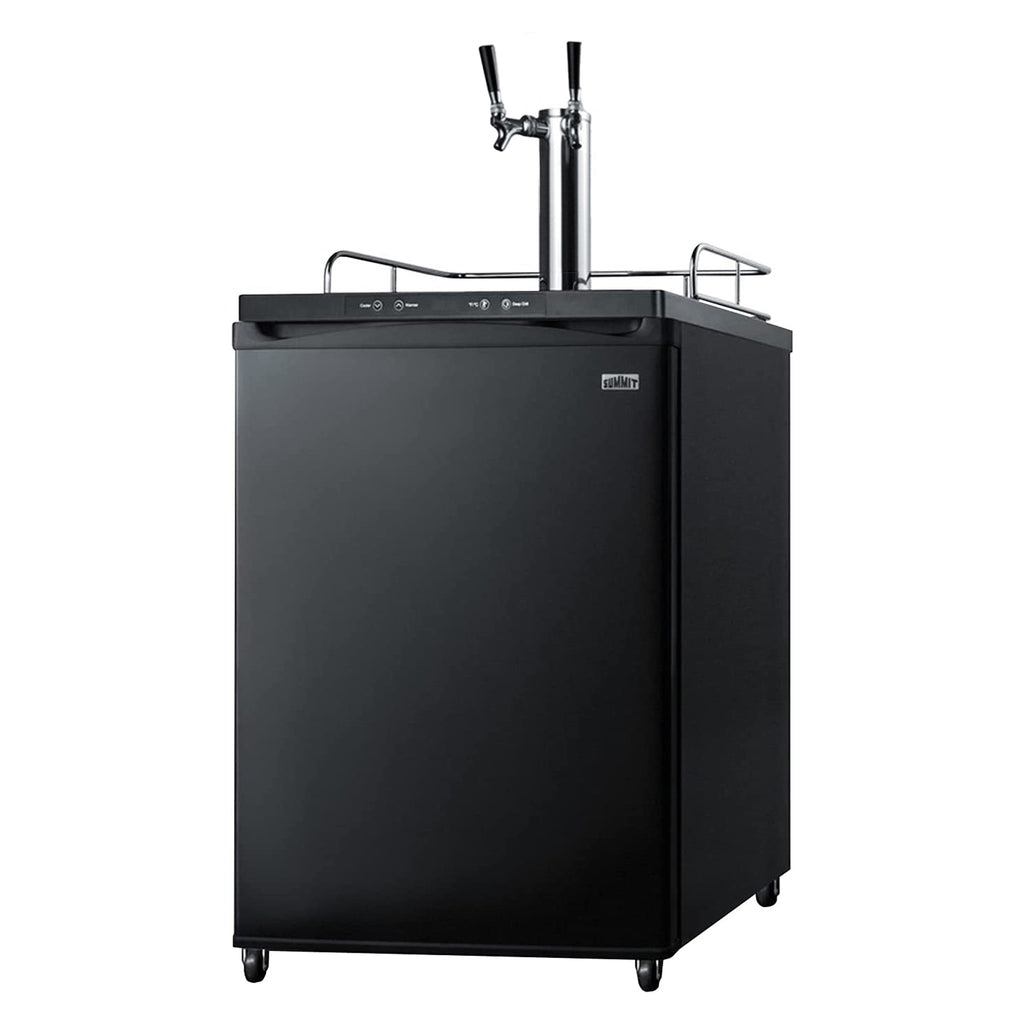

Summit | 5.6 cu. ft. Built-In Dual Kegerator (SBC635MBI7TWIN)

Flat rate shipping click HERE
24" wide kegerator perfect for commercial or residential settings. Digital thermostat lets you set the ideal temperature for keg service.

KEY FEATURES


Auto Defrost
Digital Thermostat
Black Cabinet
Deep Chill Function
Fits Full Half Barrel, 2 x 1/6 Barrel or Pony Kegs
Stainless Steel Floor Cover
Operates 33-50ºF

33.5"H x 24.0" W x 25.88"D

DESCRIPTION

Summit Commercial offers a versatile line of full-sized built-in beer dispensers designed for use in commercial establishments
The SBC635MBI7TWIN is a full-sized beer dispenser that can store a full half barrel keg or two 1/6 barrels to best accommodate all tastes. It features a front-breathing design for built-in installation under counters, with a jet black exterior finish. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.
Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey dual tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.
FEATURES



















Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments


Full-sized beer dispenser
Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg


Built-in capable
Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual


Dual tap system
Twin taps let you serve two different types of beer from two 1/6 sized (sixtel) kegs


Tap Kit
Includes a regulator, draft arm, Sankey American tap, and connection hardware


Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit


Ideal beer temperature
Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature


Automatic defrost
Reduced user maintenance with auto defrost operation


Fully finished black cabinet
Allows the unit to be used freestanding






Reversible door
User-reversible door swing for added flexibility


Casters included (ship unassembled)
To make the beer dispenser portable, install this set of 2 1/2" high locking casters


Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service


Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs


Drip tray
Removable drip tray catches spills to help contain the mess


Deep Chill function
Great for getting faster cooling results when loading your first keg


100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations













SPECIFICATIONS









Overview



Height of Cabinet
33.5" (85 cm)


Width
24.0" (61 cm)


Width with Door Open
25.0" (64 cm)


Depth
25.88" (66 cm)


Depth with door at 90°
47.5" (121 cm)


Capacity
5.6 cu.ft. (159 L)


Defrost Type
Automatic


Door
Black


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
0.86


Voltage/Frequency
115 V AC/60 Hz


Weight
110.0 lbs. (50 kg)


Shipping Weight
142.0 lbs. (64 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101051611



Kegerator



Door Swing
RHD


Reversible
Yes


Tap Kit
Yes


Number of Taps
2


Thermostat Type
Digital


Fan Type
Exterior


Refrigerant
R600a


Refrigerant Amount
1.13 oz.


High Side PSI
250.0


Low Side PSI
110.0


Inter Height
28.0" (71 cm)


Interior Width
20.5" (52 cm)


Interior Depth
19.0" (48 cm)


Compressor Step Height
8.25" (21 cm)


Level Legs Qty
4


Wheel Qty
4


Temperature Range
33º to 50º F











DOWNLOADS


BROCHURE w/ DRAWINGS


SBC635MBI7TWIN.pdf




TECHNICAL DRAWING (.dwg) SBC635MBI_SBC635MBI7__A-C_2000_.dwg





USE & CARE SBC635MBI_OS_Manual_rvsd_9-1-16.pdf-1-16.pdf


MSDS INFORMATIONR600a_K.pdf
