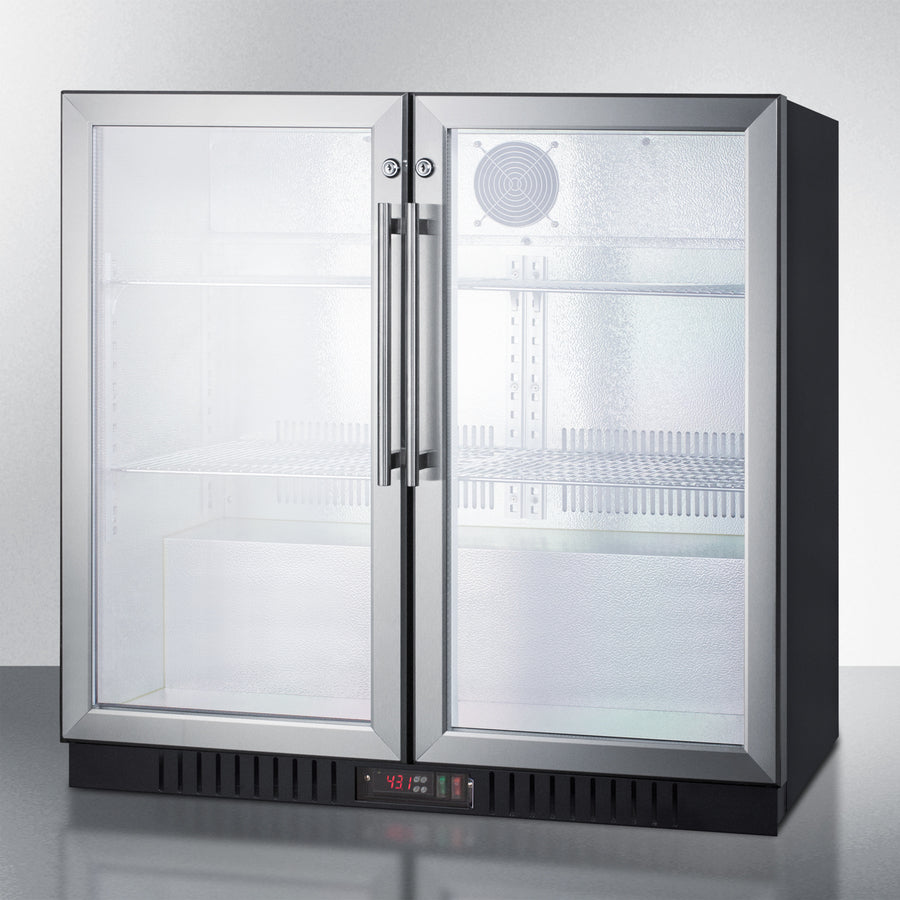

Summit | 36" Wide Freestanding Commercial Beverage Center (SCR7012DB)

Flat rate shipping click HERE
36" wide freestanding beverage centre perfect for residential and commercial settings. Less than 20" deep for ideal back bar use.

KEY FEATURES



34.13" H x 35.5" W x 19.63" D
Auto Defrost
Freestanding Use With Fully Finished Black Cabinet
Digital Thermostat
Interior Light
CARB Compliant
Dual Keyed Locks

DESCRIPTION

SUMMIT's SCR7012DB is a commercial beverage merchandiser designed to maximize impulse sales.This commercially approved all-refrigerator utilizes automatic defrost for low maintenance, with a digital thermostat for easy temperature control. Adjustable chrome shelves on a cantilevered system let you customize the hammered aluminum interior to accommodate different sized items. Full interior lighting ensures an attractive product display.Two solid glass doors are trimmed with stainless steel and equipped with front-mounted locks for added security. Both are self-closing to help ensure stored items aren't accidentally left exposed to room temperature. Stainless steel handles complete the professional look. This unit comes with a textured black cabinet finish.This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.
FEATURES























Automatic defrost
Reduced maintenance with auto defrost system


Commercially approved
ETL-S Approved to ANSI-NSF Standard 7 for use in commercial establishments


Two glass doors
Solid glass doors provide a clear view of interior contents


Two factory installed locks
Protect contents in both sections with a key lock on each door


Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up


Digital thermostat
Electronic controls located in the front kickplate for easy temperature management






Interior light
Illuminates the interior for a an attractive view of stored contents


Stainless steel trim on doors
Added touch of elegance with a stainless steel door trim


Fully finished textured black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations






SPECIFICATIONS























Overview



Height of Cabinet
34.13" (87 cm)


Width
35.5" (90 cm)


Depth
19.63" (50 cm)


Depth with Handle
21.13" (54 cm)


Depth with door at 90°
36.0" (91 cm)


Capacity
7.4 cu.ft. (210 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.2


Voltage/Frequency
115 V AC/60 Hz


Weight
150.0 lbs. (68 kg)


Shipping Weight
150.0 lbs. (68 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101054223








Refrigerator Features



Door Swing
French


Shelf Type
Chrome


Shelf Qty
4


Adjustable Shelves
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
1.92oz.


High Side PSI
215.0


Low Side PSI
60.0


Interior Light
Yes











Dimensions



Interior Height
28.25" (72 cm)


Interior Width
32.5" (83 cm)


Interior Depth
15.0" (38 cm)


Compressor Step Height
7.5" (19 cm)


Compressor Step Width
32.5" (83 cm)


Compressor Step Depth
7.25" (18 cm)







DOWNLOADS










BROCHURE w/ DRAWINGS

SCR7012DB.pdf




TECHNICAL DRAWING (.dwg)

SCR7012DBEVERAGECENTERA-C2000.dwg







USE & CARE

SCR700B_SCR7012DB_Manual_3-29-2019.pdf







TROUBLESHOOTING How_to_disable_the_digital_thermostat_evaporator_sensor.pdf
