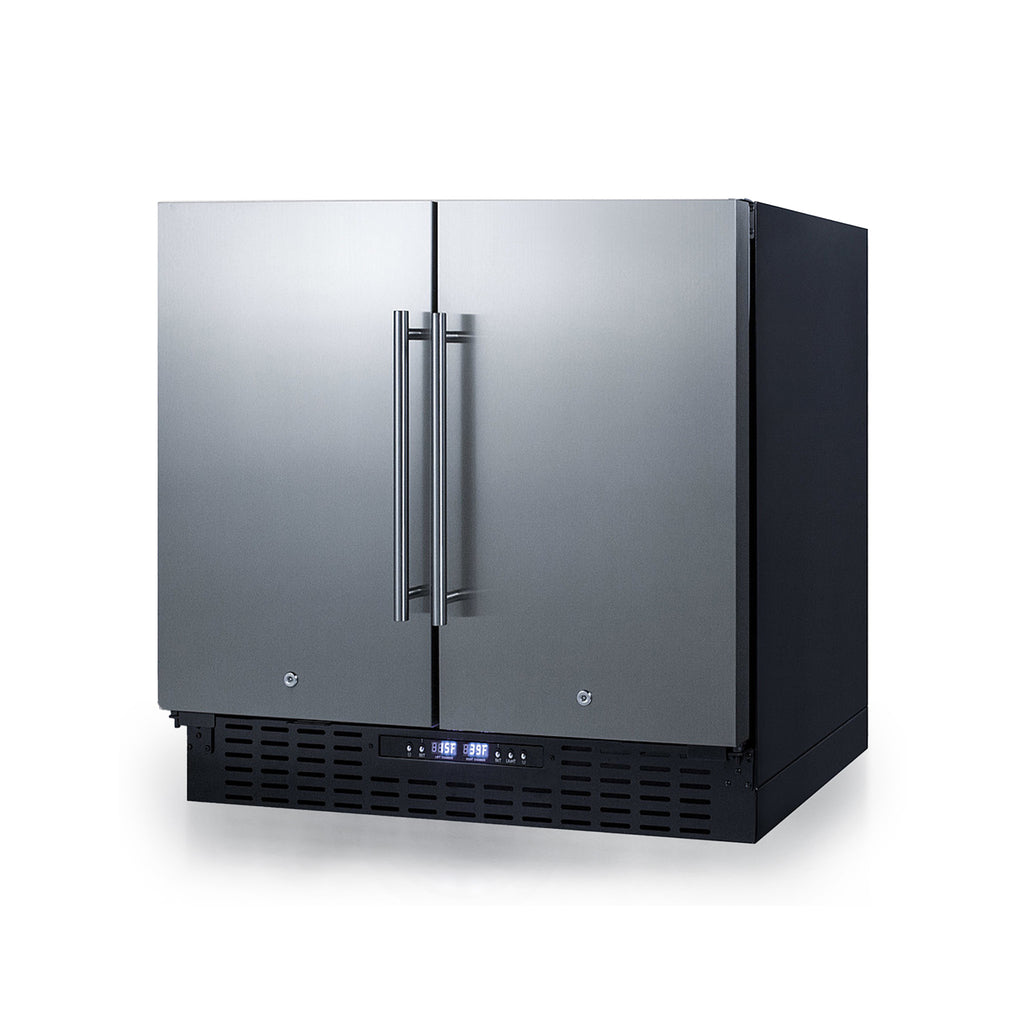

Summit | 36" Wide Built-In Refrigerator-Freezer, ADA Compliant (FFRF36ADA)

Flat rate shipping click HERE






Fully frost-free, ADA compliant undercounter refrigerator-freezer with side-by-side 2.9 cu ft freezer and 2.9 cu ft refrigerator.







31.5" H x 35.5" W x 24.25" D


DESCRIPTION


SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The FFRF36IFADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. A stainless steel kickplate adds elegance to any space. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36IFADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. The FFRF36ADA is sized at 31 5/8 inches high to fit under lower ADA compliant counters. For this unit in standard height, see the FFRF36IF. NOTE: Due to its larger commercial design, the FFRF36IFADA requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
FEATURES


































Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings


ADA compliant design
31 5/8 height for use under lower ADA compliant counters


Built-in capable
Front-breathing system allows the unit to be used built-in


All-in-one design
Separate refrigerator and freezer sections with single compressor operation


Panel-ready doors
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles


Frost-free operation
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments


Digital thermostat
Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius


LED lighting (refrigerator)
Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation


Adjustable shelves (5 placement options)
Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation






Convertible freezer
Freezer compartment temperature can be set to serve as a second refrigerator as needed


Internal fans
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability


Temperature memory function
In the event of power loss, the unit will retain its last temperature settings upon power recovery


Fully finished cabinet
Allows the unit to be used freestanding


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


Leveling legs
Two leveling legs ensure the unit is even when placed on uneven surfaces


100% CFC free
Environmentally friendly design without ozone-damaging chemicals



SPECIFICATIONS















































































Overview



Height of Cabinet
31.5" (80 cm)


Width
35.5" (90 cm)


Depth
24.25" (62 cm)


Depth with door at 90°
42.0" (107 cm)


Capacity
5.8 cu.ft. (164 L)


Defrost Type
Frost-Free


Door
Panel-Ready


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Energy Usage/Year
504.0kWh/year


Amps
1.3


Voltage/Frequency
115 V AC/60 Hz


Weight
160.0 lbs. (73 kg)


Shipping Weight
200.0 lbs. (91 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101067940



















Refrigerator-Freezer



Door Swing
French


Adjustable Shelves
Yes


Interior Light
Yes


Refrigerator - Interior Height
23.5" (60 cm)


Refrigerator - Interior Width
12.75" (32 cm)


Refrigerator - Interior Depth
16.75" (43 cm)


Refrigerator - Capacity
2.9 cu.ft


Refrigerator - Shelf Type
Glass


Refrigerator - Shelf Qty
3


Refrigerator - Temperature Range
36°F to 46°F


Refrigerator - Refrigerant Type
R600a


Refrigerator - Refrigerant Amount
1.59 oz.


Freezer - Interior Height
23.5" (60 cm)


Freezer - Interior Width
12.75" (32 cm)


Freezer - Interior Depth
16.75" (43 cm)


Freezer - Capacity
2.9 cu.ft


Freezer - Shelf Type
Chrome


Freezer - Shelf Qty
3


Thermostat Type
Digital


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.59 oz.


High Side PSI
150.0


Low Side PSI
50.0


Level Legs
2


Freezer - Temperature Range
-22°F to 46°F


Compressor Step Height
4.75" (12 cm)


Compressor Step Width
12.75" (32 cm)


Compressor Step Depth
4.25" (11 cm)



DOWNLOADS































































BROCHURE w/ DRAWINGS

























FFRF36IFADA.pdf









TECHNICAL DRAWING (.dwg)













FFRF36IFADA_REF._FREEZER__A-C_2018_.dwg











USE & CARE










FFRF36_Use_and_Care.pdf



IF_Instructions_-_General.pdf








MSDS


R600a_K.pdf
