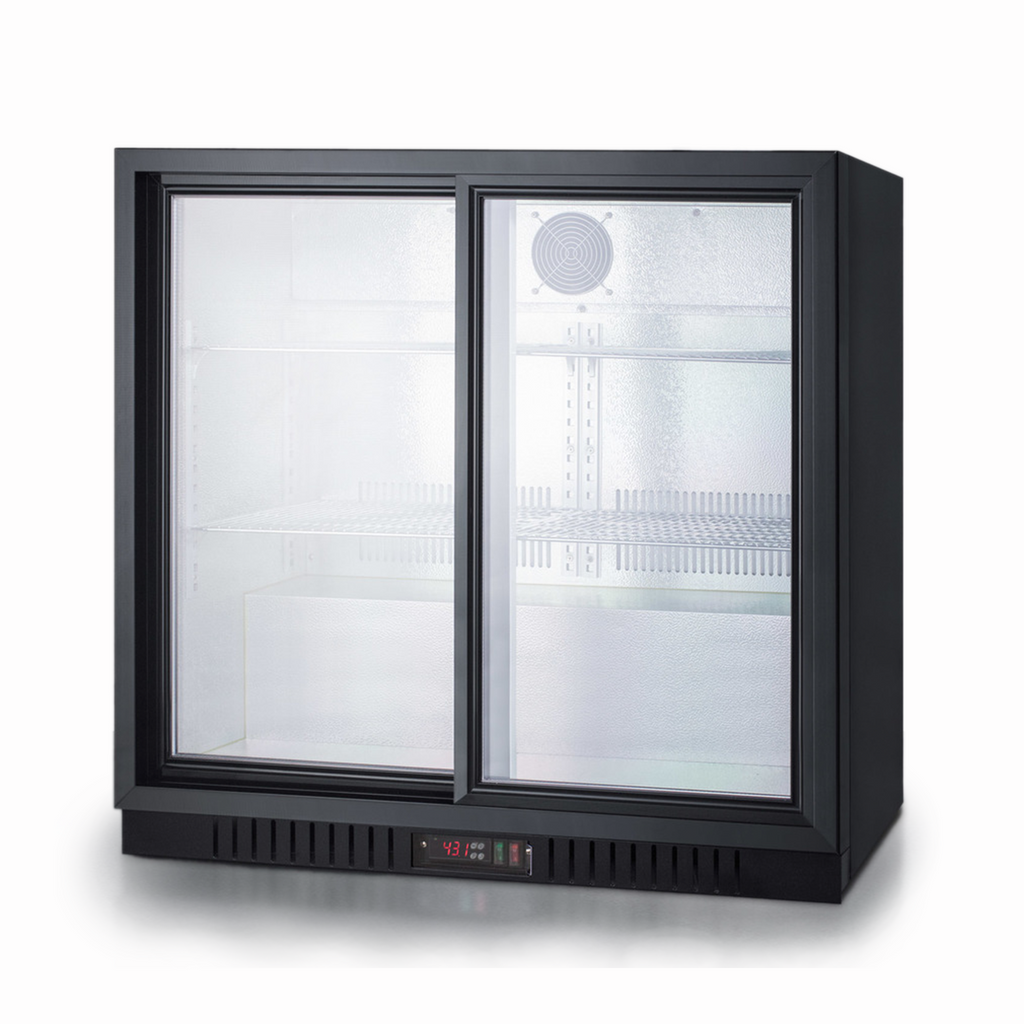

Summit | 36" Wide Beverage Center (SCR700B)

Flat rate shipping click HERE
36" wide freestanding beverage centre perfect for residential and commercial settings.

KEY FEATURES



34.13" H x 35.5" W x 19.63" D
Auto Defrost
Freestanding Use With Fully Finished Black Cabinet
Digital Thermostat
Interior Light
CARB Compliant
Keyed Lock

DESCRIPTION

SUMMIT's SCR700B is a versatile beverage merchandiser designed to maximize impulse sales.This commercially approved refrigerator utilizes automatic defrost for low maintenance use. Two sliding glass doors offer a full view inside the 7.4 cu.ft. hammered aluminum interior, with interior lighting for added product visibility and fan-forced cooling to help improve temperature distribution. Adjustable chrome shelves allow you to rearrange storage to accommodate a variety of sizes. This unit includes a factory installed lock for added security and a digital thermostat for easy temperature management.The SCR700B comes with a fully finished black cabinet. This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.
FEATURES



























Back bar design
Sized at just 20" deep for an easy fit behind the bar


Commercially approved
ETL-S Approved to ANSI-NSF Standard 7 for use in commercial establishments


Automatic defrost
Reduced maintenance with auto defrost system


Two sliding glass doors
Solid glass doors glide open easily while providing a clear view of stored items


Digital thermostat
Electronic controls located in the front kickplate for easy temperature management


Factory installed lock
Single keyed lock for sliding doors, with two keys included






Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up


Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Interior light
Illuminates the interior for a an attractive view of stored contents


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations









SPECIFICATIONS
























Overview



Height of Cabinet
34.13" (87 cm)


Width
35.5" (90 cm)


Depth
20.25" (51 cm)


Capacity
7.4 cu.ft. (210 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.2


Voltage/Frequency
115 V AC/60 Hz


Weight
135.0 lbs. (61 kg)


Shipping Weight
140.0 lbs. (64 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC


761101054216










Refrigerator Features



Door Swing
Sliding


Shelf Type
Chrome


Shelf Qty
4


Adjustable Shelves
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
1.92oz.


High Side PSI
215.0


Low Side PSI
60.0


Interior Light
Yes














Dimensions



Interior Height
28.25" (72 cm)


Interior Width
32.25" (82 cm)


Interior Depth
15.0" (38 cm)


Compressor Step Height
7.25" (18 cm)


Compressor Step Width
32.25" (82 cm)


Compressor Step Depth
7.25" (18 cm)







DOWNLOADS










BROCHURE w/ DRAWINGS


SCR700B.pdf




TECHNICAL DRAWING (.dwg)



SCR700BEVERAGECENTERA-C2000.dwg








USE & CARE

SCR700B_SCR7012DB_Manual_3-29-2019.pdf







TROUBLESHOOTING
How_to_disable_the_digital_thermostat_evaporator_sensor.pdf
