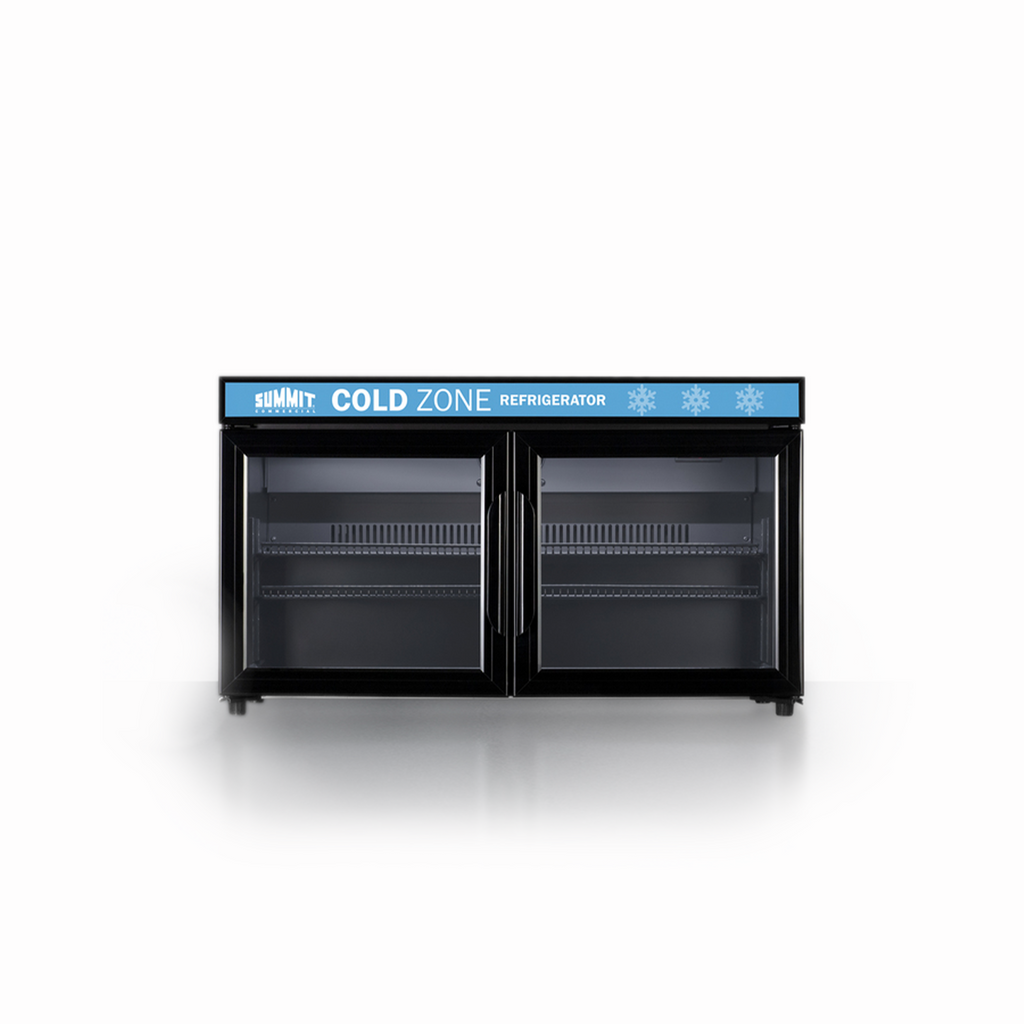

Summit | 36" Wide Back Bar Beverage Center, Shallow Depth (SCR3502D)

Flat rate shipping click HERE
36" wide countertop beverage centre perfect for upgrading back bars in residential or commercial settings. Less than 20" deep for ideal back bar use.

KEY FEATURES


Auto Defrost
Freestanding Use With Fully Finished Black Cabinet
Digital Thermostat
Exterior LED Panel for Custom Decals
Interior LED Lighting
Shallow Depth Ideal for Small Footprint Spaces
CARB Compliant
21.25" H x 36.0" W x 17.5" D


DESCRIPTION

Summit Commercial refrigerators are designed for convenient use in an attractive presentation to increase impulse purchases. The SCR3502D is a 17.5" shallow depth single-zone beverage refrigerator with a 36" width, making it ideal for countertops and use on or in shelves (with proper ventilation). It is SGS-listed to NSF-7 standards for use in commercial settings and is designed for freestanding use. Its French door swing with two glass doors offers a full view inside the 3.2 cu.ft. interior, while pre-installed curved, sturdy black handles make for easy opening of the unit. Both doors have a self-closing feature to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. The fully-finished black cabinet suits any setting, with a sealed back for easier cleaning. Four leveling legs keep the unit level on uneven surfaces.Inside, the SCR3502D utilizes automatic defrost operation for minimal user maintenance. LED lighting illuminates the interior, while the front LED panel affords the ability for users to insert their own decal for a truly customizable look. Four black wire shelves accommodate a variety of storage options, including condiments, cans, and other refrigerated items. Additionally,the shelves can be removed to store bottles or larger food and beverage items. Each shelf has a front lip to ensure products are secure when the door is opened and closed. Digital controls located on the inside offer easy temperature management with a readout in Celsius. For added peace of mind, an audible high/low temperature alarm sounds if the temperature in the unit goes out of the recommended range.With its compact dimensions and customizable features, the SCR3502D is perfect for back bars, retail and convenience stores, supermarkets, and similar commercial environments seeking dependable refrigeration storage in a versatile design that fits in virtually any small space. For this unit with front locks, see the SCR3502DLL.
FEATURES



























17½" shallow depth
Ideal for back bars, grocery stores, and similar spaces with limited footprint space


Commercially approved
Meets NSF-7 sanitation standards and UL-471 for use in commercial environments


Exterior LED panel
LED panel allows users to insert their own decal for a truly customizable look (size insert at 35.67" W x 2.67" H)


French door swing
Two side-by-side doors with French door opening


Self-closing doors
Doors will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures


Automatic defrost
Reduced user maintenance with automatic defrost system


Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom


Removable shelves
Four black wire shelves accommodate a variety of storage options or can be removed to store larger food and beverage items


Interior LED lighting
Illuminates the interior for an easy view of stored contents






Digital thermostat
Electronic controls located on the inside for easy temperature management with a readout in Celsius


On/off switch
Easily allows users to manage the interior lighting to best meet their needs


High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range


Black handles
Sturdy, curved black handles on each door provide for easy opening


Fully finished black cabinet
Allows the unit to be used freestanding


Sealed back
Space-saving design that offers easier cleanability


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations








COMPARE MODELS






















SCR3502D

SCR3502DLL

















SPECIFICATIONS






















Overview



Height of Cabinet
21.25" (54 cm)


Width
36.0" (91 cm)


Width with Door Open
39.0" (99 cm)


Depth
17.5" (44 cm)


Depth with Handle
18.5" (47 cm)


Depth with door at 90°
34.25" (87 cm)


Capacity
3.2 cu.ft. (91 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
UL 471 by SGS


Canadian Electrical Safety
CSA C22.2 No. 120 by SGS


Sanitation
NSF 7 by SGS


Amps
1.2


Voltage/Frequency
115 V AC/60 Hz


Weight
86.0 lbs. (39 kg)


Shipping Weight
91.0 lbs. (41 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101076331








Refrigerator Features



Door Swing
French


Shelf Type
Wire


Shelf Qty
4


Adjustable Shelves
Yes


Can Storage
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.96oz.


High Side PSI
320.0


Low Side PSI
130.0


Level Legs Qty
4


Interior Light
Yes


Temperature Range
2 to 6ºC/36°F to 43°F











Dimensions



Interior Height
13.63" (35 cm)


Interior Width
33.0" (84 cm)


Interior Depth
13.0" (33 cm)


Compressor Step Height
7.25" (18 cm)


Compressor Step Width
33.0" (84 cm)


Compressor Step Depth
7.25" (18 cm)







DOWNLOADS










BROCHURE w/ DRAWINGS

SCR3502D.pdf




TECHNICAL DRAWING (.dwg)


SCR35O2D_BEV._CENTER__A-C_2018_.dwg








USE & CARE


SCR3502D_ACR3512D_Use_and_Care_V4_07.2021.pdf
