Description
Flat rate shipping click HERE

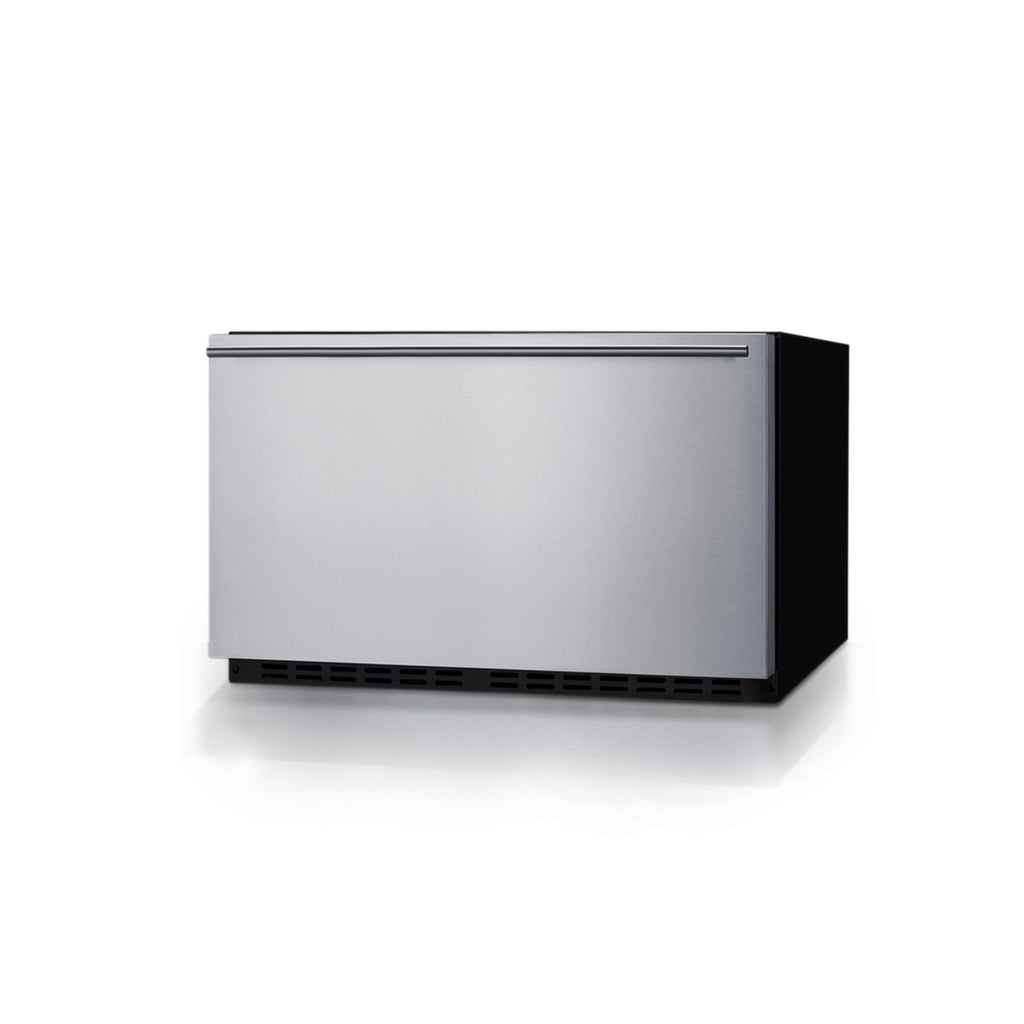

Weatherproof design with a fully finished drawer front in stainless steel that can also accept overlay panels for a custom look
17.75" H x 29.5" W x 22.0" D
DESCRIPTION
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more.Note: Wood panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
FEATURES
30" wide single drawer refrigerator
2.5 cu.ft. all-refrigerator in a single drawer style
Weatherproof design for outdoor use
Durable construction allows safe installation in outdoor kitchens
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Built-in capable
Front-breathing design allows you to build the drawer into cabinetry
Panel-ready drawer front
Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)
304 grade stainless steel drawer
Drawer front and interior constructed from stainless steel for added durability and easy cleanability
Frost-free operation
Minimum user maintenance with a fully no-frost operation system
Digital thermostat
Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
LED lighting
Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
Drawer divider
Removable divider makes it easy to organize stored items
Glass shelf
Includes one half-sized shelf that lets you create more separation as needed
Internal fan
Fan-forced cooling ensures the unit is evenly cooled
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Professional handle
A sleek stainless steel handle adds an elegant touch to any setting
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if the drawer is left open longer than one minute
Sabbath Mode
Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
Child lock
Disables digital controls after two minutes of activity for added safety
Sealed back
Space-saving design with no exposed coils for easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
Height of Cabinet
17.75" (45 cm)
Width
29.5" (75 cm)
Depth
22.0" (56 cm)
Depth with Handle
23.5" (60 cm)
Depth with door at 90°
37.88" (96 cm)
Capacity
2.5 cu.ft. (71 L)
Defrost Type
Frost-Free
Door
Stainless Steel/Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Energy Usage/Year
280.0kWh/year
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
77.0 lbs. (35 kg)
Shipping Weight
85.0 lbs. (39 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101088990
Refrigerator Features
Sabbath Mode
Yes
Door Swing
Drawer
Reversible
No
Shelf Type
Glass
Shelf Qty
1
Adjustable Shelves
Yes
Thermostat Type
Digital
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
0.92oz.
High Side PSI
270.0
Low Side PSI
105.0
Level Legs Qty
4
Interior Light
Yes
Temperature Range
36 to 43ºF
Sound Level
34.3 dB
Dimensions
Interior Height
13.0" (33 cm)
Interior Width
23.63" (60 cm)
Interior Depth
15.5" (39 cm)
Compressor Step Height
6.5" (17 cm)
Compressor Step Width
23.63" (60 cm)
Compressor Step Depth
4.5" (11 cm)
DOWNLOADS
BROCHURE w/ DRAWINGS
SDR301OS.pdf
TECHNICAL DRAWING (.dwg)
SDR30.dwg
ASSEMBLY DRAWING
SDR30-Assembly.pdf
USE & CARE
FF1DSS_FF1DSS24_SDR24_SDR30_SDR36_Use_and_Care_08-29-22.pdf
