Summit | 30" Wide Built-In Wine/Beverage Center (SWBV3067B)

Flat rate shipping click HERE
30" wide  built-in beverage centre perfect for residential and commercial settings. Seamless stainless steel door trim bring true elegance under the counter.
DIMENSIONS


34.38" H x 29.5" W x 22.5" D

DESCRIPTION

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

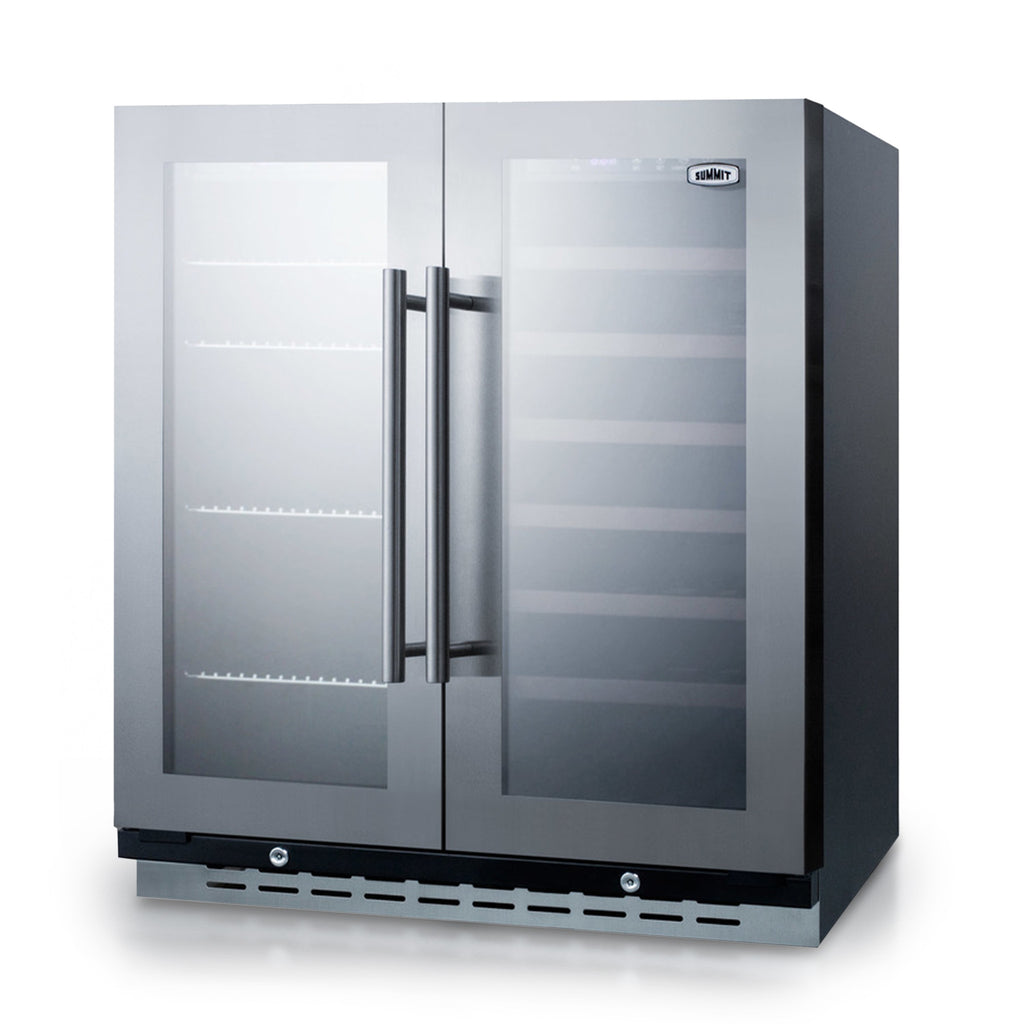

The SWBV3067B is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two glass doors with a unique French door swing and seamless stainless steel trim. Both include factory installed locks and professional handles. A stainless steel kickplate completes the look.
Two separate zones feature independent digital thermostats, letting you preserve red wine under warmer temperature conditions while keeping white wine or craft beer at colder temperatures. We provide six wooden wine shelves in a jet black finish and four wire chrome shelves, letting you arrange the shelving configuration to best suit your storage needs. Recessed LED lighting lets you display all items under an attractive, energy efficient glow.
With a professional look and innovative design, SUMMIT SWBV3067B is a unique and versatile addition to any home. For a similar unit designed solely for wine storage, see the SWC3066.



FEATURES
























Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry

Fully finished cabinet
Allows the unit to be used freestanding

Dual zone design
Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Recessed LED lighting
Gentle and energy efficient LED lighting offers an elegant view of stored items

Digital thermostats
Each zone is equipped with electronic temperature controls for easy and intuitive temperature management

Adjustable wooden and chrome shelves
Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles

Professional handles
Sleek stainless steel handles add an elegant touch to any setting



Glass doors
French door swing offers a modern look, with stainless steel door trim for an added accent

Seamless stainless steel trimmed door frame
Single-piece door trim offers a more deluxe look

Factory installed locks
Keyed locks on both zones offer separate security for interior contents

Automatic defrost
Reduced user maintenance with automatic defrost

Fan-forced cooling
Internal fans ensure both interiors have a consistent temperature from top to bottom

100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations















SPECIFICATIONS
























Overview



Height of Cabinet
34.38" (87 cm)


Width
29.5" (75 cm)


Depth
22.5" (57 cm)


Depth with Handle
24.25" (62 cm)


Depth with door at 90°
36.0" (91 cm)


Capacity
5.8 cu.ft. (164 L)


Bottles
33 bottles


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.25


Voltage/Frequency
115 V AC/60 Hz


Weight
132.0 lbs. (60 kg)


Shipping Weight
176.0 lbs. (80 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101055794











Wine Cellar



Number of Zones
2


Door Swing
French


Adjustable Shelves
Yes


Shelf Type
Wire and Wood


Shelf Qty
10


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.06 oz.


High Side PSI
150.0


Low Side PSI
50.0


Interior Height 1
27.38" (70 cm)


Interior Width 1
11.75" (30 cm)


Interior Depth 1
17.5" (44 cm)


Compressor Step Width
11.75" (30 cm)


Compressor Step Depth
5.0" (13 cm)


Level Legs
4


Temperature Range
41 to 64ºF


Interior Height 2
27.38" (70 cm)


Interior Width 2
11.75" (30 cm)


Interior Depth 2
17.5" (44 cm)












DOWNLOADS











BROCHURE w/ DRAWINGS

SWBV3067B.pdf



TECHNICAL DRAWING (.dwg)

SWBV3067WINEBEVERAGEA-C2000.dwg









USE & CARE SWC3066B_SWBV3067B_Manual_3-29-2019.pdf
