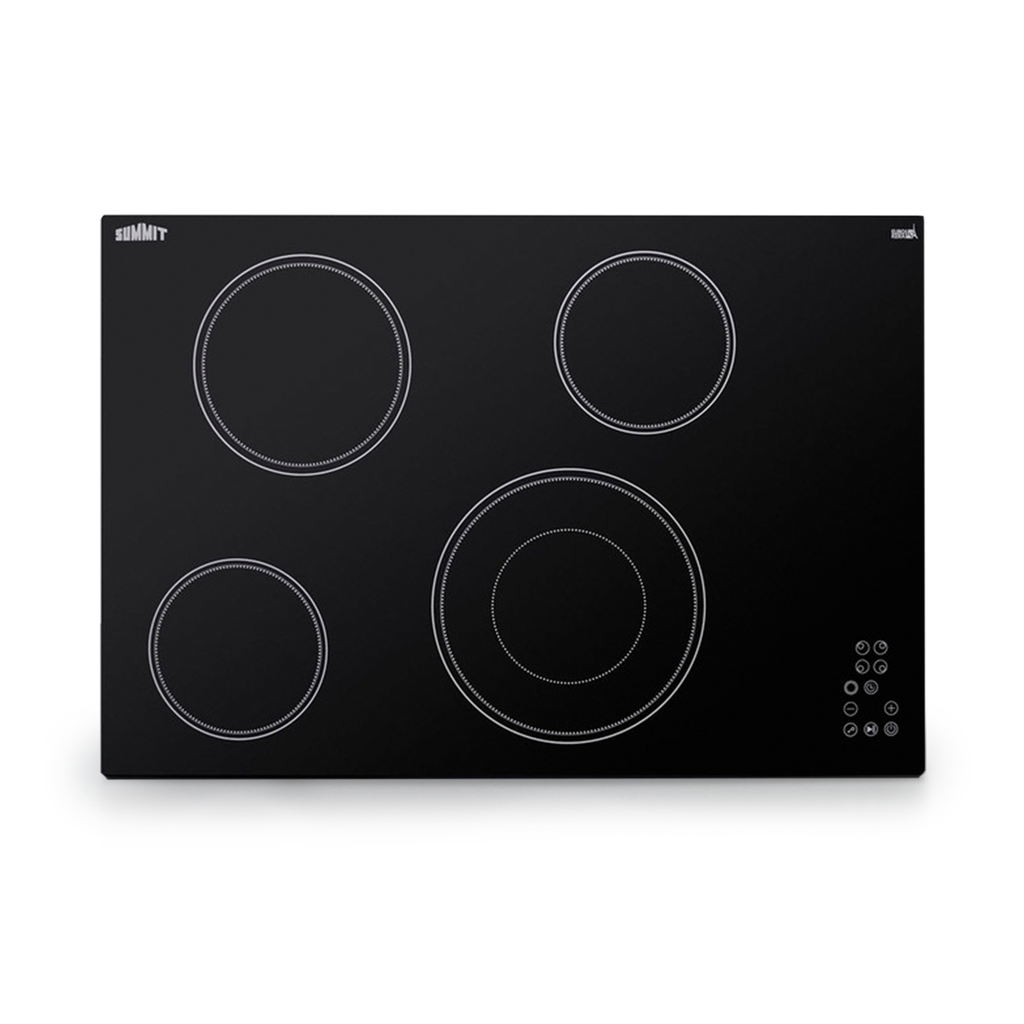

Summit | 30" Wide 208-240V 4-Burner Radiant Cooktop (CR4B30T11B)

Touch controls for intuitive cooking, with 10" dual ring element to accommodate larger sized cookware
2.13" H x 30.25" W x 20.5" D(5cm H x 77cm W x 52cm D)
FEATURES

30" wide 5-burner radiant cooktopDesigned to fit common 29 1/2" x 19 5/8" counter cutouts
EuroKera glass surfaceEasy cleanup and elegant style on a smooth ceramic glass surface in a clean jet black finish
Extra large 2500W burnerConveniently located front right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed2 Standard 1200W burnersFront left and front right burners are 6.5" in diameter to meet most cooking needsDual cooking zonesRear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookwareDigital touch controlsEasy operation with a digital control panel and digital display conveniently centered upfront9 power levelsSelect and adjust your heating levels at the touch of a buttonTimerAllows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is upResidual heat indicator lightIndicator shows when the surface is still hot to touchADA compliant designUpfront controls meet ADA guidelines for easier accessibiltyChild lockSafety feature lets you lock the cooktop to prevent unsupervised heatingSafety cut-off functionIf the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns offAutomatic shutoffIf a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating208-240V operationRequires professional hardwired installation (cord not included)
DESCRIPTION

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.The CR4B30T11B is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Four elements let you meet a variety of cooking needs, with an extra large 2500W 9 3/4" front dual zone element ideal for woks, Dutch ovens, and other larger cooking vessels. The inner element is just 5 1/2", perfect for smaller pots used to melt butter, chocolate, and more. This unit includes an 1800W 8" burner located in the rear left, great for boiling water or heating up sauces in large pans while the front element is also in use. Two 6 1/2" 1200W elements accommodate smaller cookware. The upfront digital controls are located to the right, ensuring you won't have to reach over the controls when adjusting your pots and pans. The temperature is easy to adjust with intuitive touch controls. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B30T11B brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as white glass finishes. Browse the full Summit lineup for more.
SPECIFICATIONS





Overview



Height of Cabinet
2.13" (5 cm)


Width
30.25" (77 cm)


Depth
20.5" (52 cm)


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
25.0


Voltage/Frequency
240 V AC/60 Hz


Weight
28.0 lbs. (13 kg)


Shipping Weight
29.0 lbs. (13 kg)


Parts & Labor Warranty
1 Year


UPC
761101078793



Electric Cooktop



Heating Type
Radiant


Surface
Glass


Element Type
Glasstop


Number of Elements
4


Controls
Digital


Cooking Timer
Yes


Countertop Cutout Height
3.2" (8 cm)


Countertop Cutout Width
29.5" (75 cm)


Countertop Cutout Depth
19.63" (50 cm)


Element #1 Size
6.5" (17 cm)


Element #1 Wattage
1200.0


Element #2 Size
8.0" (20 cm)


Element #2 Wattage
1800.0


Element #3 Size
6.5" (17 cm)


Element #3 Wattage
1200.0


Element #4 Size
9.75" (25 cm)


Element #4 Wattage
2500.0


Power Cord Included
No



DOWNLOADS



BROCHURE w/ DRAWINGS

CR4B30T11B.pdf










TECHNICAL DRAWING (.dwg)CR4B30T11B-LCR4BTB_COOKTOP__A-C_.dwg








ASSEMBLY DRAWINGCR4B30T11B-LCR4BTB_CUTOUT__1_.pdf








USE & CARECRH2BT30115_CRH2BT30230_CR4B30_CR45B30_CR5B36_SINC2B230_SINC2B115_SINC2B23_SIN4B_SINC5B_Use_and_Care__9.2023.pdf
