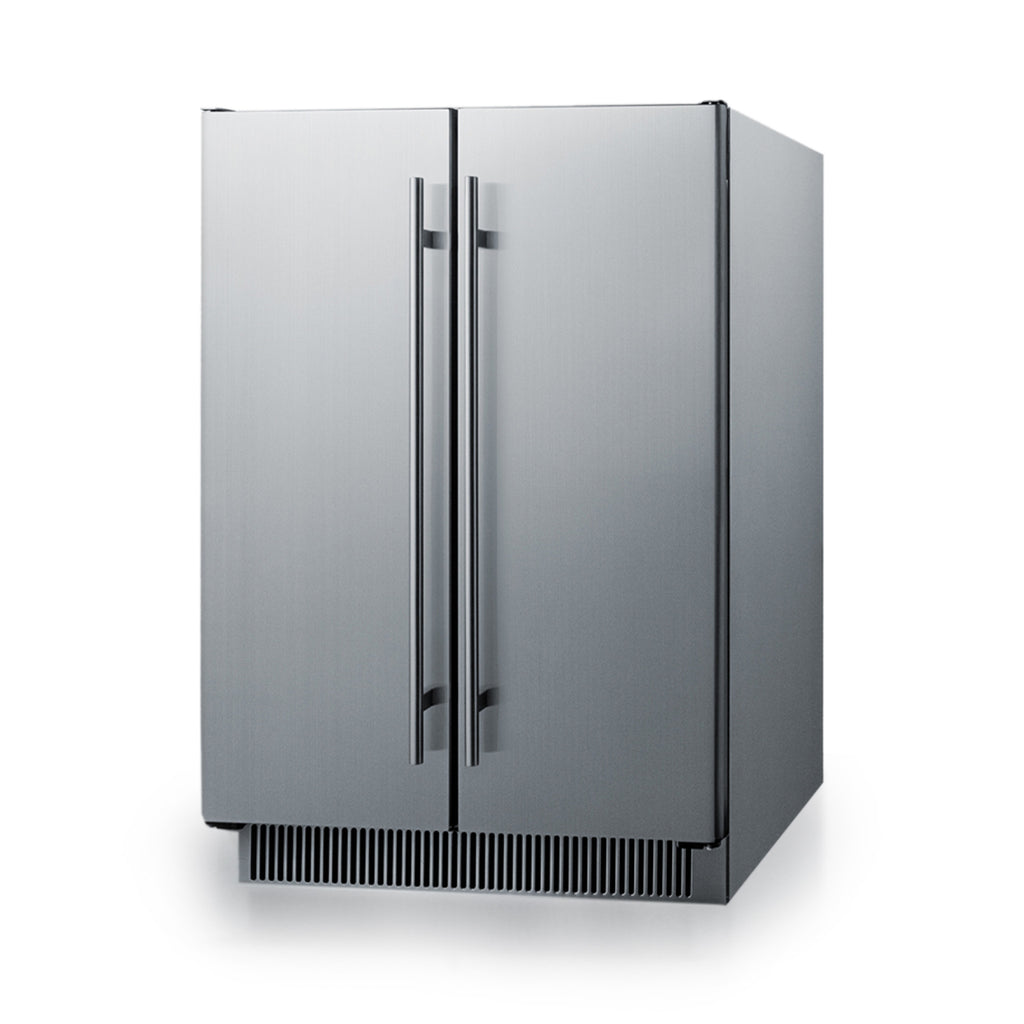

Summit | 24" Wide Built-In Outdoor Wine/Beverage Center (CL66FDOS)

Flat rate shipping click HERE
304 grade stainless steel construction for durable use in the outdoors, with a French door swing for dramatic presentation
KEY FEATURES


Automatic Defrost
Built-in Capable
Digital Thermostat
Dual Zone
Weatherproof
34.5"H x 23.88"W x 23.88"D


DESCRIPTION




The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.


Ideally sized with a 24" footprint, the CL66FDOS offers innovative storage for wine and craft beer in the outdoors. The exterior is fully constructed from weatherproof 304 grade stainless steel, including two French doors with sleek handles for a dramatic presentation. Our signature kickplate adds a modern accent. This unit can be built-in under counters or used freestanding. We include a four-piece caster set that can easily be installed to make the CL66FDOS a mobile unit.
Two independent zones let you keep your wine or craft beer collection stored at the right temperature, with separate digital thermostats for easy use. The red wine section includes six slide-out shelves that can accommodate up to 21 standard 750ml bottles of wine, while the cooler white wine or craft beer section includes frosted glass shelves that can hold wine or up to 60 12 oz. beer cans. The jet black interior is fully illuminated by recessed LED lighting. Additional features include an open door alarm, energy conservation mode, temperature memory function, and high/low temperature alarm that audibly warns if the unit goes out of the recommended temperature range.
With its versatile design and weatherproof construction, the CL66FDOS makes the perfect addition to outdoor kitchens in need of flexible storage.
FEATURES





































Weatherproof design
Solid construction allows placement in the outdoors


304 grade stainless steel exterior
Complete stainless steel construction ensures lasting durability and style


Two temperature zones
Independent temperature zones allow separate storage of wine and craft beer under the proper temperature conditions


Built-in capable
Make the best use of space by installing your unit under the counter and flush with other cabinets


French door swing
Two side-by-side doors with French door opening


Automatic defrost
Reduced maintenance with auto defrost system


Adjustable glass shelves
Frosted glass shelves with silver trim can accommodate up to 60 12 oz. cans of your favorite craft beer


Slide-out wine shelves
6 wine shelves are ideally sized to store up to 21 standard 750 ml bottles, with a silver trimmed accent for an added touch of style


Digital thermostat
Intuitive touch controls located inside the unit make temperature adjustment simple, with a temperature display in Celsius or Fahrenheit


LED lighting
Recessed LED lighting offers an elegant and efficient view of the interior






Open door alarm
Audible alarm will sound if the door is left ajar


Caster set
Unit ships with four casters (two locking) for users to install to make the refrigerator portable


Professional handles
Vertically mounted handles in brushed stainless steel, with a sleek 16mm diameter that matches many popular styles of cabinetry


Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom


Energy conservation mode
Lets you disable some of the electrical features to save on energy use


Sealed back
Space saving design with easier cleanability


Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss


Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended storage range


100% CFC free
Environmentally friendly design without ozone-damaging chemicals



























SPECIFICATIONS


























Overview



Height of Cabinet
34.5" (88 cm)


Width
23.88" (61 cm)


Depth
23.88" (61 cm)


Depth with Handle
25.5" (65 cm)


Depth with door at 90°
34.5" (88 cm)


Capacity
5.1 cu.ft. (144 L)


Bottles
21 bottles


Defrost Type
Automatic


Door
Stainless Steel


Cabinet
Stainless Steel


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Amps
1.5


Voltage/Frequency
115 V AC/60 Hz


Weight
101.0 lbs. (46 kg)


Shipping Weight
145.0 lbs. (66 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101056111



Wine Cellar



Number of Zones
2


Door Swing
French


Adjustable Shelves
Yes


Shelf Type
Glass and Wire


Shelf Qty
9


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.41 oz.


High Side PSI
277.0


Low Side PSI
103.0


Interior Height 1
26.0" (66 cm)


Interior Width 1
9.38" (24 cm)


Interior Depth 1
18.0" (46 cm)


Compressor Step Height
4.38" (11 cm)


Compressor Step Width
9.38" (24 cm)


Compressor Step Depth
5.5" (14 cm)


Level Legs
2


Wheels
4


Temperature Range
41 to 64ºF


Interior Height 2
26.0" (66 cm)


Interior Width 2
9.38" (24 cm)


Interior Depth 2
18.0" (46 cm)

















DOWNLOADS




BROCHURE w/ DRAWINGS
CL66FDOS.pdf






TECHNICAL DRAWING (.dwg)CL63FDOSWINECELLARREF.A-C2000.dwg




USE & CARECL66FDOS_Use___Care.pdf
