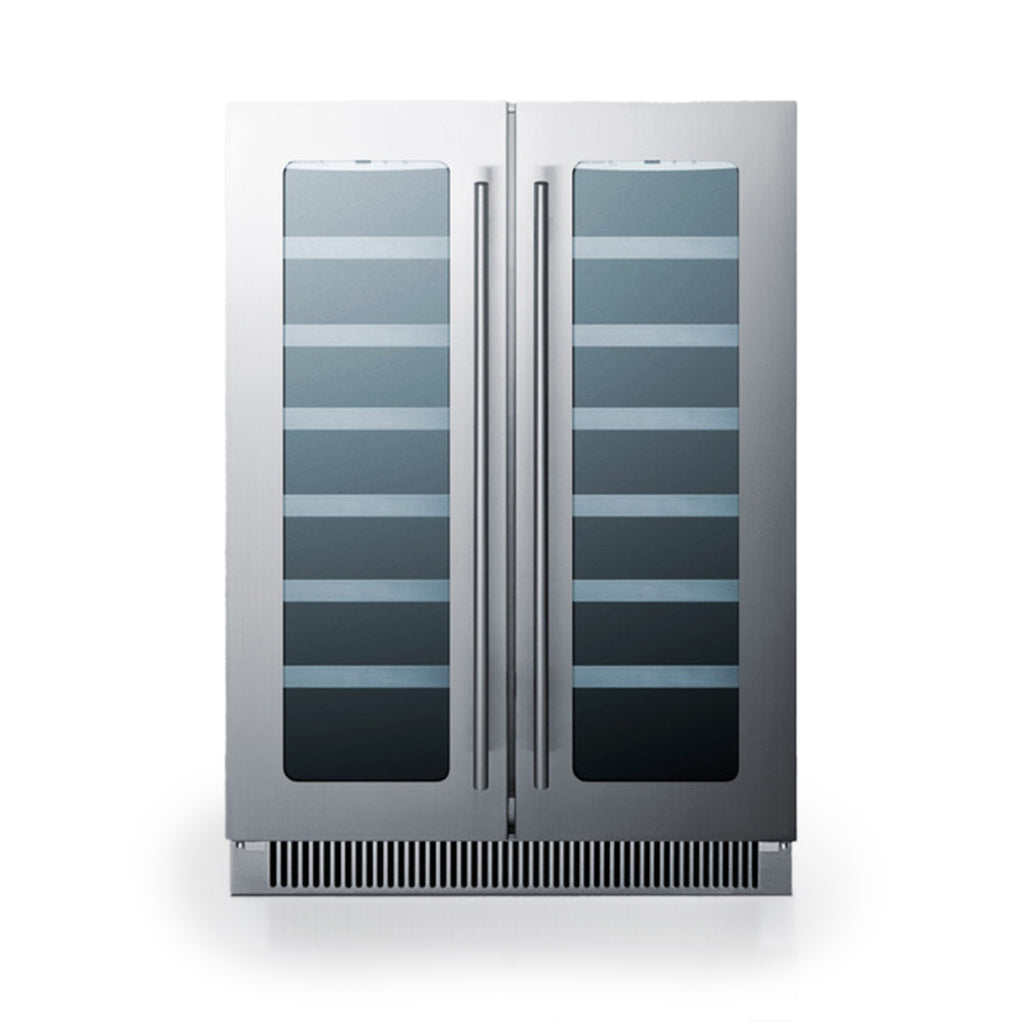

Summit | 24" Wide Built-In Dual Zone Wine Cellar (CLFD24WC)

Flat rate shipping click HERE
Stores 42 Bordeaux or 40 Burgundy bottles on stainless steel trimmed shelves.

KEY FEATURES



Automatic Defrost
Built-in Capable
Digital Thermostat
Dual Zone
LED Lighting

CARB Compliant
34.5"H x 23.88"W x 23.38"D


DESCRIPTION

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.The CLFD24WC is an undercounter wine cellar with two independent temperature zones. Two gently tinted low-e glass doors feature a French opening design, providing a dramatic presentation for your wine collection. Seamless stainless steel trim blends right into the glass, while sleek handles and our signature kickplate complete the modern look.
The front-breathing design allows the CLFD24WC to be built-in under counters, while the fully finished black cabinet also enables freestanding use. At just under 24" wide and deep, this unit is perfectly sized to fit common wet bar cutouts. The sealed back adds to the easy cleanability.
Inside, the CLFD24WC can store up to 21 bottles in each section for a total capacity of 42 standard 750 ml bottles. Alternatively, the shelves allow you to store up to 40 larger Pinot Noir or Chardonnay bottles (see our Racking System guide in your photo gallery for details). The digital control panel makes it easy to manage the temperature in Celsius or Fahrenheit, keeping reds and whites at the proper storage conditions. The sliding shelves are carefully sized to hold bottles in place, with a stainless steel front trim to add to the display. White LED lighting in each section offers an elegant yet energy efficient accent in the jet black interior. This model comes equipped with high/low temperature and open door alarms to ensure your collection is never exposed to improper temperature conditions. A conservation mode setting allows you to further save on energy use.
Fully featured for user convenience and beautifully styled for the home, SUMMIT CLFD24WC lets you preserve and display your wine collection under the perfect conditions.
FEATURES












































Built-in capable
Make the best use of space by installing your appliance under the counter


Fully finished black cabinet
Allows the unit to be used freestanding


Low-e glass doors
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass


Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel


Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit


Two temperature zones
Independent zones let you accommodate all varietals at their proper temperature


42 bottle capacity
Store up to 21 standard 750 ml bottles in each zone


White LED lighting
Unique white light offers elegant illumination for the jet black interior


Automatic defrost
Reduced maintenance with auto defrost system


Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom






French door swing
Two side-by-side doors with French door opening


Stainless steel kickplate
Completes the professional look down to the toe kick


Stainless steel trimmed wire shelves
Jet black wine shelves slide out easily for wine storage, with a seamless stainless steel trim to finish the look


Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range


Open door alarm
Audible alarm will sound if the door is left ajar


Sealed back
Space saving design with easier cleanability


Energy conservation mode
Lets you disable some of the electrical features to save on energy use


Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



SPECIFICATIONS






















































Overview



Height of Cabinet
34.5" (88 cm)


Width
23.88" (61 cm)


Depth
23.38" (59 cm)


Depth with Handle
25.0" (64 cm)


Depth with door at 90°
34.13" (87 cm)


Bottles
42 bottles


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
CSA


Amps
1.5


Voltage/Frequency
115 V AC/60 Hz


Weight
119.0 lbs. (54 kg)


Shipping Weight
145.0 lbs. (66 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101031507



Wine Cellar



Number of Zones
2


Door Swing
French


Reversible
No


Shelf Type
Wire


Shelf Qty
12


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.41 oz.


High Side PSI
277.0


Low Side PSI
103.0


Interior Height 1
26.0" (66 cm)


Interior Width 1
9.38" (24 cm)


Interior Depth 1
18.0" (46 cm)


Compressor Step Height
4.38" (11 cm)


Compressor Step Width
9.38" (24 cm)


Compressor Step Depth
6.0" (15 cm)


Level Legs
2


Temperature Range
39°F to 64°F


Interior Height 2
26.0" (66 cm)


Interior Width 2
9.38" (24 cm)


Interior Depth 2
18.0" (46 cm)


















DOWNLOADS







BROCHURE w/ DRAWINGS

CLFD24WC.pdf



TECHNICAL DRAWING (.dwg)
CLFD24WCWINECELLARA-C2000.dwg



SUPPORT
CLFD24WC_Shelving_Guide.pdf




USE & CARECL242WBV_Use___Care.pdf
