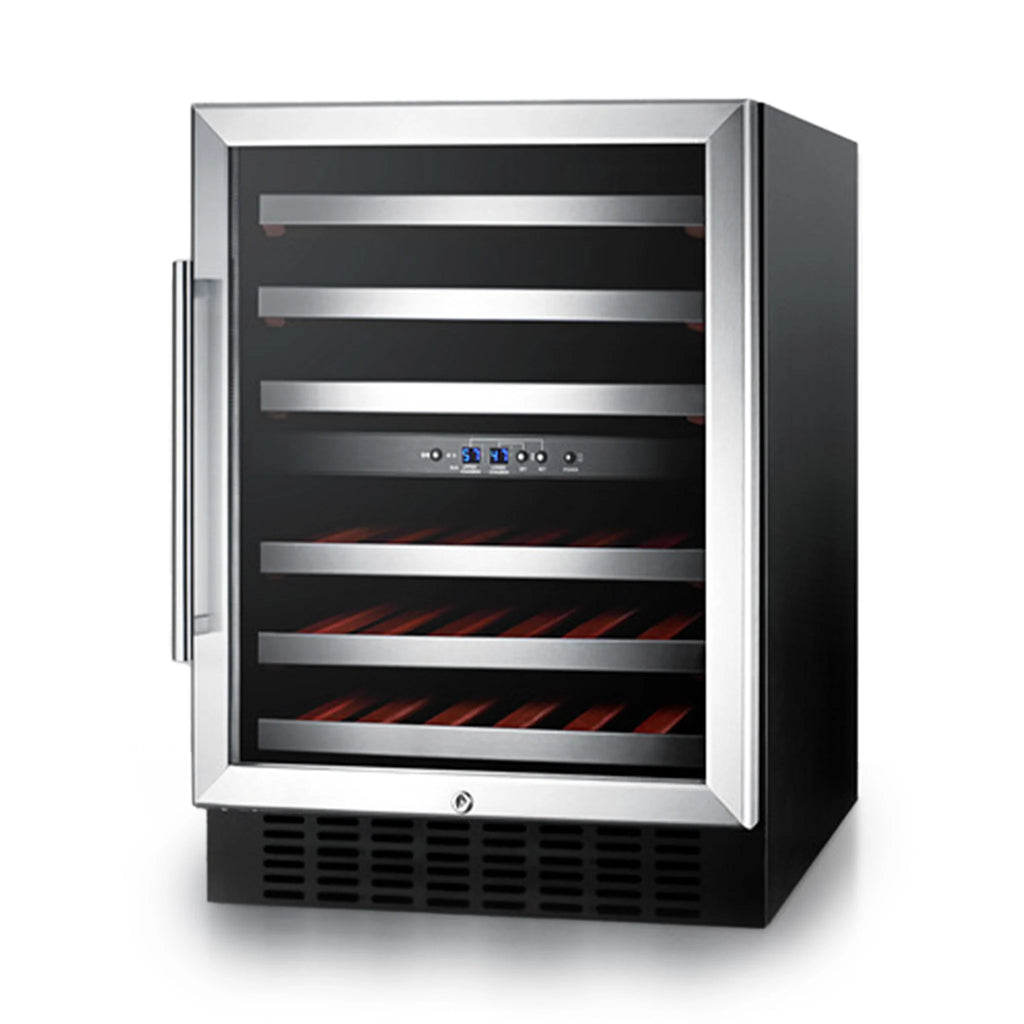

Summit | 24" Wide Built-In Dual Zone Wine Cellar, ADA Compliant (SWC530BLBISTADA)

Flat rate shipping click HERE
Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings.
KEY FEATURES



Automatic Defrost
Built-in Capable
Digital Thermostat
Commercially Approved
Champagne Racks

Keyed Lock
34.0"H x 23.63"W x 23.5"D

DESCRIPTION

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.
The SCR610BLCH is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security.
Inside, the SCR610BLCH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.
With its unique design and commercial grade construction, the SCR610BLCH is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
FEATURES





























Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments


Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry


Champagne racks
Stainless steel shelves are specially sized to store wider wine and champagne bottles


Bottle display
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves


Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view


Double pane tempered glass door
Stainless steel trimmed glass door offers a full display of stored items


Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup


Factory installed lock
Keyed lock for a secure interior


Digital thermostat
Intuitive digital controls ensure easy temperature management






Reversible door
User-reversible door swing allows for more flexibility in placing the unit


Professional handle
Stainless steel handle completes the professional look


Automatic defrost
Reduced user maintenance with automatic defrost


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom


Sealed back
Space saving design with easier cleanability


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals





















SPECIFICATIONS





















Overview



Height of Cabinet
34.0" (86 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
25.38" (64 cm)


Depth with door at 90°
45.5" (116 cm)


Capacity
5.0 cu.ft. (142 L)


Bottles
20 bottles


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
0.8


Voltage/Frequency
115 V AC/60 Hz


Weight
140.0 lbs. (64 kg)


Shipping Weight
150.0 lbs. (68 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101059945



Wine Cellar



Number of Zones
1


Door Swing
RHD


Reversible
Yes


Shelf Type
Steel


Shelf Qty
3


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.99 oz.


High Side PSI
270.0


Low Side PSI
105.0


Interior Height 1
25.0" (64 cm)


Interior Width 1
19.38" (49 cm)


Interior Depth 1
17.38" (44 cm)


Compressor Step Height
3.75" (10 cm)


Compressor Step Width
19.38" (49 cm)


Compressor Step Depth
4.63" (12 cm)


Temperature Range
36 to 43ºF


Sound Level
37.4 dB














DOWNLOADS




BROCHURE w/ DRAWINGS SCR610BLCH.pdf




USE & CARE












X_and_CH_Series_Commercial_Wine_Cellars_Use_and_Care.pdf
