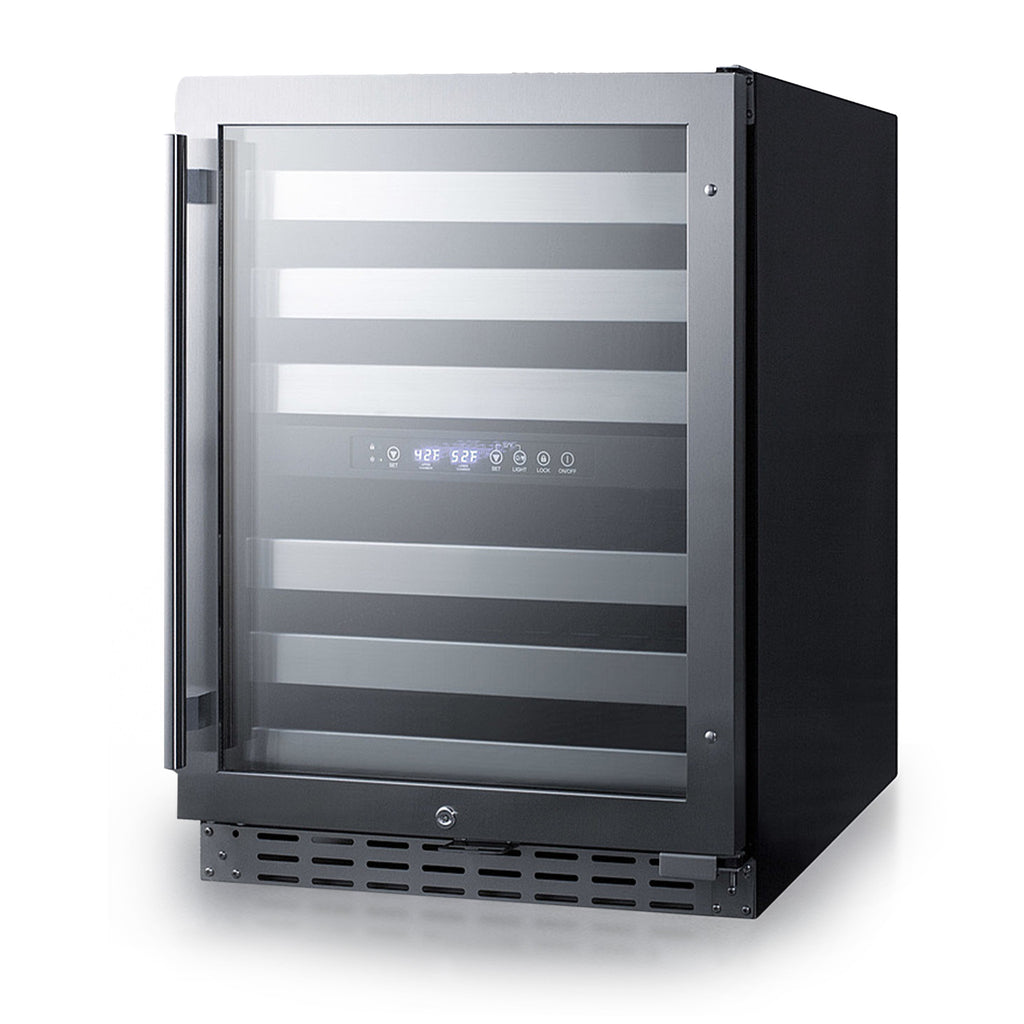

Summit | 24" Wide Built-In Dual Zone Wine Cellar, ADA Compliant (ALWC532)

Flat rate shipping click HERE
24" wide built-in dual zone wine cooler perfect for residential and commercial settings. Commercial grade design meets NSF-7 standards, with a lower height for use under ADA compliant counters.
COMPARE MODELS

ALWC532ALWC532CSSALWC532PNR
DESCRIPTION
Summit's extensive selection of built-in undercounter wine cellars includes ADA compliant choices with versatile designs for residential or commercial use.
The ALWC532 is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look.
Inside, the ALWC532 is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
With its advanced user features and versatile design, the ALWC532 makes a great addition to any ADA compliant setting looking to store wine in modern style. This unit can also be ordered with a panel-ready door trim, or with a stainless steel wrapped exterior cabinet. For more options, browse our website.
FEATURES



















ADA compliant
Sized just under 32" high for an easy fit under lower ADA compliant counters

Commercially approved
ETL-S listed to NSF-7 standards for use in commercial applications

Built-in capable
Front-breathing design allows this unit to be installed under counters

Commercial shelving design
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

Full-extension shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

Digital control panel
Easy temperature management with electronic controls located inside

Versatile readout
Temperature viewable in Celsius or Fahrenheit

Automatic defrost
Reduced maintenance with auto defrost system

Stainless steel door frame
Single-piece door trim offers a more deluxe look



Professional handle
Stainless steel handle with solid 1" diameter for added style

Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection

Interior lighting
Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock
Keyed lock for secure interior, with two keys included

Reversible door
User-reversible door swing makes it easy to best accommodate your setting



100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

















SPECIFICATIONS














Height of Cabinet
31.63" (80 cm)


Width
23.5" (60 cm)


Depth
23.38" (59 cm)


Depth with Handle
25.38" (64 cm)


Depth with door at 90°
45.75" (116 cm)


Bottles
46 bottles


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.25


Voltage/Frequency
115 V AC/60 Hz


Weight
113.0 lbs. (51 kg)


Shipping Weight
170.0 lbs. (77 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101063287











Wine Cellar



Number of Zones
2


Door Swing
RHD


Reversible
Yes


Shelf Type
Wire


Shelf Qty
6


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.23 oz.


High Side PSI
150.0


Low Side PSI
50.0


Interior Height 1
11.63" (30 cm)


Interior Width 1
20.5" (52 cm)


Interior Depth 1
18.0" (46 cm)


Level Legs
2


Temperature Range
41 to 64ºF


Interior Height 2
11.88" (30 cm)


Interior Width 2
20.5" (52 cm)


Interior Depth 2
18.0" (46 cm)


Sound Level
34 dB










DOWNLOADS




BROCHURE w/ DRAWINGS ALWC532.pdf





TECHNICAL DRAWING (.dwg) ALWC532_WINE_CELLAR__A-C_2018_.dwg


USE & CARE












ALWC532_SWC532BLBIST_LWC241_LWCADA241_Use___Care.pdf


















SUPPORT ALWC532_Shelving_Guide.pdf
