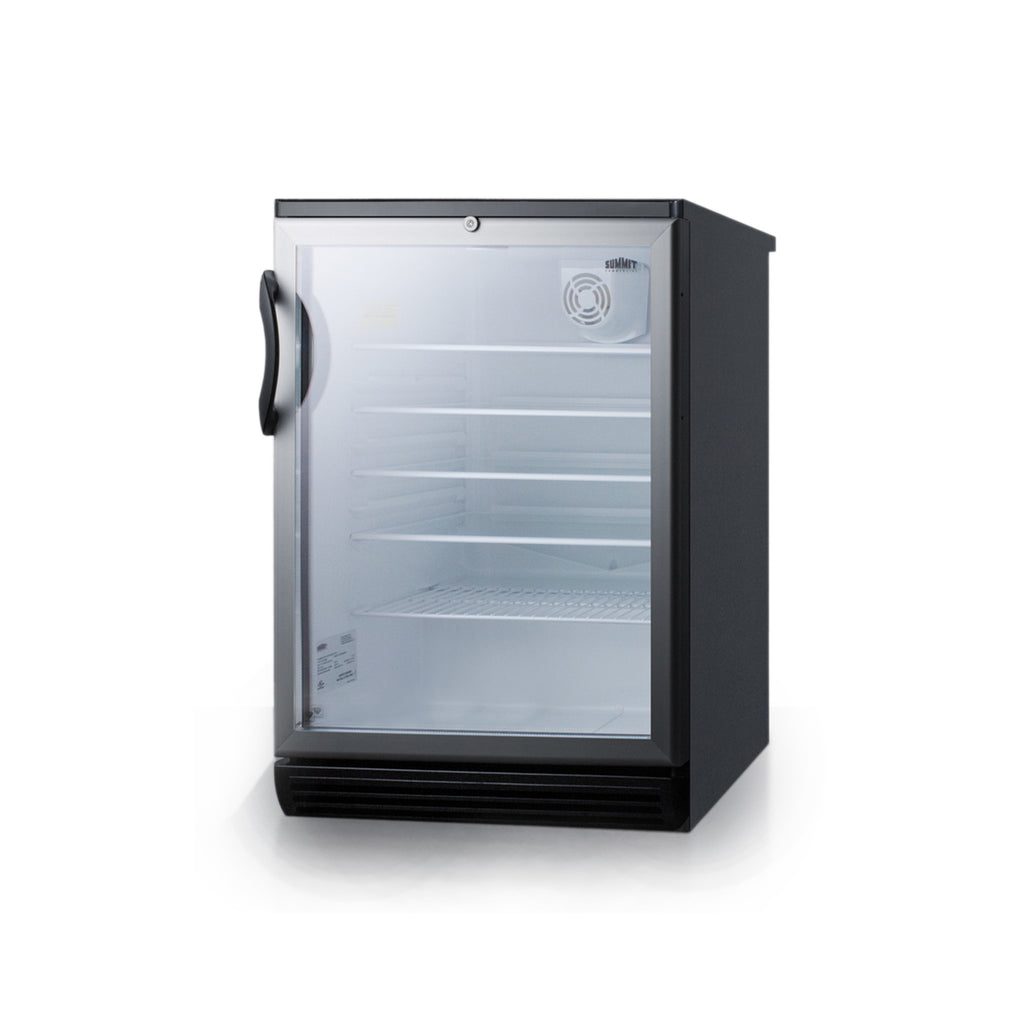

Summit | 24" Wide Built-In Beverage Centre (SCR600BGLBI)

Flat rate shipping click HERE
Slim 24" wide built-in beverage centre with double pane tempered glass door.
KEY FEATURES


Auto Defrost
Built-In Use
Double Pane Tempered Glass Door
Interior Light with Rocker Switch

Dial Thermostat
Keyed Lock

33.5"H x 23.63"W x 23.5"D

DESCRIPTION

SUMMIT COMMERCIAL's SCR600BGLBI Series features 24" wide beverage refrigerators designed and manufactured in Europe for built-in undercounter installation in commercial settings.Sized with a convenient 24" footprint and generous 5.5 cu.ft. interior, the SCR600BGLBI features a front-breathing design for built-in installation under counters, with a fully finished black cabinet that also allows freestanding use. The user-reversible door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. The factory-installed front lock is located towards the top of the door for easier access. Inside, the SCR600BGLBI includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.The SCR600BGLBI is ETL-S listed to NSF-7 commercial standards. For this unit sized at 32" for use under lower ADA compliant counters, see the SCR600GBLBIADA series.
FEATURES


Commercially approved






ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments


Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces


Built-in capable
Front-breathing design allows you to install the unit under counters with minimum clearance


Double pane tempered glass door
Heat resistant design provides clear display to promote impulse buys


Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)


Automatic defrost
Reduced user maintenance with automatic defrost


Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior


White interior finish
Interior offers more visibility with a brighter look


Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup






Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides


Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch


Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling


One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices


Reversible door
User-reversible door swing offers more flexibility


Adjustable thermostat
Dial thermostat for easy and intuitive temperature management


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations








SPECIFICATIONS














Overview



Height of Cabinet
33.5" (85 cm)


Width
23.63" (60 cm)


Depth
23.5" (60 cm)


Depth with Handle
25.5" (65 cm)


Depth with door at 90°
46.0" (117 cm)


Capacity
5.5 cu.ft. (156 L)


Defrost Type
Automatic


Door
Glass


Cabinet
Black


US Electrical Safety
UL


Canadian Electrical Safety
ULC


Sanitation
ETL-S


Amps
1.8


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
140.0 lbs. (64 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101056838










Refrigerator Features



Door Swing
RHD


Reversible
Yes


Height Adjustable
1


Shelf Type
Glass


Shelf Qty
4


Adjustable Shelves
Yes


Thermostat Type
Dial


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.67oz.


High Side PSI
124.0


Low Side PSI
30.0


Level Legs Qty
4


Interior Light
Yes


Sound Level
33.5 dB











Dimensions



Interior Height
26.0" (66 cm)


Interior Width
20.75" (53 cm)


Interior Depth
17.5" (44 cm)


Compressor Step Height
6.0" (15 cm)


Compressor Step Width
20.75" (53 cm)


Compressor Step Depth
5.0" (13 cm)















DOWNLOADS











BROCHURE w/ DRAWINGS

SCR600BGLBI.pdf





USE & CARE



















SCR600BGLBI_manual_rvsd_072418.pdf
