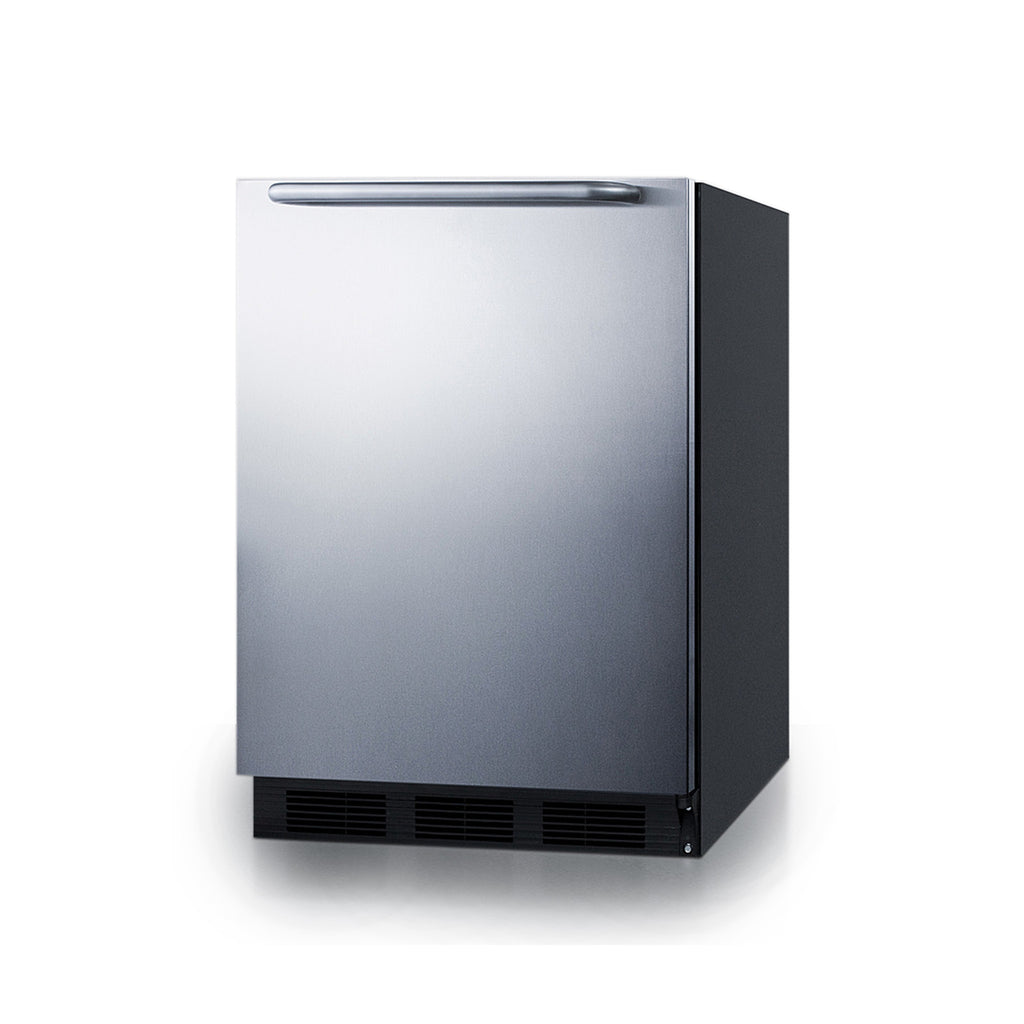

Summit | 24" Wide Built-In All-Refrigerator, ADA Compliant (AR5BS)

Flat rate shipping click HERE

24" wide built-in all-freezer made in Europe and designed to fit under lower ADA compliant counters.
DESCRIPTION

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look.Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
FEATURES






























ADA compliant
32" height to fit under lower ADA compliant counters


Slim undercounter dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit


Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets


Stainless steel wrapped door
Durable design with lasting elegance


Professional towel bar style handle
Brushed stainless steel handle is mounted horizontally for an attractive look


Automatic defrost
Reduced maintenance with auto defrost system


Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up


Door shelves
Store tall bottles and condiments right on the door for convenient access


Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles






Interior light
Automatically illuminates when you open the door


One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices


Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior


Adjustable dial thermostat
Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management


Reversible door
User-reversible door swing for added flexibility


Fully finished black cabinet
Allows the unit to be used freestanding


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


100% CFC free
Environmentally friendly design without ozone-damaging chemicals














































































SPECIFICATIONS














Overview



Height of Cabinet
32.0" (81 cm)


Height to Hinge Cap
32.25" (82 cm)


Width
23.63" (60 cm)


Depth
23.0" (58 cm)


Depth with door at 90°
45.38" (115 cm)


Capacity
5.5 cu.ft. (156 L)


Defrost Type
Automatic


Door
Stainless Steel


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Energy Usage/Year
307.0kWh/year


Amps
1.4


Voltage/Frequency
115 V AC/60 Hz


Weight
100.0 lbs. (45 kg)


Shipping Weight
115.0 lbs. (52 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101068268











Refrigerator Features



Door Swing
RHD


Reversible
Yes


Shelf Type
Glass


Shelf Qty
3


Full Door Shelf Qty
3


Adjustable Shelves
Yes


Wine Bottle Shelves
Yes


Thermostat Type
Dial


Fan Type
Exterior


Refrigerant Type
R600a


Refrigerant Amount
0.64oz.


High Side PSI
180.0


Low Side PSI
80.0


Interior Light
Yes














Dimensions



Interior Height
26.25" (67 cm)


Interior Width
21.0" (53 cm)


Interior Depth
18.0" (46 cm)


Compressor Step Height
5.5" (14 cm)


Compressor Step Width
21.0" (53 cm)


Compressor Step Depth
6.0" (15 cm)
















DOWNLOADS




BROCHURE w/ DRAWINGS AR5BS.pdf







USE & CARE










BRF65S2_ADA65S2_ADA63S2_BAR61W2_ADA61W2_AR5SB_AR5BIF_User_Manual.pdf
