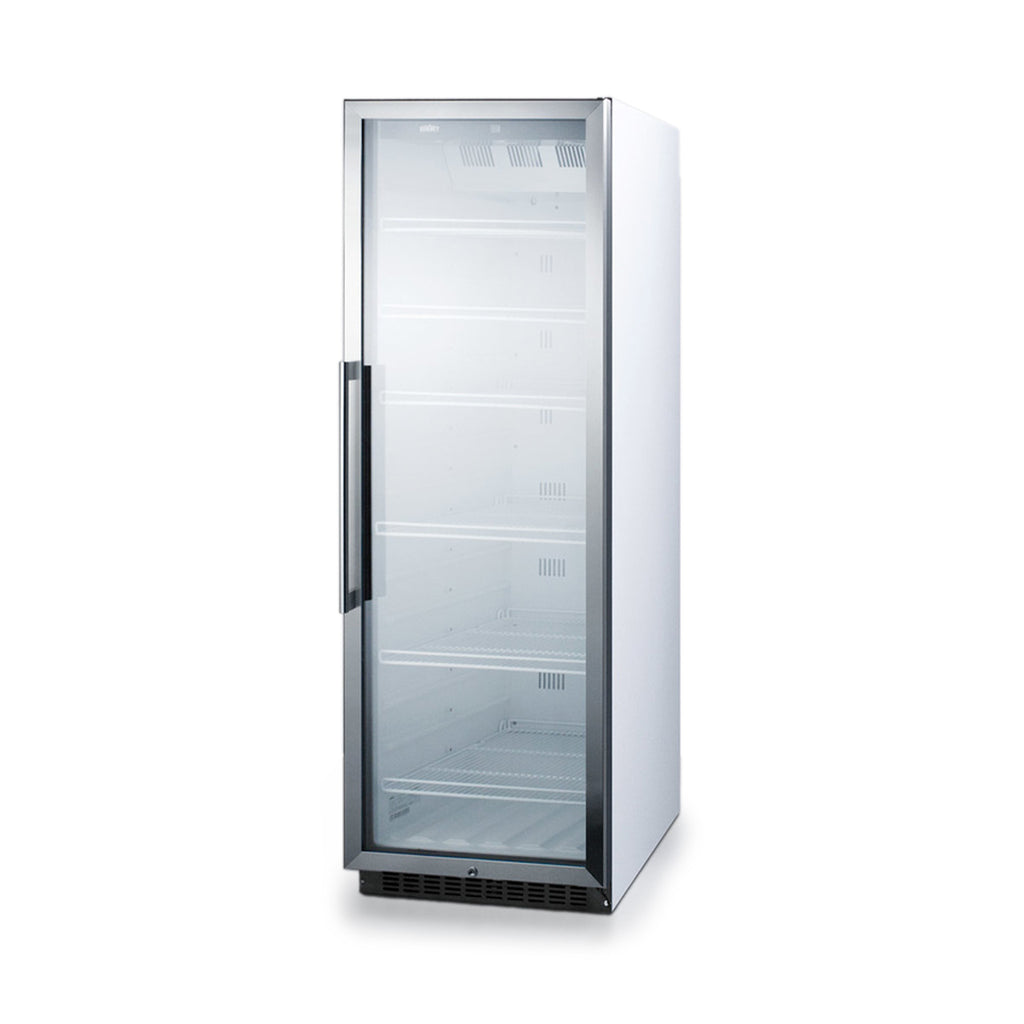

Summit | 24" Wide Beverage Centre (SCR1400W)

Flat rate shipping click HERE

Slim 24" beverage centre for easy fit in small footprint spaces. Glass door provides full view of interior.
KEY FEATURES


Frost-Free Operation
Fully Finished White Cabinet for Freestanding Use
Keyed Lock

Self-Closing Glass Doors


12.6 Cu Ft Capacity

CARB Compliant

69.75" H x 23.63" W x 23.75" D

DESCRIPTION

SUMMIT's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.SUMMIT SCR1400W offers 12.6 cu.ft. of storage space in a slim-fitting footprint just under 24". Bottles and cans can be stored on six heavy duty wire shelves, with fifteen glide options to accommodate different sizes. LED lighting offers full illumination of stored products and a digital thermostat makes temperature control as simple as touching a button. The readout can be viewed in Celsius or Fahrenheit.The frost-free SCR1400W features a tempered heat-safe glass door trimmed in stainless steel, with a keyed lock for added security. The stainless steel trimmed glass door includes a pro style handle to complete the modern look, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. This unit has a right hand door swing. For a left hand version, see the SCR1400WLH.This model has a white cabinet and a right angle plug for an easier fit. It meets UL-471 commercial standards and is ETL-S listed to NSF standards for use in any commercial foodservice establishment. For this same unit with a stainless steel exterior, see the SCR1400WCSS.NOTE: This is an indoor refrigerator and is not designed for use in the outdoors.
FEATURES















Commercially approved
ETL-S listed to NSF standards for commercial use


Slim fit
Just 24" wide and deep for an easy fit in any setting


Glass door with stainless steel trim
Heat-safe design offers safe display of stored products


Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures


Professional handle
Elegant chrome handle finishes the look


Factory installed lock
Keyed security on the refrigerator door


Recessed LED lighting
On/off button to illuminate stored products with an attractive and energy efficient glow


Frost-free operation
No-frost convenience requires no manual defrosting






Adjustable shelves
Fifteen glide positions accommodate a variety of sizes, with heavy duty wired shelving


Digital thermostat
Electronic controls for precise temperature management. Temperature range: 34º F to 43º F


Digital display
Temperature readout can be shown in Celsius or Fahrenheit


Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth


Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours


Fully finished white cabinet
Allows the unit to be used freestanding


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations




SPECIFICATIONS



















Overview



Height of Cabinet
69.75" (177 cm)


Width
23.63" (60 cm)


Depth
23.75" (60 cm)


Depth with Handle
25.63" (65 cm)


Depth with door at 90°
46.75" (119 cm)


Capacity
12.6 cu.ft. (357 L)


Defrost Type
Frost-Free


Door
Glass


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
1.7


Voltage/Frequency
115 V AC/60 Hz


Weight
151.0 lbs. (68 kg)


Shipping Weight
195.0 lbs. (88 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101028422










Refrigerator Features



Sabbath Mode
Yes


Door Swing
RHD


Reversible
No


Shelf Type
Wire


Shelf Qty
6


Adjustable Shelves
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
1.76oz.


High Side PSI
270.0


Low Side PSI
105.0


Level Legs Qty
4


Interior Light
Yes


Temperature Range
36°F to 43°F


Sound Level
35.7 dB















Dimensions



Interior Height
60.25" (153 cm)


Interior Width
20.0" (51 cm)


Interior Depth
17.5" (44 cm)


Compressor Step Height
4.0" (10 cm)


Compressor Step Width
20.0" (51 cm)


Compressor Step Depth
5.5" (14 cm)






















VARIANT MODEL NUMBERS



SCR1400W: Right Hand Door Swing, White Cabinet

SCR1400WLH: Left Hand Door Swing, White Cabinet

SCR1400WCSS: Right Hand Door Swing, Stainless Steel Cabinet

SCR1400WLHCSS: Left Hand Door Swing, Stainless Steel Cabinet

















DOWNLOADS



BROCHURE w/ DRAWINGS
SCR1400W.pdf





TECHNICAL DRAWING (.dwg)SCR1400W_BEVERAGE_FEF.__A-C_2000_.dwg






USE & CAREManual_SCR1536B_SCR1536BG_SCR2464_SCR1005W_SCR1155W_SCR1400W_071216.pdf






MSDS INFORMATIONR600a_K.pdf
