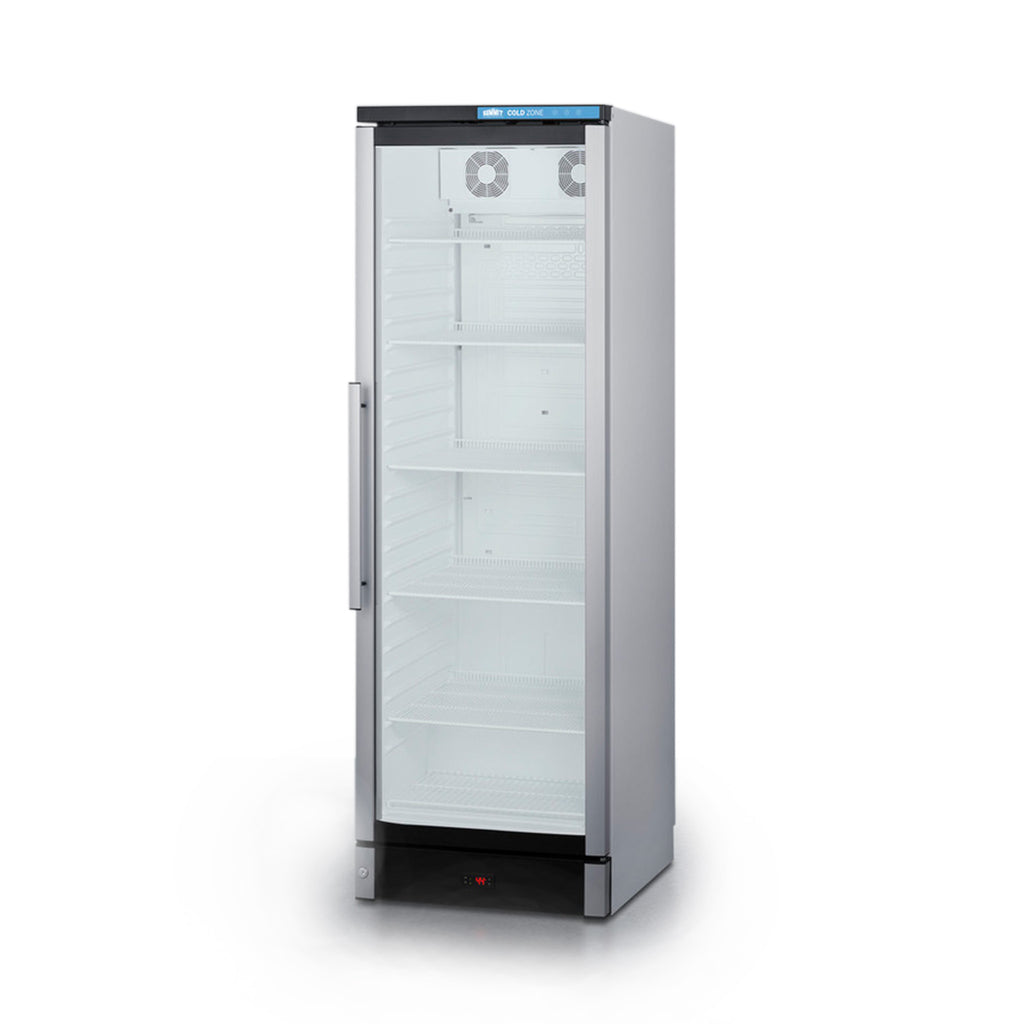

Summit | 24" Wide Beverage Centre (SCR1301)

Flat rate shipping click HERE

Slim 24"x25" beverage centre for easy fit in small footprint spaces. This is a taller fridge as compared to SCR1154.
KEY FEATURES


Automatic Defrost
Fully Finished Cabinet for Freestanding Use

White Interior
Self-Closing Door


9.9 Cu Ft Capacity˜

CARB Compliant
72.75" H x 23.38" W x 25.25" D


DESCRIPTION




























Summit Commercial manufactures a full selection of slim-fitting European beverage centres designed for durable service, convenient use, and attractive presentation.Made in Denmark, model SCR1301 is a 24" wide 12.4 cu.ft. upright beverage merchandiser sized with a space-saving 25 1/4" depth. The double pane tempered glass door includes built-in LED lighting to create an attractive and energy efficient presentation of stored items, helping to promote impulse buys. A factory-installed lock allows users to secure the door as needed. Digital controls ensure easy and intuitive operation. Inside, the SCR1301 features a bright white interior for full product visibility. Five adjustable wire shelves let you rearrange your storage to accommodate a variety of sizes. Each shelf has a generous 79 lb. storage tolerance. We include one additional shelf to raise items off the floor. The automatic defrost system with a cold wall interior helps to keep beverages cold and minimize user maintenance, while powerful fan-forced cooling helps to evenly distribute airflow and promote fast temperature recovery in busy commercial environments. The SCR1301 is ETL-S listed to NSF-7 commercial standards and utilizes environmentally-friendly hydrocarbon refrigerant to comply with CARB guidelines.NOTE: this unit ships with a right hand door swing. For a left hand version by special order, add option "LHD" or see model SCR1301LHD.























FEATURES












































Upright beverage centre
Commercial merchandiser made in Denmark


Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments


Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots


Double pane tempered glass door
Tropicalized design protects contents from ambient hot temperatures


Automatic defrost
Reduced maintenance with auto defrost system


LED lighting inside door
Door panel features a full-length LED strip to provide an attractive and energy efficient presentation


Heavy duty adjustable shelves
Slide-out shelves with no clips for faster adjusting, with a 79 lb. capacity to hold multiple beverages as needed


Bottom shelf
Additional shelf sits on the floor to keep items raised from the unit's interior bottom


Powerful fan-forced cooling
Two fans help to ensure even temperature distribution throughout the interior






White interior
Full visibility for maximum impulse sales


Factory installed lock
Keyed lock for a secure interior (2 keys included)


Digital thermostat
Intuitive electronic controls make it easy to adjust the temperature between 32 and 50ºF


ECO mode option
Optional function allows the unit to auto adjust to a slightly higher set point if the door has not been opened for 3 hours, helping to conserve energy


Ventilation guards included
Ships with two removable pieces designed to be installed in the rear of the appliance to ensure proper ventilation if placing the beverage centre against a wall


Brushed aluminum handle
Easy to grab handle in modern style


Fully finished cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations









SPECIFICATIONS











































Overview



Height of Cabinet
72.75" (185 cm)


Width
23.38" (59 cm)


Depth
25.25" (64 cm)


Depth with Handle
26.75" (68 cm)


Depth with door at 90°
46.38" (118 cm)


Capacity
12.4 cu.ft. (351 L)


Defrost Type
Automatic


Door
Glass


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
2.4


Voltage/Frequency
115 V AC/60 Hz


Weight
184.0 lbs. (83 kg)


Shipping Weight
220.0 lbs. (100 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101085005








































































Refrigerator Features



Door Swing
RHD


Reversible
Factory Reversible


Shelf Type
Wire


Shelf Qty
5


Adjustable Shelves
Yes


Thermostat Type
Digital


Refrigerant Type
R600a


Refrigerant Amount
1.76oz.


High Side PSI
430.0


Low Side PSI
87.0


Interior Light
Yes


Temperature Range
32 to 50ºF


Sound Level
34.6 dB






















Dimensions



Interior Height
62.75" (159 cm)


Interior Width
20.63" (52 cm)


Interior Depth
17.5" (44 cm)


Compressor Step Height
8.25" (21 cm)


Compressor Step Width
20.63" (52 cm)


Compressor Step Depth
7.0" (18 cm)




















DOWNLOADS

BROCHURE w/ DRAWINGS
SCR1301.pdf








































ASSEMBLY DRAWING














































SCR1301_ASS_Y__2_.pdf


























TECHNICAL DRAWING (.dwg)

SCR1301_UPRIGHT_COOLER__A-C-2022_.dwg












USE & CARESCR1301_SCR1154_Use_and_Care_06-29-2022.pdf
