Description
Flat rate shipping click HERE

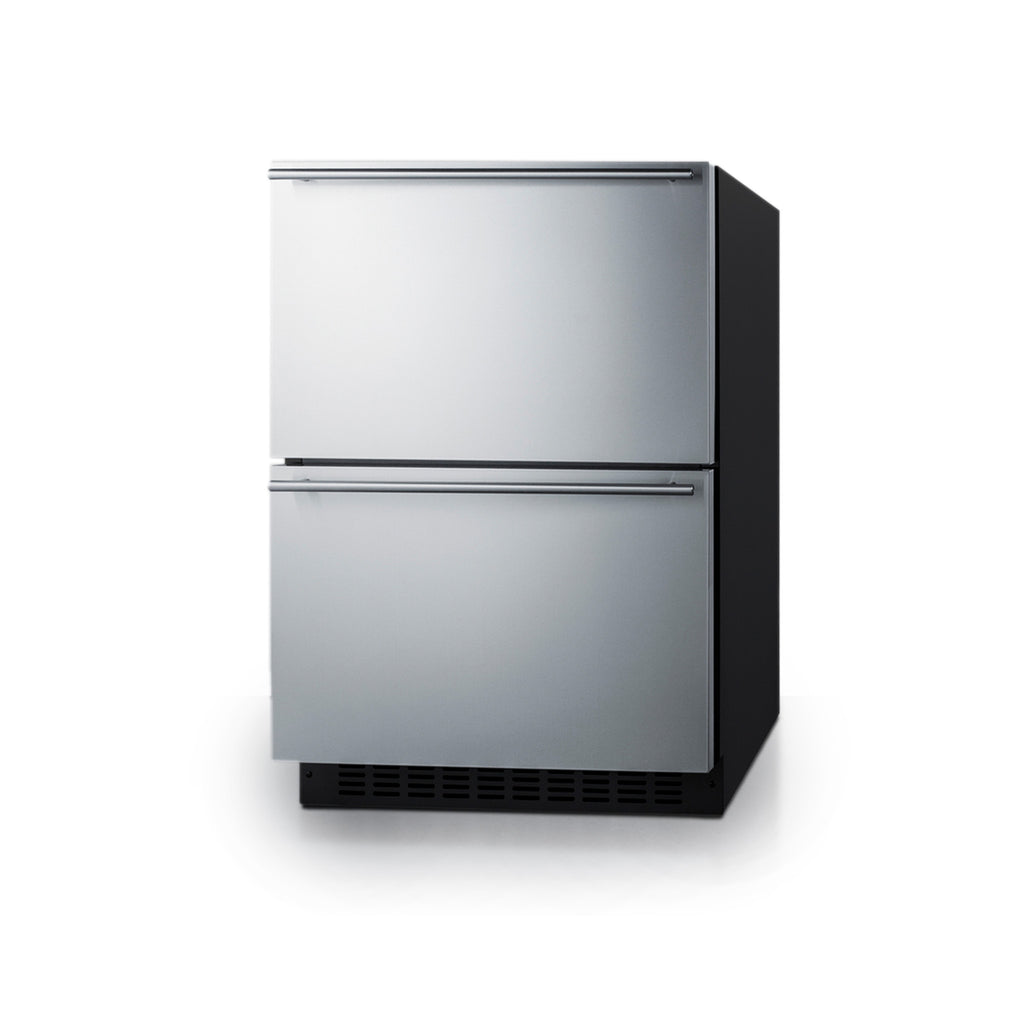

24" wide built-in, indoor-outdoor capable, ADA compliant 2-drawer all-refrigerator, with 3.71 cu ft capacity.
KEY FEATURES
Frost Free
2-Drawer Freezer
Digital Thermostat
LED Lighting
CARB Compliant
Panel Ready Drawer Fronts
Indoor/Outdoor Capable
ADA Compliant
31.88" H x 23.38" W x 22.5" D
DESCRIPTION
Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADFD243 is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The fully finished black cabinet and stainless steel drawer fronts feature weatherproof construction for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).Inside, the ADFD243 has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243 is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
FEATURES
2-Drawer All-Freezer
24" wide 3.7 cu.ft. freezer with two gliding drawers
ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
Indoor/Outdoor compatible
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
Panel-ready drawer fronts
Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
LED lighting
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Internal fan
Fan-forced cooling ensures even temperature distribution from top to bottom
Drawer dividers
Two adjustable dividers make it easier to organize the drawer interiors
Sliding basket
Removable chrome basket included for added storage convenience
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
SuperFreezer function
Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
Child lock
Disables digital controls after two minutes of activity for added safety
Temperature Memory Function
Unit will restore the most recent temperature settings after losing power
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability and added protection from the elements
Fully finished black exterior cabinet
Allows the freezer to be used as a freestanding model
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments
Matching refrigerator
Pair with the ADRD241 refrigerator to create a complete 2-drawer undercounter set
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
Height of Cabinet
31.88" (81 cm)
Width
23.38" (59 cm)
Depth
22.5" (57 cm)
Depth with Handle
23.88" (61 cm)
Depth with door at 90°
34.25" (87 cm)
Capacity
3.71 cu.ft. (105 L)
Defrost Type
Frost-Free
Door
Stainless Steel/Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Energy Usage/Year
395.0kWh/year
Amps
1.5
Voltage/Frequency
115 V AC/60 Hz
Weight
106.0 lbs. (48 kg)
Shipping Weight
138.0 lbs. (63 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101079561
Freezer
Thermostat Type
Digital
Interior Light
Yes
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
1.31 oz.
High Side PSI
270.0
Low Side PSI
105.0
Level Legs
4
Interior Drawers
Yes
Drawers Qty
2
Interior Height - Drawer 1
8.0" (20 cm)
Interior Width - Drawer 1
17.0" (43 cm)
Interior Depth - Drawer 1
14.5" (37 cm)
Interior Height - Drawer 2
8.0" (20 cm)
Interior Width - Drawer 2
17.0" (43 cm)
Interior Depth - Drawer 2
14.5" (37 cm)
Compressor Step Height
4.0" (10 cm)
Compressor Step Width
17.0" (43 cm)
Compressor Step Depth
3.5" (9 cm)
Temperature Range
-11°F to 11°F
Sabbath Mode
Yes
Sound Level
33.8 dB
DOWNLOADS
BROCHURE w/ DRAWINGS ASDR2414.pdf
TECHNICAL DRAWING (.dwg) ASDR2414.dwg
ASSEMBLY DRAWING ASDR2414-Assembly.pdf
USE & CARE
Drawer_Refrigeration_ASDR1524_ASDR1554_ASDR2444_ADR241_ADRF244_ADFD243_FF642D_SCFF532D_SPFF51OS2D_SPR627OS2D_Use_and_Care_7-13-2022.pdf
