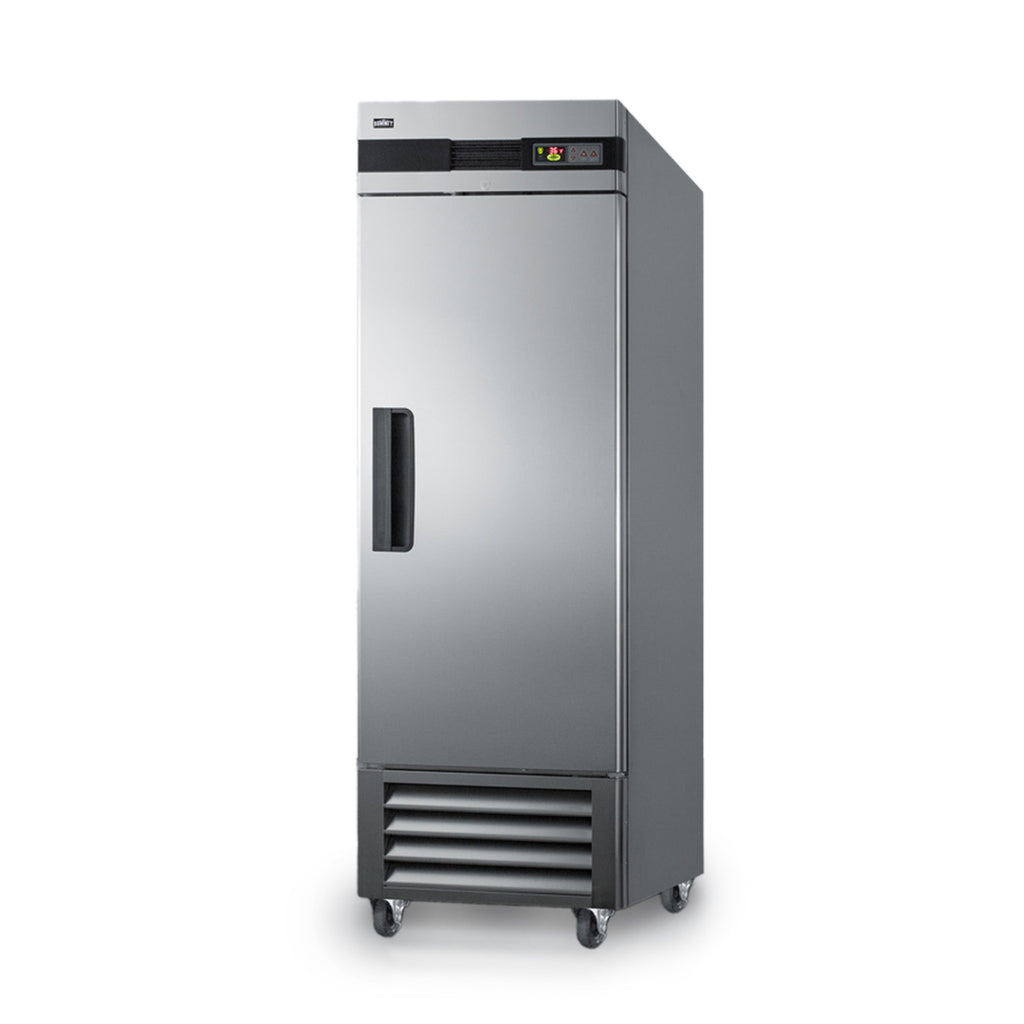

Summit | 23 Cu. Ft. Reach-In Refrigerator (SCRR232)

Flat rate shipping click HERE

23 cubic foot reach-in commercial refrigerator. Stainless steel construction inside and out for lasting durability in any indoor setting.
KEY FEATURES


Auto Defrost
Complete Stainless Construction
Keyed Lock

Self-Closing Doors


23 Cu Ft Capacity

CARB Compliant

83.75" H x 27.5" W x 31.0" D


DESCRIPTION

Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards.Made in South Korea, the SCRR232 is a commercial all-refrigerator with a complete stainless steel cabinet. The stainless steel door features a self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation.The SCRR232 features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. This unit utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery.To ensure optimum storage conditions, the SCRR232 is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder. Designed with hydrocarbon refrigerant, the SCRR232 provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching frost-free freezer, see the SCFF237. A glass door refrigerator version is also available (model SCR23SSG).
FEATURES











Commercially approved



Commercial construction meeting UL commercial listing standards


Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup


Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery


Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup


Self-closing door
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading


Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes


Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range


6 inch casters
Ships with a set of casters (2 locking) for optional user installation


Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management


Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments


Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)


Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items






Interior light
Energy efficient LED lighting with internal on/off switch


Large capacity
23 cubic feet of storage space inside


Sealed back
Space-saving design that ensures easier cleanup


Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance


Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months


Matching freezer
Pair with SCFF237 for a matching set in complete stainless steel


Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint


Additional choices
Glass door version (model SCR23SSG) also available


Extended warranty
2 years parts and labor/5 years compressor


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations




SPECIFICATIONS



















Overview



Height of Cabinet
83.75" (213 cm)


Width
27.5" (70 cm)


Depth
31.0" (79 cm)


Depth with door at 90°
56.5" (144 cm)


Capacity
23.0 cu.ft. (651 L)


Defrost Type
Automatic


Door
Stainless Steel


Cabinet
Stainless Steel


US Electrical Safety
UL


Canadian Electrical Safety
ULC


Sanitation
ETL-S


Amps
7.5


Voltage/Frequency
115 V AC/60 Hz


Weight
282.0 lbs. (128 kg)


Shipping Weight
292.0 lbs. (132 kg)


Parts & Labor Warranty
2 Years


Compressor Warranty
5 Years


UPC
761101062358










Refrigerator Features



Door Swing
RHD


Reversible
No


Shelf Type
Wire


Shelf Qty
4


Adjustable Shelves
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R290a


Refrigerant Amount
2.5oz.


High Side PSI
290.0


Low Side PSI
155.0


Wheel Qty
4


Interior Light
Yes


Temperature Range
33 to 41ºF











Dimensions



Interior Height
51.5" (131 cm)


Interior Width
23.5" (60 cm)


Interior Depth
27.0" (69 cm)












DOWNLOADS


BROCHURE w/ DRAWINGS




SCRR232.pdf

TECHNICAL DRAWING (.dwg)


SCRR233___ARS23ML_REF.__A-C_2010_.dwg



USE & CARE

Pharma-Lab_and_Reach-In_Series_Manual.pdf
