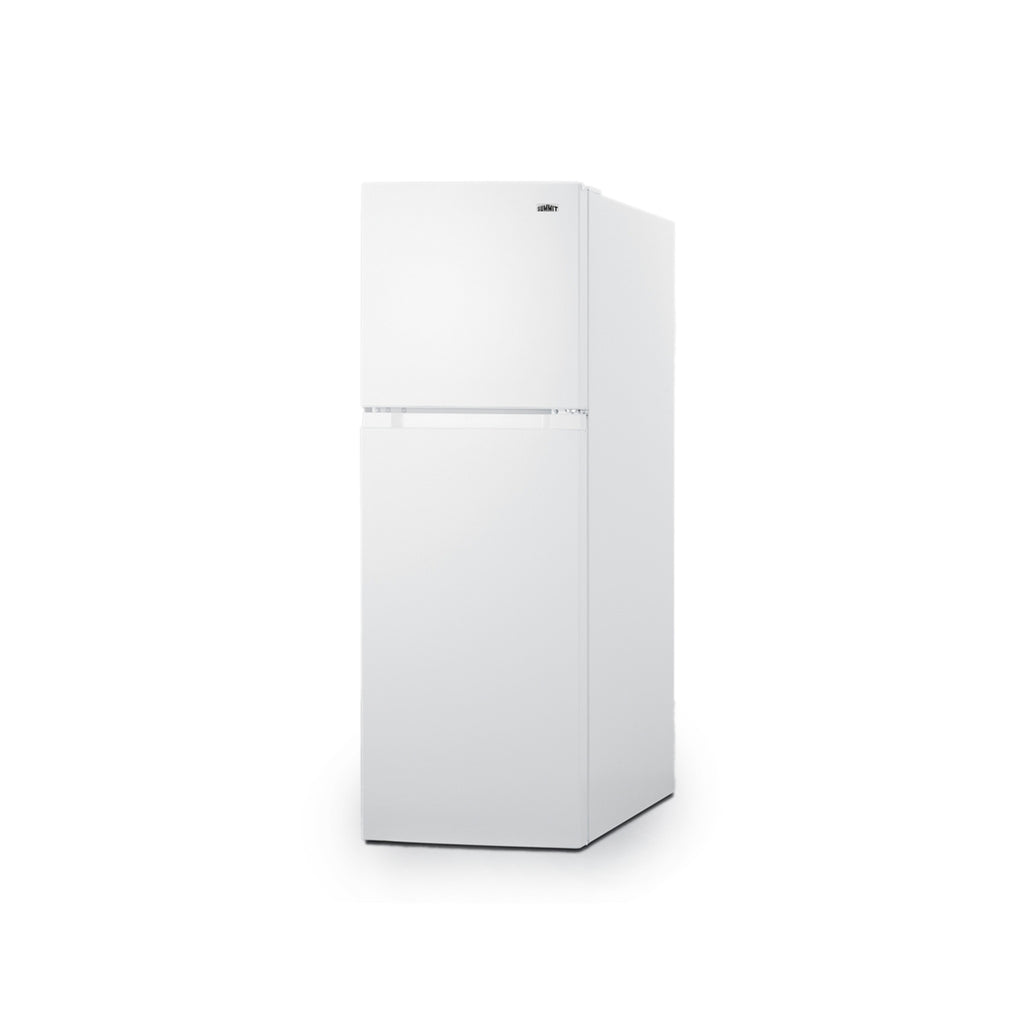

Summit | 21.5" Wide Refrigerator-Freezer (FF101W)

Flat rate shipping click HERE

21.5" wide fridge-freezer perfect for small kitchens.

KEY FEATURES





Refrigerator-Freezer Combo
Digital Thermostats

Frost-Free
21.5" Width for Small Spaces

60.63" H x 21.5" W x 27.38"



DESCRIPTION





SUMMIT's line of refrigerator-freezers feature slim dimensions for smaller kitchens and superior construction for years of reliable service.The FF101W is a two-door refrigerator-freezer sized at 21.5" wide, with a textured white cabinet finish with user-reversible doors. The square door design affords an easy fit in tight spaces, with a sealed back for easier cleanability. Inside, the FF101W utilizes frost-free operation for minimal user maintenance. The refrigerator has two adjustable, spill-proof glass shelves for easy storage, while the door comes equipped with two full-width door shelves, a bottom shelf for storing a gallon of milk and larger items, as well as a slimmer top shelf for storage of condiments and other refrigerated items. A large pull-out crisper drawer keeps your greens fresh. The freezer section has a removable wire shelf and two full-door racks for added storage convenience. A digital thermostat with five temperature settings affords easy temperature management of the 10.1 cu.ft. interior, with visual alerts if sensors in the refrigerator or freezer stop working. The refrigerator section also included an automatic interior light for an easy view of stored contents. With its unique size and fully-featured interior, the FF101W is ideal for studio apartments, offices, and other small-spaced environments seeking reliable cold storage in a slim-fitting design. For this unit with stainless steel look doors and a textured black cabinet finish, see the FF102PL.
FEATURES







































































Slim-fitting design
Full storage capacity in a slim 21.5” wide design


Large capacity
Large capacity with spacious 10.1 cu.ft. interior


Adjustable glass shelves
Two spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator compartment


Frost-free operation
No-frost convenience for reduced user maintenance


Door storage
Door shelves in both the refrigerator and freezer compartments offer convenient storage


Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing it in a convenient slide drawer


Full freezer shelf
Removable wire shelf included to accommodate a variety of sizes inside the top freezer compartment






LED lighting
Automatically illuminates when you open the door of the fresh food section


Adjustable thermostat
Digital thermostat located inside, with five temperature settings, offers easy temperature management


Reversible doors
User-reversible door swing allows you to switch the configuration for a better fit in your kitchen


Textured white cabinet finish
White cabinet allows the unit to be freestanding with a textured design for added style


Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations











SPECIFICATIONS


















































































Overview



Height of Cabinet
60.0" (152 cm)


Height to Hinge Cap
60.63" (154 cm)


Width
21.5" (55 cm)


Width with Door Open
22.5" (57 cm)


Depth
27.38" (70 cm)


Depth with door at 90°
47.0" (119 cm)


Capacity
10.1 cu.ft. (286 L)


Defrost Type
Frost-Free


Door
White


Cabinet
White


US Electrical Safety
CSA


Canadian Electrical Safety
CSA-C


Energy Usage/Year
331.0kWh/year


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
106.0 lbs. (48 kg)


Shipping Weight
155.0 lbs. (70 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101076430











Refrigerator-Freezer



Door Swing
RHD


Reversible
Yes


Adjustable Shelves
Yes


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Interior Light
Yes


Refrigerator - Interior Height
35.0" (89 cm)


Refrigerator - Interior Width
17.25" (44 cm)


Refrigerator - Interior Depth
22.63" (57 cm)


Refrigerator - Shelf Type
Glass


Refrigerator - Shelf Qty
3


Refrigerator - Full Door Shelves
2


Freezer - Interior Height
16.0" (41 cm)


Freezer - Interior Width
16.0" (41 cm)


Freezer - Interior Depth
18.0" (46 cm)


Freezer - Shelf Type
Wire


Freezer - Shelf Qty
1


Freezer - Full Door Shelves
2


Gallon Door Storage
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
1.34 oz.


High Side PSI
245.0


Low Side PSI
110.0


Level Legs
2


Compressor Step Height
10.0" (25 cm)


Compressor Step Width
17.25" (44 cm)


Compressor Step Depth
6.0" (15 cm)


Sound Level
33.2 dB










































DOWNLOADS









BROCHURE FF101W.pdf









USE & CARE


FF101W_FF102PL_User_Manual_12.04.20.pdf





TECHNICAL DRAWING (.dwg) FF101W_FF102PL_REF._FREEZER__A-C_2018_.dwg
