Summit | 21" Wide Built-In All-Refrigerator, ADA Compliant, Panel-Ready (ALR46BIF)



Flat rate shipping click HERE

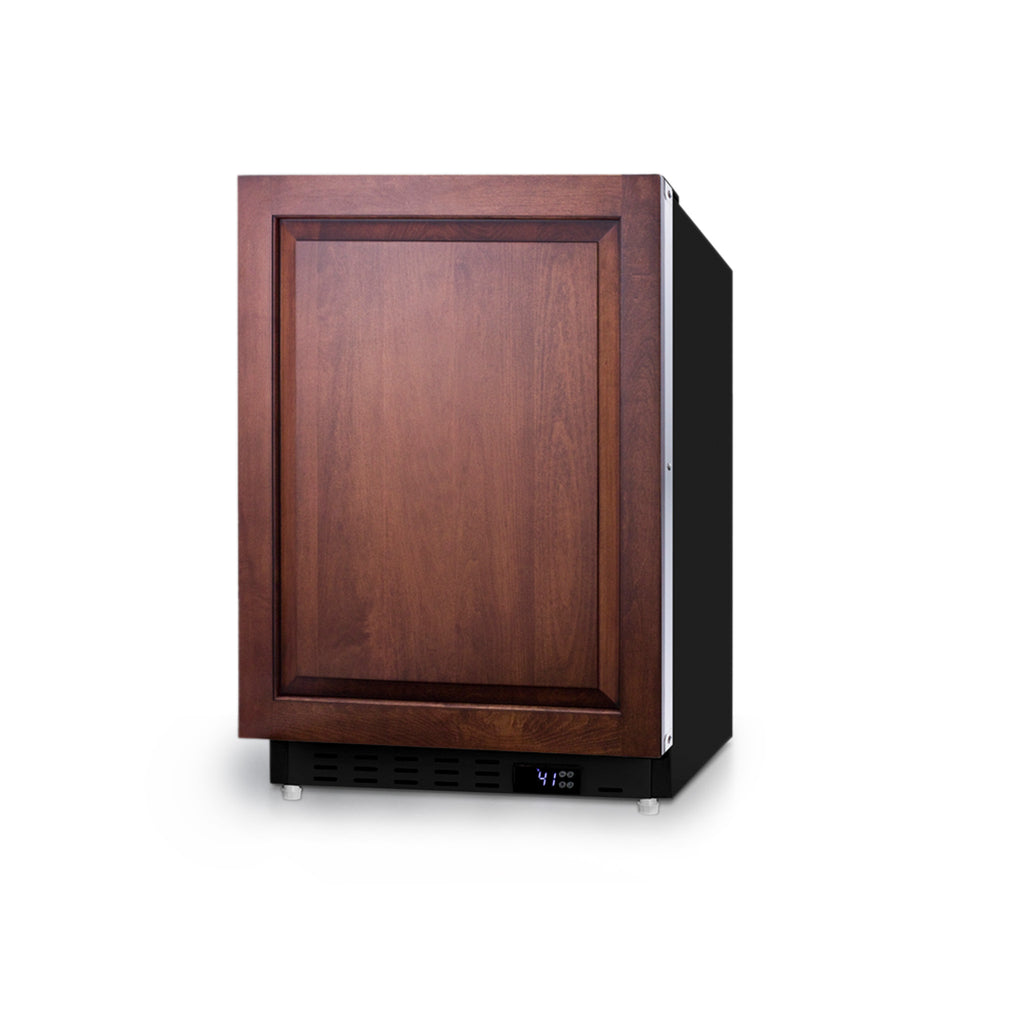

21" wide built-in all-refrigerator designed to fit under lower ADA compliant counters. Panel-ready design allows a custom look. Panels not included.
DESCRIPTION

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.The ALR47BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR47BIF features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALR47BIF is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ37BIF all-freezer. Additional choices in complete stainless steel and black cabinet styles are available.
FEATURES








































ADA compliant design
32" height allows easy installation under lower ADA compliant counters


Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter


Panel-ready door
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles


Adjustable thermostat
Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius


Door shelves
Three removable door racks for additional storage of larger items


Adjustable glass shelves
Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior


Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer


3" thick door
Improved insulation for an efficient performance


Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint






Open door alarm
Audible alarm will sound if the door is left ajar for over a minute


Sealed back
Space-saving design that offers easier cleanability


Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth


Automatic defrost
Reduced user maintenance with an auto defrost system


Interior light
Front-located LED light ensures entire interior is lit when door opens


Matching all-freezer
This unit can be paired with the ALFZ37BIF all-freezer for a complete set


Fully finished black cabinet
Allows the unit to be used freestanding


100% CFC free
Environmentally friendly design without ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations







SPECIFICATIONS












































Overview



Height of Cabinet
31.75" (81 cm)


Height to Hinge Cap
32.0" (81 cm)


Width
20.25" (51 cm)


Depth
23.0" (58 cm)


Depth with Handle
24.38" (62 cm)


Depth with door at 90°
40.25" (102 cm)


Capacity
3.53 cu.ft. (100 L)


Defrost Type
Automatic


Door
Panel-Ready


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Energy Usage/Year
251.0kWh/year


Amps
1.1


Voltage/Frequency
115 V AC/60 Hz


Weight
75.0 lbs. (34 kg)


Shipping Weight
90.0 lbs. (41 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101076522








Refrigerator Features



Door Swing
RHD


Reversible
Factory Reversible


Crisper Qty
1


Crisper Finish
Transparent


Crisper Cover
Glass


Shelf Type
Glass


Shelf Qty
3


Full Door Shelf Qty
3


Adjustable Shelves
Yes


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.99oz.


High Side PSI
180.0


Low Side PSI
80.0


Level Legs Qty
2


Wheel Qty
2


Interior Light
Yes


Temperature Range
35 to 46°F


Sound Level
33.2 dB



















Dimensions



Interior Height
23.5" (60 cm)


Interior Width
16.25" (41 cm)


Interior Depth
17.0" (43 cm)


Compressor Step Height
6.25" (16 cm)


Compressor Step Width
16.25" (41 cm)


Compressor Step Depth
6.0" (15 cm)



























DOWNLOADS




BROCHURE w/ DRAWINGS ALR47BIF.pdf





USE & CARE










  ALR_ALRF_ALFZ_Series_User_Manual_10.2021.pdf


IF_Instructions_-_General.pdf
