Description
Flat rate shipping click HERE

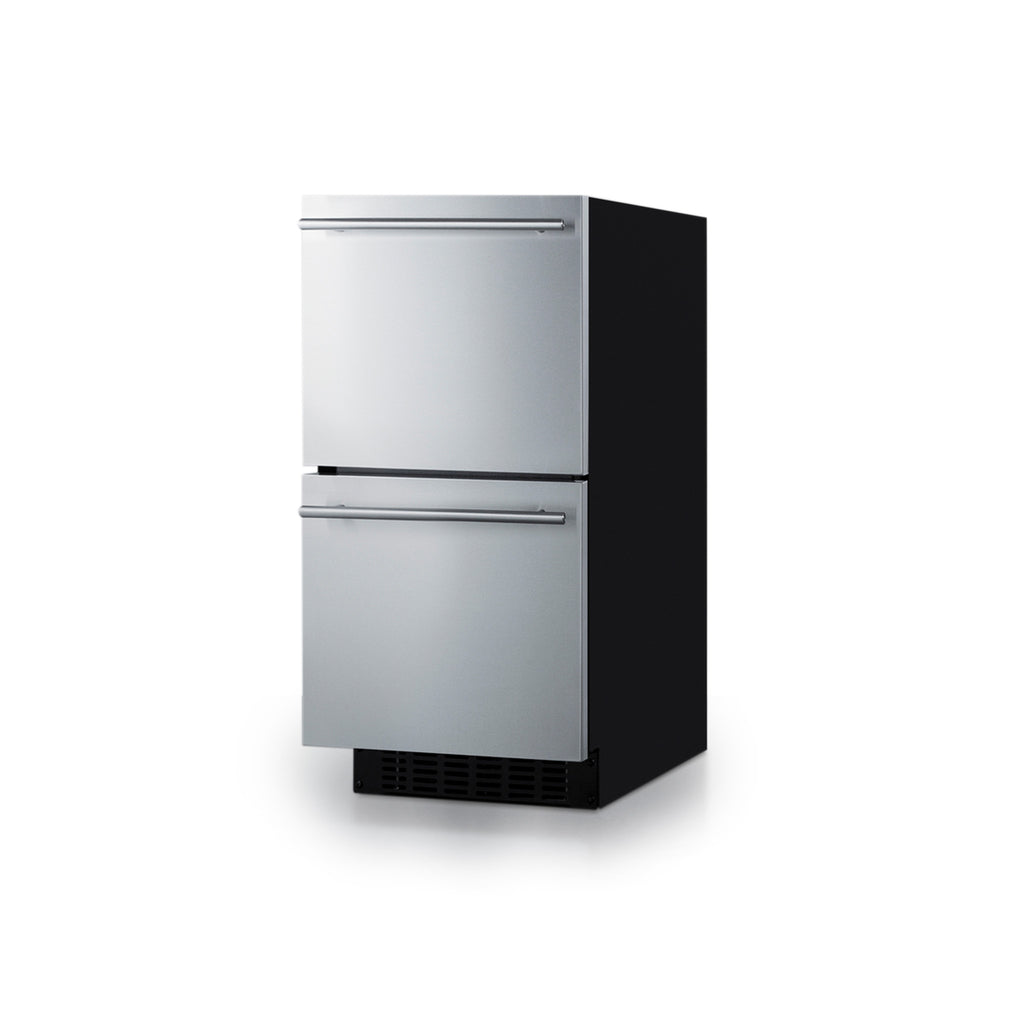

15" wide built-in, 2-drawer, ADA compliant all-refrigerator. Shallow 18" depth is perfect for islands, wet bars, or other spaces with limited footprint.
KEY FEATURES
Frost Free
Built-in Capable
Stainless Steel, Panel-Ready Drawers
Digital Thermostat
LED Lighting
CARB Compliant
ADA Compliant
32.0" H x 14.75" W x 17.88" D
DESCRIPTION
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDR1524 is a 15" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 14.75" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for more versatile storage. White LED lighting makes it easy to view stored contents in the top drawer. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ASDR1524 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.
FEATURES
2-Drawer All-Refrigerator
15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers
Less than 18" deep
Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters
Adjustable height
Levelling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings
Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look
Panel-ready drawer fronts
Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry
Professional handles
Stainless steel handles add style to any setting
Frost-free
No-frost operation for minimal user maintenance
Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Interior lighting
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Drawer dividers
Two adjustable dividers provide flexibility when organizing the interiors
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Child lock
Disables digital controls after two minutes of activity for added safety
Temperature memory function
Unit will restore the most recent temperature settings after losing power
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
Fan-forced cooling
Provides for efficient, even cooling of the entire unit
Temperature memory
Unit will retain temperature settings after losing power
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
Height of Cabinet
32.0" (81 cm)
Width
14.75" (37 cm)
Depth
17.88" (45 cm)
Depth with Handle
19.0" (48 cm)
Depth with door at 90°
29.63" (75 cm)
Capacity
1.7 cu.ft. (48 L)
Defrost Type
Frost-Free
Door
Stainless Steel/Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Energy Usage/Year
235.0kWh/year
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
65.0 lbs. (29 kg)
Shipping Weight
85.0 lbs. (39 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101079530
Refrigerator Features
Sabbath Mode
Yes
Door Swing
Drawer
Height Adjustable
Yes
Thermostat Type
Digital
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
0.64oz.
High Side PSI
270.0
Low Side PSI
105.0
Level Legs Qty
4
Interior Light
Yes
Interior Drawers
Yes
Interior Drawers Qty
2
Temperature Range
36 to 43ºF
Sound Level
32.9 dB
Drawer Dimensions
Interior Height 1
8.0" (20 cm)
Interior Width 1
9.0" (23 cm)
Interior Depth 1
11.25" (29 cm)
Interior Height 2
8.0" (20 cm)
Interior Width 2
9.0" (23 cm)
Interior Depth 2
11.25" (29 cm)
Dimensions
Compressor Step Height
3.75" (10 cm)
Compressor Step Width
9.0" (23 cm)
Compressor Step Depth
4.75" (12 cm)
DOWNLOADS
BROCHURE w/ DRAWINGS ASDR1524.pdf
TECHNICAL DRAWING (.dwg) ASDR1524.dwg
ASSEMBLY DRAWING ASDR1524-Assembly.pdf
USE & CARE
Drawer_Refrigeration_ASDR1524_ASDR1554_ASDR2444_ADR241_ADRF244_ADFD243_FF642D_SCFF532D_SPFF51OS2D_SPR627OS2D_Use_and_Care_7-13-2022.pdf
