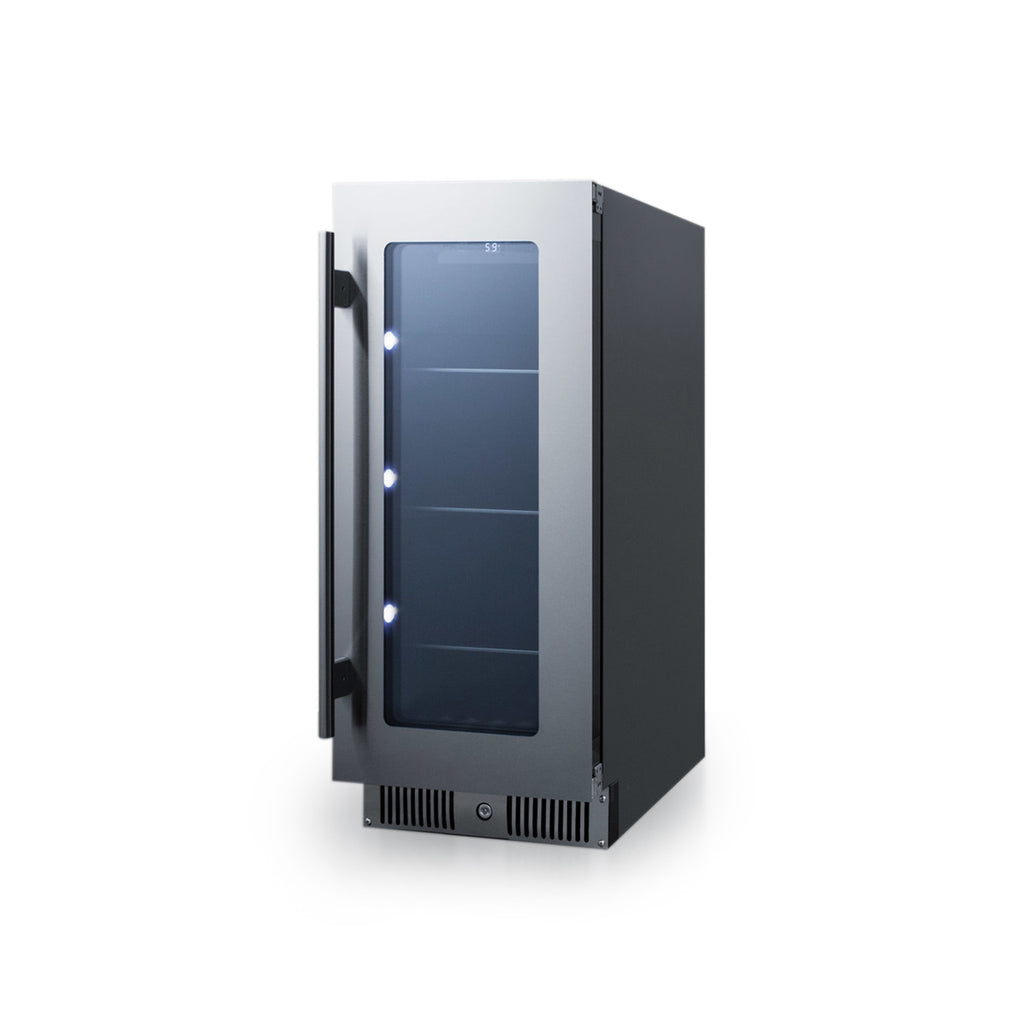

Summit | 15" Built-In Beverage Centre (CL156BV)



Flat rate shipping click HERE


15" wide for an easy fit in home kitchens and wet bars
KEY FEATURES


Auto Defrost
Built-in Capable

Digital Thermostat
LED Lighting

Temperature Alarm
34.0" H x 14.88" W x 23.38" D


DESCRIPTION



The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.The CL156BV is a 15" wide beverage center designed for residential or commercial use. Its front-breathing design allows for built-in installation, while the fully finished jet black cabinet allows freestanding use. The glass door features an attractive seamless stainless steel trim and pro-style handle, while a designer kickplate completes the look and a front lock offers convenient security. This unit has a right-hand door swing. For a left hand version, see the CL156BVLHD. This unit can be paired with the matching CL155WC/LHD wine cellar to create a side-by-side set. Inside, the CL156BV includes three adjustable slide-out glass shelves to accommodate a variety of sizes. Automatic defrost operation offers low-maintenance operation, with fan-forced cooling to ensure even temperature distribution from top to bottom. The interior digital control panel includes a digital thermostat for easy and intuitive operation, with a readout in Celsius or Fahrenheit. White LED lighting helps to attractively illuminate the black interior for an attractive view to store and display your items. Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Two level legs help to balance the unit on uneven surfaces.The CL156BV is ETL-S listed to NSF-7 commercial standards and meets UL-471. It also complies with current Department of Energy standards for residential use. With its convenient size and user-friendly features, this is the perfect choice for residential or commercial settings looking for versatile storage under the counter. Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.




FEATURES


















Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments


Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter


Glass door
Provides a fully display of stored contents


Seamless stainless steel door frame
Single-piece door trim offers a more deluxe look


Factory installed lock
Keyed lock for a secure interior (2 keys included)


Professional handle
Stainless steel look for added elegance


Digital display
Electronic controls for precise temperature management


Digital thermostat
Temperature readout can be shown in Celsius or Fahrenheit


Recessed LED lighting
Elegant lighting with a convenient on/off switch on the control panel


Adjustable glass shelves
Three slide-out shelves offer attractive and convenient storage for beverages


Automatic defrost
No-frost operation for minimum user maintenance






Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Open door alarm
Audible alarm will sound if the door is left open longer than one minute\


High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range


Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss


Sealed back
Space-saving design that offers easier cleanability


Fully finished black cabinet
Allows the unit to be used freestanding


Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours


Right-hand door swing
This unit comes with a right-hand door swing. (Note: the door is not user reversible; for a left hand version, see the CL156BVLHD)


Anti-tip bracket
Bracket (included) helps prevent tipping for added safety


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations







SPECIFICATIONS


























Overview



Height of Cabinet
34.0" (86 cm)


Width
14.88" (38 cm)


Depth
23.38" (59 cm)


Depth with door at 90°
38.38" (97 cm)


Capacity
2.8 cu.ft. (79 L)


Defrost Type
Automatic


Door
Glass/SS


Cabinet
Black


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Energy Usage/Year
280.0kWh/year


Amps
1.0


Voltage/Frequency
115 V AC/60 Hz


Weight
72.0 lbs. (33 kg)


Shipping Weight
100.0 lbs. (45 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101058542












Refrigerator Features



Sabbath Mode
Yes


Door Swing
RHD


Reversible
No


Shelf Type
Glass


Shelf Qty
3


Thermostat Type
Digital


Fan Type
Interior


Refrigerant Type
R600a


Refrigerant Amount
0.84oz.


High Side PSI
270.0


Low Side PSI
105.0


Level Legs Qty
2


Interior Light
Yes


Temperature Range
36-43°F



















Dimensions



Interior Height
23.0" (58 cm)


Interior Width
12.25" (31 cm)


Interior Depth
17.25" (44 cm)


Compressor Step Height
3.25" (8 cm)


Compressor Step Width
12.25" (31 cm)


Compressor Step Depth
5.25" (13 cm)






















DOWNLOADS














BROCHURE w/ DRAWINGS

CL156BV.pdf







USE & CARE


CL156BV_CL186BV_CL24BY_User_Manual_07.29.20__2_.pdf






MSDS INFORMATIONR600a_K.pdf
