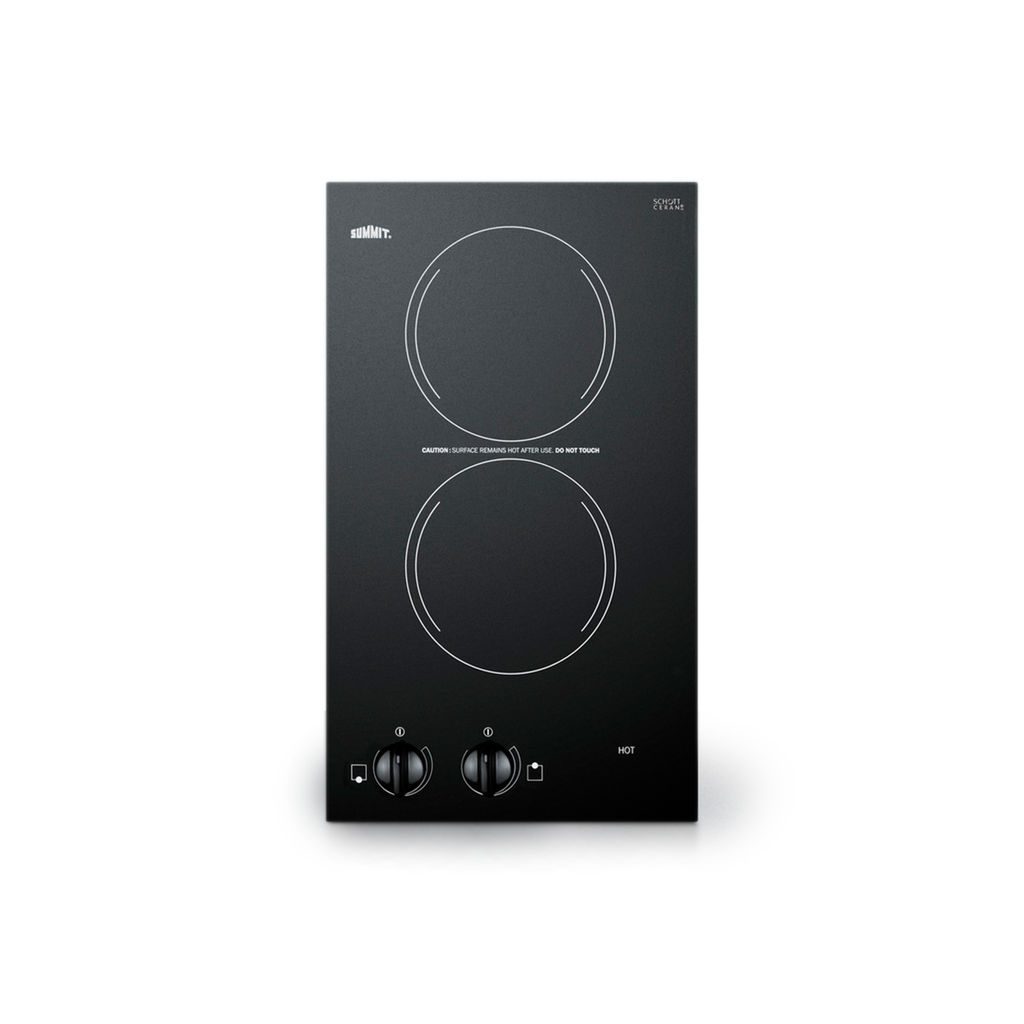

Summit | 12" Wide 230V 2-Burner Radiant Cooktop (CR2220B)

Made in Europe with a smooth ceramic glass surface for easy cleanup
4.38" H x 11.88" W x 19.75" D(11cm H x 30cm W x 50cm D)
FEATURES














2-burner design
Two evenly sized 6" elements for easy cooking


Powerful heating
Both elements can operate at 1200W to help cover most of your heating needs


Easy cleanup
Smooth glass surface with no cracks or crevices allows you to wipe down easily


SCHOTT CERAN® glass surface
Durable glass in an attractive jet black finish to suit any setting


Push-to-turn knobs
Knobs require a gentle push to help prevent cooking accidents

Color-matched knobs
Jet black knobs complement the glass to offer a sleek, modern look





Residual heat indicator light
Indicates when surface is still hot to touch

Indicator lights
Individual indicator lights show which burner is in use

Designed for built-in installation
Fits counter cutout sizes that are 10 3/4" wide by 19" deep

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

208-240V
Requires professional hardwired installation (cord not included)












DESCRIPTION

Summit's selection of European radiant cooktops brings reliable heating to a variety of slimmer living spaces, from hotel suites to apartment kitchens.
Model CR2220B is a 2-burner 208-240V radiant cooktop sized just under 12" wide to fit common 10 3/4" W x 19" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. The jet black glass is made by SCHOTT CERAN®, creating a durable, modern surface that offers easy cleanup and fast heating. Two 1200W radiant elements in a 6" diameter cover most cooking needs. The push-to-turn knobs are located upfront to comply with ADA guidelines for easier accessibility. A residual heat indicator light shows if the surface is still hot to touch.
With its easy fitting size and lasting durability, the CR2220B is the perfect cooktop for small homes, apartments, tiny houses, and other smaller kitchen spaces. For the same unit in a white finish, see the CR2220WHE. Additional choices are available for 115V connections, as well as in other burner configurations. Browse the full Summit cooking line to find your perfect fit.
NOTE: This unit is a direct replacement for Summit CR2220, with the same dimensions/specifications and an upgraded ceramic glass surface.
SPECIFICATIONS





Overview



Height of Cabinet
4.38" (11 cm)


Width
11.88" (30 cm)


Depth
19.75" (50 cm)


Cabinet
Black


US Electrical Safety
UL


Canadian Electrical Safety
ULC


Amps
10.0


Voltage/Frequency
230 V AC/60 Hz


Weight
14.0 lbs. (6 kg)


Parts & Labor Warranty
1 Year


UPC
761101080062



Electric Cooktop



Heating Type
Radiant


Surface
Glass


Element Type
Glasstop


Number of Elements
2


Controls
Dial


Countertop Cutout Height
5.0" (13 cm)


Countertop Cutout Width
10.75" (27 cm)


Countertop Cutout Depth
19.0" (48 cm)


Power Source
230V


Element #1 Size
6.0" (15 cm)


Element #1 Wattage
1200.0


Element #2 Size
6.0" (15 cm)


Element #2 Wattage
1200.0


Power Cord Included
No




DOWNLOADS


















BROCHURE w/ DRAWINGSCR2220B.pdf



TECHNICAL DRAWING (.dwg)CR2110B.dwg



ASSEMBLY DRAWINGCR2110B-Cutout.pdf



ASSEMBLY DRAWINGCR2110B-Assembly.pdf



REVIT MODELQF_Summit_CR2220B_2_Burner_Cooktop.rfa



USE & CARECR1115_2110_2220_3240_Manual_Revised_22817.pdf



OTHERHowToCleanYourGlassCooktop.pdf
