Penguin Chillers | 1/2 HP High Efficiency (HE) Water Chiller

Please contact us for a shipping quote.



DESCRIPTION







5,750 BTU/Hr
Titanium Heat Exchanger
1 Year Product Warranty
Proudly made in the USA

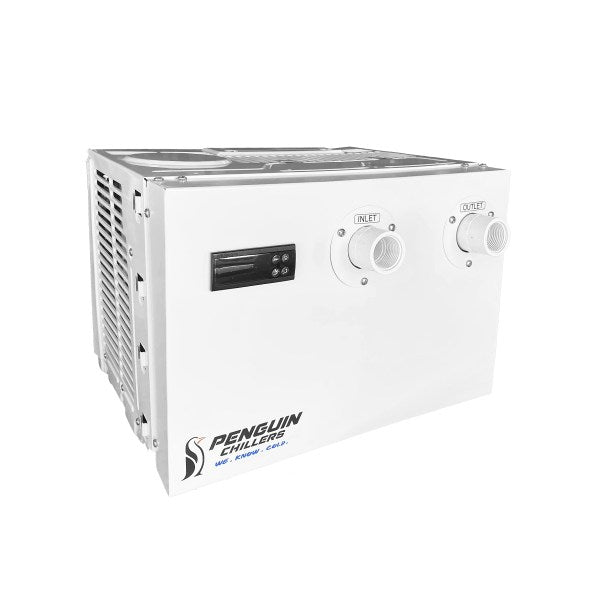

½ HP (HE) Water Chiller

5,750 BTU/hr
1″ NPT inlet/outlet ports (female threaded PVC)
Titanium Heat Exchanger = Reef Tank Safe
Recommended operating range ~40°F to ~100°F
56 dBA
6′ Power Cord
110 – 120 Volts / 450 Watts / 3.9 Amps
16.25”W x 14.75”D x 12”H
40 Pounds
1 Year Product Warranty
Proudly made in the USA


Our 1/2 HP HE Water Chiller comes with a titanium heat exchanger. A titanium heat exchanger keeps copper from coming into contact with your water. Because toxic levels of copper can build up in water being used for long periods of time, copper heat exchangers aren’t recommended for use in a closed loop aquarium setup. The use of titanium = Reef Tank Safe! Please note: Our standard line of Penguin Chillers are not intended for outdoor use. Additionally, please place any set-up using this chiller in area that can withstand wetness, moisture, and/or condensation.  Place set-up in area that can withstand wetness, moisture, and/or condensation.
Pump Recommendation

Pump: Danner Mag-drive 500gph – 1800gph. Other pumps may be acceptable, however they need to be rated for less than 10psi max pressure. If you’re using a different pool/spa pump or any other pump rated in horsepower please talk with our tech support first. There is typically a simple work around that allows our chillers to provide cooling to systems which operate at higher pressures. We would be more than happy to help you determine the best method of installation for your system. Be sure and visit our “Accessories” web page to view our selection of pumps and accessory packages available.

Controller Notes

Digital Controller: The controller constantly monitors your systems incoming water temperature, therefore, water flow is needed at all times in order for it to successfully read current temperatures. When your systems water temperature moves above your desired set point, the controller tells the compressor and fan to turn on and begin cooling the water. Once your desired set point temperature is reached, the compressor and fan will turn off.

HE Notes

High Efficiency: HE models utilize a larger titanium coil compared to the standard version. The larger coil offers more contact surface area and contact time to provide more cooling. Both models run the same compressor, which means their power draw is the same. The high efficiency model is providing more cooling without any extra power consumption.


Water Chiller Comparison Chart




HP


BTU/hr


Voltage / Amps /  Watts / Phase


DIMENSIONS


WEIGHT




½ HP


5,000 BTU/hr


110 – 120V / 3.9A / 450W / Single


 16.25”W x 14.75”D x 12”H


39 lbs




½ HP HE


5,750 BTU/hr


110 – 120V / 3.9A / 450W  / Single


 16.25”W x 14.75”D x 12”H


40 lbs




1 HP


10,000 BTU/hr


110 – 120V / 7.2A / 830W / Single


19.25”W x 19.75”D x 14.25”H


58 lbs




1 HP HE


11,500 BTU/hr


110 – 120V / 7.2A / 830W  / Single


19.25”W x 19.75”D x 14.25”H


60 lbs




1 ½ HP


15,000 BTU/hr


110 – 120V / 11A / 1,270W / Single


26.50”W x 23.75”D x 18”H


96 lbs




2 ½ HP

25,000 BTU/hr
208 – 240V / 14.7A / 3,200W / Single
 26.50”W x 25”D x 18.50”H

135 lbs
