OKM Fusion Professional Plus 3D Metal Detector with Live Scan Detection MPN:3937

Metal Detection and 3D Ground Scanner



The metal detector and 3D ground scanner Fusion supports treasure hunters, gold seekers, adventurers, and archaeologists to discover lost treasures, buried artifacts, hidden places, and other historical items.
The advanced version Professional Plus can be used in a vertical and horizontal orientation and supports graphical 3D measurements, acoustic magnetic field measurements, and instant live images.
The version Fusion Professional Plus is perfect for advanced users who need more operating features.


OKM Fusion Professional Plus Features:


Compact: Detector for vertical and horizontal orientation - supporting graphical 3D measurements, acoustic magnetic field measurements, and instant live images

Depth: Customers found objects to 21 m (69 ft) deep


Use Cases: Treasure hunting, cavity detection

Operating Modes: Ground Scan, Live Sound (Magnetometer), Live Stream

Detectable Objects: Treasure chests, cavities, tunnels




OKM Fusion Professional Plus Use Cases:

Archaeology
Treasure Hunting
Cavity Detection
Militaria Detection
Forensics
Agriculture
Public Services
Explosive Ordnance Disposal Services
OKM Search Services

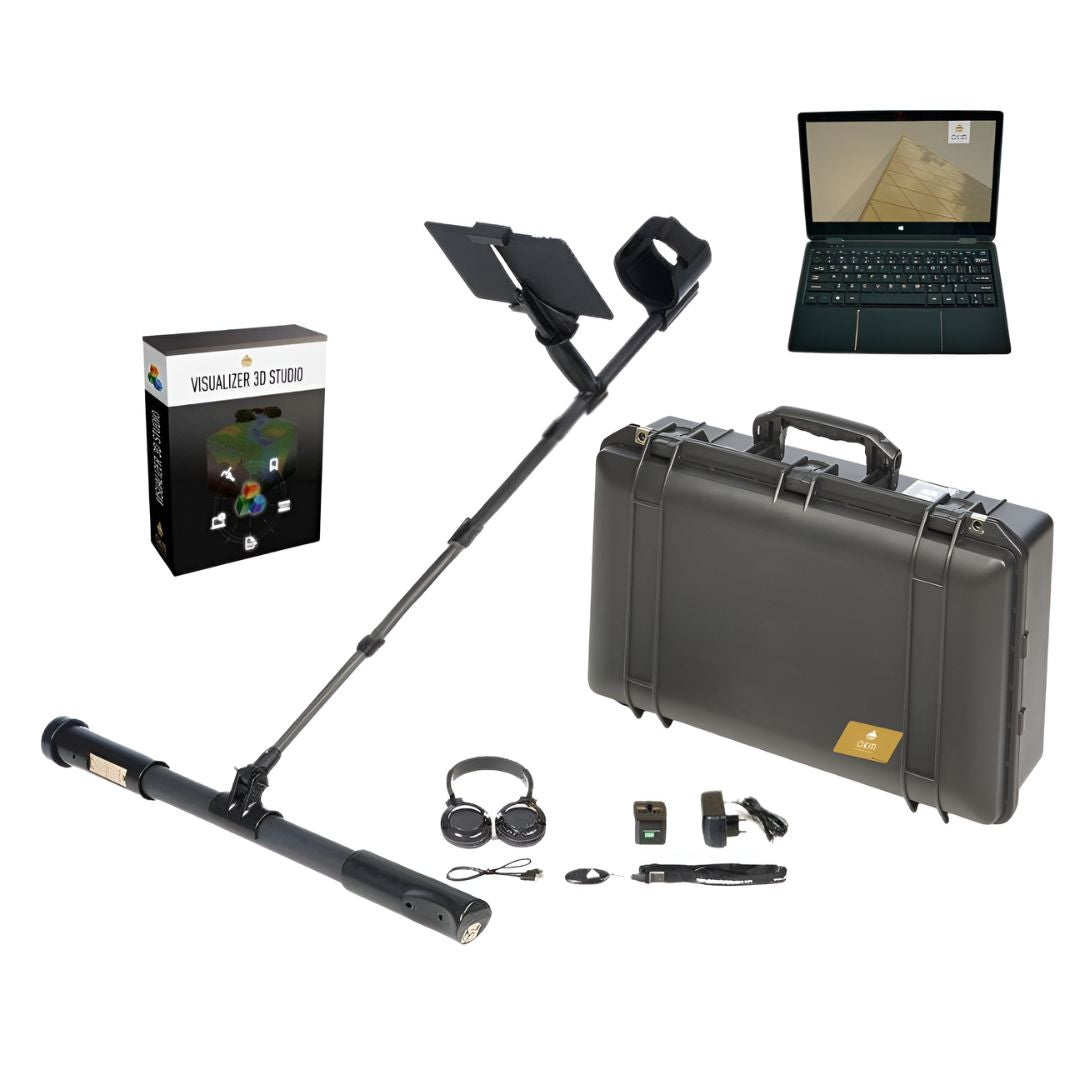

OKM Fusion Professional Plus Package Includes:

1x User's manual
1x Control unit
1x Software Visualizer 3D Studio Professional Edition
1x Waterproof and shock-resistant Pelican case
1x Windows Notebook
1x Notebook mount
1x Telescopic rod assembly
1x Bluetooth Headphones
1x Charger for control unit
1x Travel Adapter


OKM Fusion Variants:

OKM Fusion Ultra Light - Click Here

OKM Fusion Light - Click Here

OKM Fusion Professional - Click Here
OKM Fusion Professional Plus - Click Here
Windows Tablet PC - Click Here


Special Features of the OKM Professional Plus

3D Visualization
3D Ground Scan
SRIS Search Coil
Live Stream
GST / EMSR
Height Adjustment
Color Display / Touchscreen
Wireless Technology
Multilingual Operation
Rechargeable High-Capacity Battery


Operating The OKM Fusion Metal Detector
The advanced professional plus version can be used in a vertical and horizontal orientation and supports the following operating modes:



Ground ScanConduct a graphical 3d measurement for detailed analysis on a computer.

Live SoundProcess an acoustical magnetic field measurement to detect ferrous metals.

Live Scan (Multi-Sensor, Ultrasound)Process an instant live image while walking the scan field.



OKM Fusion Professional Plus: The Professional Plus version of OKM Fusion can be used in vertical (Live Sound, Ground Scan, Live Scan) and horizontal (Ground Scan, Live Scan) orientation.


Utilizing The SRIS Search Coil To Locate Shallow Metals
One of the new detection features is the SRIS search coil that can be used to locate short-range metallic objects. This coil can be activated individually by the operator while setting up the operating modes Live Sound, Ground Scan, and Live Scan (Ultrasound).

The SRIS search coil can be very useful to pinpoint targets while digging. It is easy to detect the general position of a buried object with the OKM 3D ground scanner and metal detector OKM Fusion.
OKM Fusion with SRIS search coil: Mounted at the end of OKM's Fusion is the SRIS search coil, that can be used as a pinpointer for small shallow targets.

When you start digging it can be really hard to exactly match the correct spots of hidden items afterward. By checking the excavated material with activated SRIS search coil you won’t miss any small object like:

wedding bands and engagement rings
earrings, brooches, bracelets, and necklace
coins, buttons, badges, and pins

3D Visualization Of Underground Treasures
While scanning an unknown area and recording the measure values, the Visualizer 3D Software can immediately analyze and visualize this information to display a color-coded 3d graphic of hidden objects and structures. Thus you will literally “see” all buried treasures, gold objects, archaeological artifacts, and any other hidden objects before digging.
Additionally, you can determine the size, position, and depth of your detected items. So you know where to dig and how deep to dig to find your objects of interest.
3D Ground Scan: With a 3d ground scan you will conduct a complete measurement and scan a specific area to see buried objects.
Live Scan (Ultrasound): In this special view of the Live Scan operating mode you are able to see a symbolized ultrasound image of hidden objects.
The OKM Fusion metal detector and 3D ground scanner is available in two versions: Professional (without telescopic rod assembly) and Professional Plus (all accessories and complete functionality).
Specifications of the OKM Professional Plus
Computer Minimum Requirements


CD-ROM drive: minimum 4x

Interface (Data transmission): USB

Free disk space: minimum 50 MB

Working memory (RAM): minimum of 256 MB

Graphics card: minimum 128 MB, OpenGL-compatible

Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

Data Transmission


Technology: Bluetooth

Frequency: 2.4 – 2.4835 GHz

Maximum Transfer Rate: 1 Mbps

Receiving Sensitivity: –85 dBm

Maximum Range: approx. 10 m

Control Unit


Dimensions (H x W x D): 950 mm, 65 / 80 mm

Weight: approx. 1 kg

Processor / Main CPU: Cortex M3, 32 MHz

Processor / Slave CPU: Cortex M0, 24 MHz

Sample rate: 1024 values / second

Measurement resolution: 16 bit

Operating temperature: –10°C – 60°C

Storage temperature: –20°C – 70°C

Audio: Bluetooth Headphones

Waterproof: No

Sensor technology / Coil technology: SCMI-15-D / SRIS-18K

Operating time: approx. 3 hours (delivered power supply, full charged battery, 25°C)

Air humidity: 5% – 75%

Protection Type: IP40

Input (for Charger): 19 V DC / 3.16 A

The technical data are average values. Minor deviations are possible during operation.
