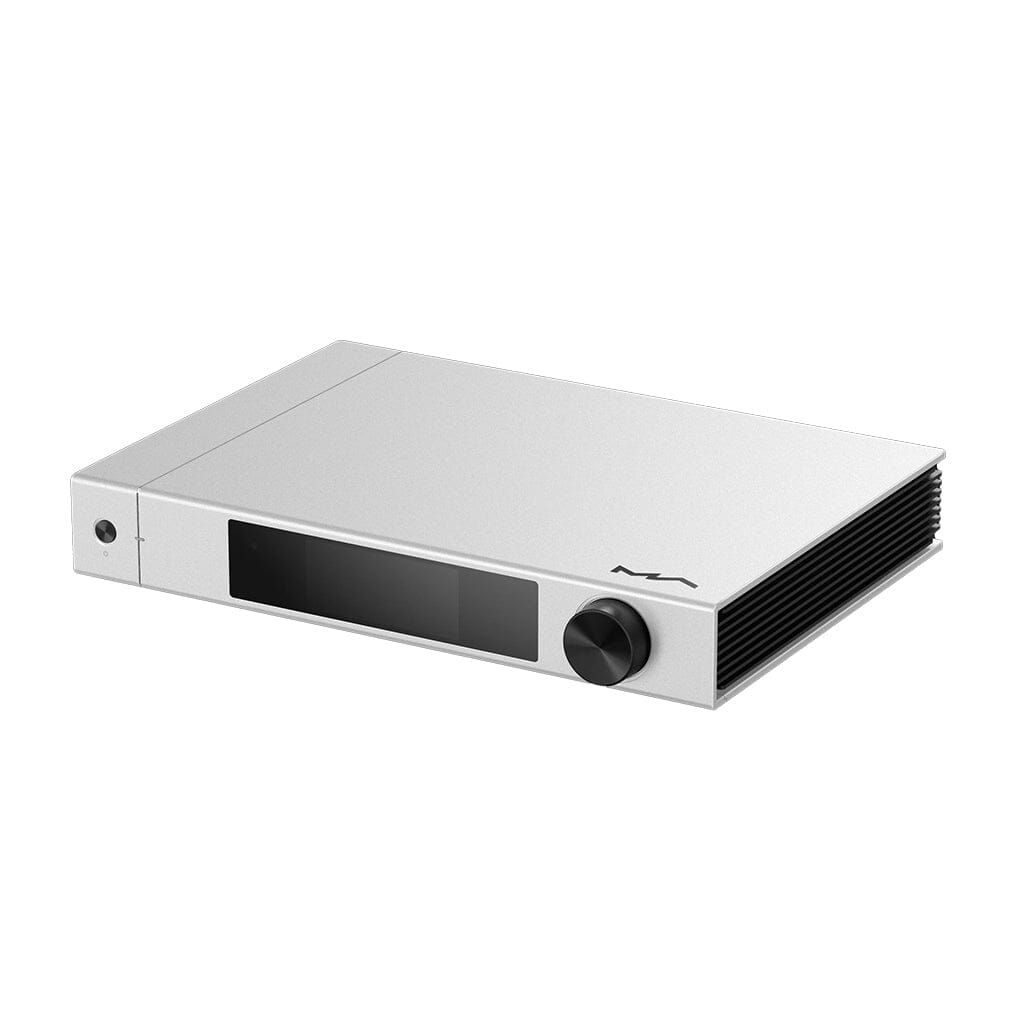

Matrix Audio Element X2 Music Streamer

Premium Music Streaming Redefined
Experience music streaming at its absolute best with the Matrix Audio Element X2 Music Streamer. This flagship device offers a sophisticated blend of advanced technology and sleek aesthetics, designed to enhance your audio setup dramatically. With support for multiple input formats, including Toslink, USB, X-SPDIF, DSD, and Spotify Connect, the Element X2 is the definitive hub for audiophile-level streaming.
Exceptional Audio Fidelity with Dual ESS DAC Chips
The Element X2 harnesses the power of dual ESS flagship DAC chips, delivering extraordinary sonic precision and clarity. Whether you're listening to high-resolution PCM files up to 32-bit/768kHz, DSD512, or MQA streams, this streamer ensures your audio remains pure, detailed, and lifelike. Thanks to Matrix Audio’s meticulous engineering, every note is reproduced with accuracy and nuance.
Intuitive Touchscreen and Enhanced Interface
Navigate your music collection effortlessly with the Element X2’s vibrant, 3.46-inch full-color LCD touchscreen. Displaying comprehensive track, artist, and album information, the interface allows intuitive navigation through your favorite streaming platforms, local libraries, and settings. Touch-sensitive keys integrated into the sleek glass panel further enhance ease of use, creating a streamlined interaction experience.
Versatile Connectivity and Analog Flexibility
Bridging traditional and digital audio systems, the Element X2 offers extensive connectivity options. In addition to a range of digital inputs, it includes analog input ports compatible with turntables and CD players, allowing seamless integration of your analog gear. With configurable input gain levels, it effortlessly adapts to diverse audio devices, ensuring compatibility with your entire audio ecosystem.
High-Performance Balanced Amplification
Matrix Audio incorporates a fully-balanced headphone amplifier into the Element X2, utilizing eight independent amplification units. This sophisticated design significantly boosts drive current and output power, minimizing distortion and noise while enhancing audio dynamics. Whether pairing with high-impedance headphones or sensitive IEMs, the Element X2 provides robust and precise amplification tailored for superior listening experiences.
Advanced Clocking and Isolation Technology
The Element X2 utilizes the ultra-low phase noise Crystek CCHD-950 femtosecond clock, ensuring incredibly precise timing and jitter-free audio playback. Its isolated circuit design, employing independent power supplies for digital and analog sections, effectively eliminates electrical interference. This careful engineering results in pristine sound quality, revealing the finest musical details without background noise.
Seamless Control via MA Remote App
Manage your music effortlessly with the MA Remote App, available for both iOS and Android. The app centralizes control of local libraries, online streaming platforms such as TIDAL and Qobuz, internet radio stations, and device settings. Additionally, the intuitive app interface facilitates firmware updates and advanced configuration, placing complete control of your Element X2 at your fingertips.
Integrated HDMI ARC for Enhanced Multimedia
Enhance your multimedia setup with the Element X2’s HDMI ARC capability. Easily connect your TV or projector to route high-quality digital audio directly into your audio system. Supporting HDMI CEC, the Element X2 integrates seamlessly into your entertainment environment, delivering improved audio quality for all your visual content.
What's In the Box?

Element X2 Music Streamer
RM4 Remote Control
Power Cable
Quick Start Guide
Warranty Card

Technical Specifications



Feature
Details


Hardware Platform
CPU: NXP i.MX 6Quad 4x Cortex-A9 @1.2 GHz


D/A Chip
ES9038PRO


Clock Source
Crystek CCHD-950


Digital Input - Coaxial & Optical
PCM 16-24Bit / 44.1kHz - 192kHz, DSD 2.8MHz (DoP)


Digital Input - IIS LVDS
PCM 16-32Bit / 44.1kHz - 768kHz, DSD 2.8MHz - 22.4MHz (Native)


Digital Input - USB Audio
PCM 16-24Bit / 44.1kHz - 768kHz, MQA, DSD 2.8MHz - 22.4MHz (Native)


Digital Input - HDMI ARC
PCM 16-24Bit / 44.1kHz - 192kHz


AUX Input - RCA
SNR: >-106dB, THD+N: <0.0025%, Frequency Response: 20Hz-20kHz ±0.07dB


Line Output - XLR
SNR: >-131dB, THD+N: <0.00012%, Output Level: 4.5VRMS@0dB


Line Output - RCA
SNR: >-125dB, THD+N: <0.00012%, Output Level: 2.2VRMS@0dB


Headphone Output - 4.4 mm Balanced
SNR: >-119dB, THD+N: <0.00055%, Output Power: 2600mW@33Ω


Headphone Output - 6.35 mm Unbalanced
SNR: >-116dB, THD+N: <0.00055%, Output Power: 1600mW@33Ω


Network - LAN
10/100/1000 Mbps


Network - WLAN
2.4 GHz / 5 GHz


USB Port
5V/1A power, supports FAT, FAT32, exFAT, NTFS


Trigger - In
DC 6-12V<10mA


Trigger - Out
DC 12V/50mA MAX


MA Player - Controller App
MA Remote App


Local Playback Formats
MP3, WMA, WAV, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE


PCM Sampling Rate
PCM 16-24Bit / 44.1kHz - 768kHz, MQA


DSD Sampling Rate
DSD 2.8MHz - 22.4MHz


Streaming Services
AirPlay 2, DLNA/UPnP, TIDAL Connect, Spotify Connect, vTuner


Power Voltage
AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz


Standby Power Consumption
< 5W


Maximum Power Consumption
< 50W


Weight
4 kg (8.82 pounds)


Dimensions (W x D x H)
340 mm x 259 mm x 58 mm (13.39” x 10.20” x 2.28”)


Accessories
RM4 remote control, Power cable, Quick start guide, Warranty card
