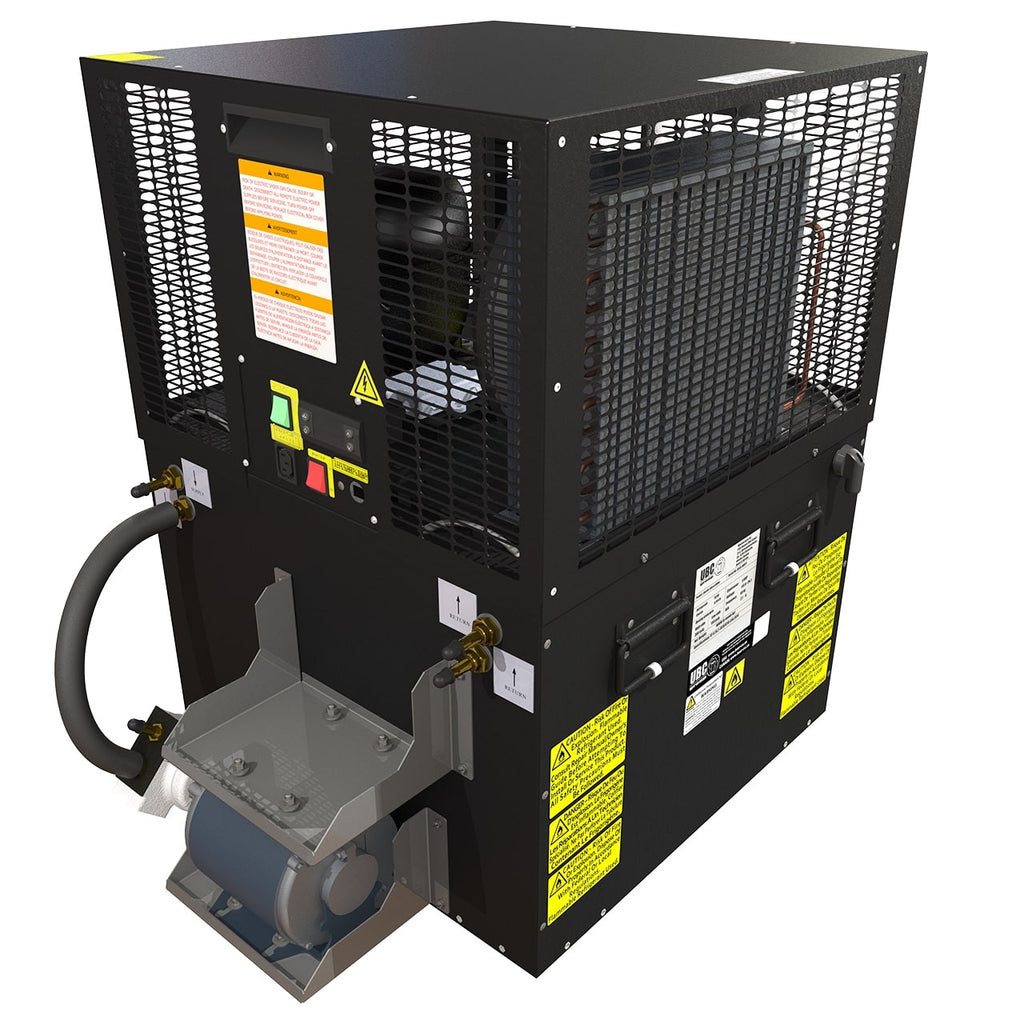

Glycol Chiller | ChillPro 5500 with Vane Pump (5500 BTUs - 450' Run)

This top-of-the-line glycol chiller is the perfect solution for beer pubs, restaurants, or stadiums looking to optimize their long-draw draft beer dispensing systems. It features a ½ horsepower (HP) compressor and a digital thermostat for easy temperature adjustment. The impressive trunkline reaches up to 450 feet, far exceeding the needs of most medium and large-sized bars.
Another great thing about this glycol chiller system is that it gives you greater mobility and freedom deciding where to place a dispensing unit in your bar. You can have your beer stored in a walk-in cooler as far as 450 feet away from the place where it is actually dispensed.
Main Benefits of Glycol Flash Chillers

Easy to install and use - no prior refrigeration skills required
Low service and maintenance costs
No leaking of refrigerants
Temperature can be regulated on a thermostat
Recommended for long-draw commercial draft beer systems

Product Highlights

450 ft range
18-gal glycol tank capacity
Digital thermostat
Optional additional pump 100 gal/hr
Optional 6’’ legs
Procon pump


ChillPro 5500 Glycol Beer Chiller Specifications:



Name
ChillPro 5500




Maximum Distance, ft
450'


Capacity, BTU/hr evap 20f
5500


Glycol Tank Capacity, gal
18


Dedicated Circuit, amp
20


Compressor Power, hp
1/2


Pump Type
Vane with 1/3 hp motor


Optional Additional Pump
100gal/hr


Thermostat
Digital


Refrigerant
R134A


Legs (optional)
6"


Dimensions WxDxH, in
28x23x30


Weight Gross / Net, lbs
149/141





Important Installation Information:



To qualify for product return and/or warranty coverage, this item must be installed by a qualified installer.

Qualified Installer: A licensed professional who charges a fee for their services and holds a valid business license, contractor's license, or resale permit.

Examples of Qualified Installers: Electricians, general contractors, and heating and air conditioning specialists.
