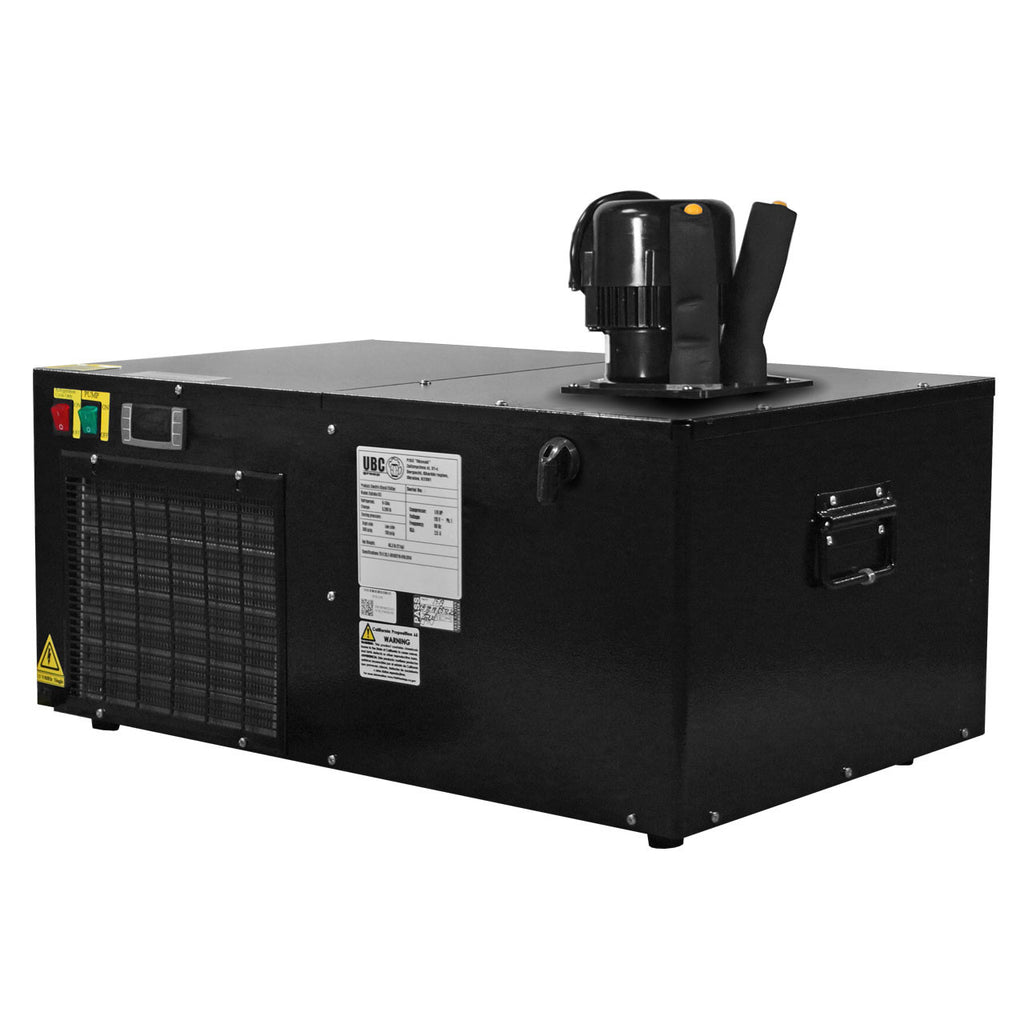

Glycol Chiller | ChillPro 3200H with Agitator Pump (3200 BTUs - 75' Run)

This glycol power pack draft beer chiller is a great solution for long-draw systems in bars, restaurants, stadiums and outdoor events. ChillPro 3200H glycol chiller features a 5-gal glycol tank, 3/8 hp compressor, and digital thermostat allowing you to regulate the temperature inside the glycol reservoir.
How does this unit work? Inside the chiller, there is a bath of propylene glycol (or “glycol” for short). The cooled liquid from this bath is pumped continuously through a looped circuit of tubing (trunkline) connected to the glycol chiller. The cooling effect is achieved when the product line (which is a part of the trunkline) comes in contact with the glycol line.
Main Benefits of Flash Chillers

Easy to install and use - to prior refrigeration skills required
Low service and maintenance costs
No leaking of refrigerants
Temperature can be regulated on a digital thermostat
Can be used as pre-chiller for beer, juice or other soft drinks

Product Highlights

75 ft maximum distance
5-gal glycol tank capacity
Optional 6’’ legs
Gross weight 103 lbs

CP-3200H-VP glycol power pack draft beer chiller specifications



Name
ChillPro 3200H




Maximum Distance, ft
75'


Capacity, BTU/hr evap 20f
3200


Glycol Tank Capacity, gal
5.8


Dedicated Circuit, amp
15


Compressor Power, hp
3/8


Pump Type
Vertical


Pump
4 GPH


Thermostat
Digital


Refrigerant
R134A


Legs (optional)
6"


Dimensions WxDxH, in
29.7x18.5x18.1


Weight Gross / Net, lbs
93/82



Important Installation Information:

To qualify for product return and/or warranty coverage, this item must be installed by a qualified installer.

Qualified Installer: A licensed professional who charges a fee for their services and holds a valid business license, contractor's license, or resale permit.

Examples of Qualified Installers: Electricians, general contractors, and heating and air conditioning specialists.
