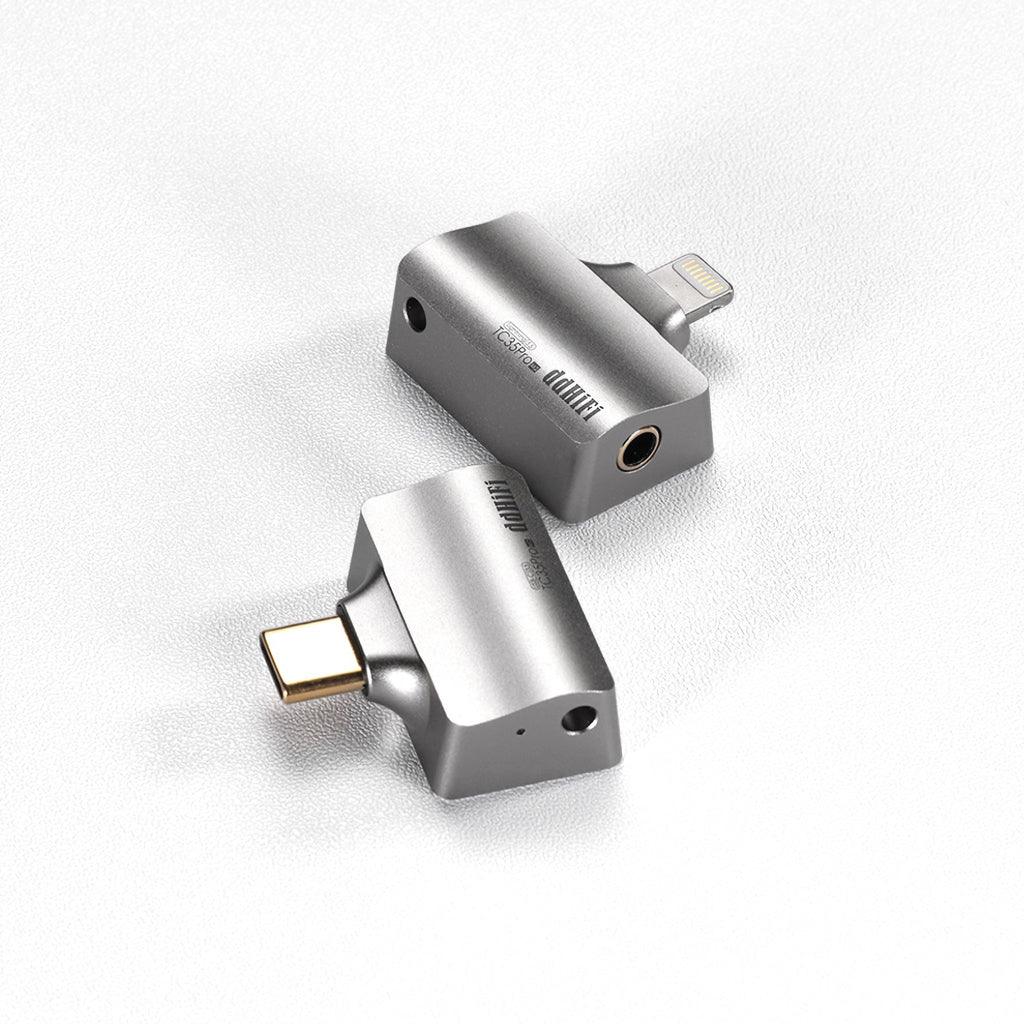

ddHiFi TC35Pro Mountain2 3.5mm Gen2 DAC Dongle | Lightning or USB-C

ddHiFi's 2nd Generation 3.5mm Single-ended DAC Dongle Brings Hi-Fi Music on your iPhone, iPad, Android, or other USB-C Source

Equipped with dedicated, separate CS43131 DAC and ES9603Q Amp chips for increased output power
Pro-grade, aluminum alloy titanium-colored shell
Pro-level build and quality, with helpful indicator LED and leather lanyard
Also available in 4.4mm Balanced termination here



Comfortable Tuning
Although the TC35Pro M2 features a 3.5mm single-ended output, the overall sound tuning style favors a comfortable atmosphere in order to cater to pop lovers. According to ddHiFi's R&D, it requires less than 40% of the phone's volume when used with most earbuds.
Dedicated DAC and Amp Chips
The TC35Pro M2 is equipped with a Cirrus Logic CS43131 for its decoding chip and ES9603Q for independent amplifier chip, resulting in a substantial increase in output power compared to the previous generation, enough to drive over-ear headphones.

Pro-level Craftsmanship and Thoughtful Features
The TC35Pro M2 features an integrally formed aluminum alloy shell, and the wavy surface reflects the delicacy of the new PRO-series titanium color.
It also comes with a leather lanyard that's not only a good decoration, but also allows you to easily carry the device and avoid losing it.
The TC35Pro's helpful indicator light keeps you alert of your current track's output quality and type:


Blue: PCM output

Green: native DSD decoding output


Specifications


Connection options: USB-C or Lightning

Socket: 3.5mm stereo

DAC: CS43131

Amplifier Chip: ES9603Q

Output power: 65mW+65mW (32Ω load)

SNR: > 122dB (A-wt)

Dynamic range: > 120dB (A-wt)

THD+N: <0.0004% @1kHz

PCM decoding: Up to 32bit/384kHz

DSD decoding: Native DSD64/DSD128/DSD256

Status Indicator: Blue(PCM), Green(DSD)

Dimensions (excl. the plug): 29mm × 17mm × 10mm

Weight: About 8.5g
