Description

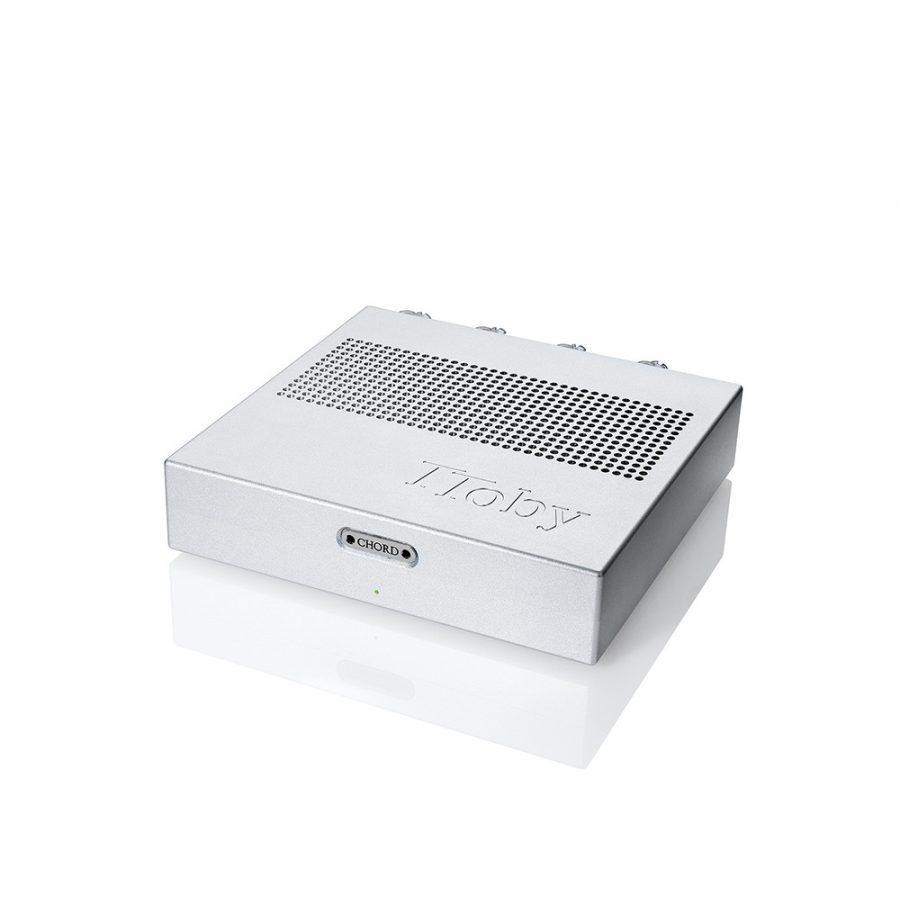

The Chord Toby Delivers Uncompromising Power and a Pure, Hi-Fi Audio Experience
Chord MOSFET construction
Fully balanced circuitry
HF switch mode power supply
Stereo unbalanced RCA inputs + balanced XLR inputs
From Chord Electronics
The TToby has been designed to complement our desktop DAC/headphone amplifier, the Hugo TT 2 and shares the same compact form factor as its stablemate. The combination of our 1M-tap digital upscaling device M Scaler, Hugo TT 2 and TToby provides a high-quality hi-fi system, with desktop dimensions and a space-saving footprint. Despite its size, the TToby sets new standards for small amplifiers and takes full advantage of Chord Electronics’ proprietary amplification technology and design know-how.
The addition of TToby, enables owners of the Hugo TT 2 to fully exploit the device as a ‘digital preamp’, effortlessly driving a wide variety of loudspeakers, large or small, in addition to the Hugo TT 2’s headphone prowess. The TToby is a 100-watt design, featuring both an unbalanced and balanced input, to take advantage of the Hugo TT 2’s XLR output.
TToby features two of our famous high-frequency power supplies and benefits from forced air-cooling through the aluminium casework by means of a sonically closed anechoic miniature multi-speed quadruple-fan plenum chamber, enabling the external design to be free of sharp heatsinks and, therefore, carry a stunning aesthetic. The M Scaler/Hugo TT 2/TToby combination offers both class-leading DAC and amplification technology via headphones and loudspeakers, giving complete flexibility within the demands of busy households.
Specifications
Output Power: 100w RMS per channel @ 0.016% distortion into 4Ω
Frequency Range: 5Hz – 100kHz +/- 0.5dB
Signal to Noise Ratio: Better than -83dB
Channel Separation: Better than 95dB
Input Impedance: 100kΩ Unbalanced/Balanced
Input Capacitance: <32pf
Output Inductance: 2.6μH
Slew Rate: 70v per μS 1kHz, 20v Square Wave
Gain: 30dB
Stability: Unconditional
Dimensions: 5.9cm (H) 23.5cm (W) 25.6cm (D)
Weight: 3.75kG
Chord MOSFET construction
Fully balanced circuitry
HF switch mode power supply
Stereo unbalanced RCA inputs + balanced XLR inputs
From Chord Electronics
The TToby has been designed to complement our desktop DAC/headphone amplifier, the Hugo TT 2 and shares the same compact form factor as its stablemate. The combination of our 1M-tap digital upscaling device M Scaler, Hugo TT 2 and TToby provides a high-quality hi-fi system, with desktop dimensions and a space-saving footprint. Despite its size, the TToby sets new standards for small amplifiers and takes full advantage of Chord Electronics’ proprietary amplification technology and design know-how.
The addition of TToby, enables owners of the Hugo TT 2 to fully exploit the device as a ‘digital preamp’, effortlessly driving a wide variety of loudspeakers, large or small, in addition to the Hugo TT 2’s headphone prowess. The TToby is a 100-watt design, featuring both an unbalanced and balanced input, to take advantage of the Hugo TT 2’s XLR output.
TToby features two of our famous high-frequency power supplies and benefits from forced air-cooling through the aluminium casework by means of a sonically closed anechoic miniature multi-speed quadruple-fan plenum chamber, enabling the external design to be free of sharp heatsinks and, therefore, carry a stunning aesthetic. The M Scaler/Hugo TT 2/TToby combination offers both class-leading DAC and amplification technology via headphones and loudspeakers, giving complete flexibility within the demands of busy households.
Specifications
Output Power: 100w RMS per channel @ 0.016% distortion into 4Ω
Frequency Range: 5Hz – 100kHz +/- 0.5dB
Signal to Noise Ratio: Better than -83dB
Channel Separation: Better than 95dB
Input Impedance: 100kΩ Unbalanced/Balanced
Input Capacitance: <32pf
Output Inductance: 2.6μH
Slew Rate: 70v per μS 1kHz, 20v Square Wave
Gain: 30dB
Stability: Unconditional
Dimensions: 5.9cm (H) 23.5cm (W) 25.6cm (D)
Weight: 3.75kG
SKU: TTOBYB
